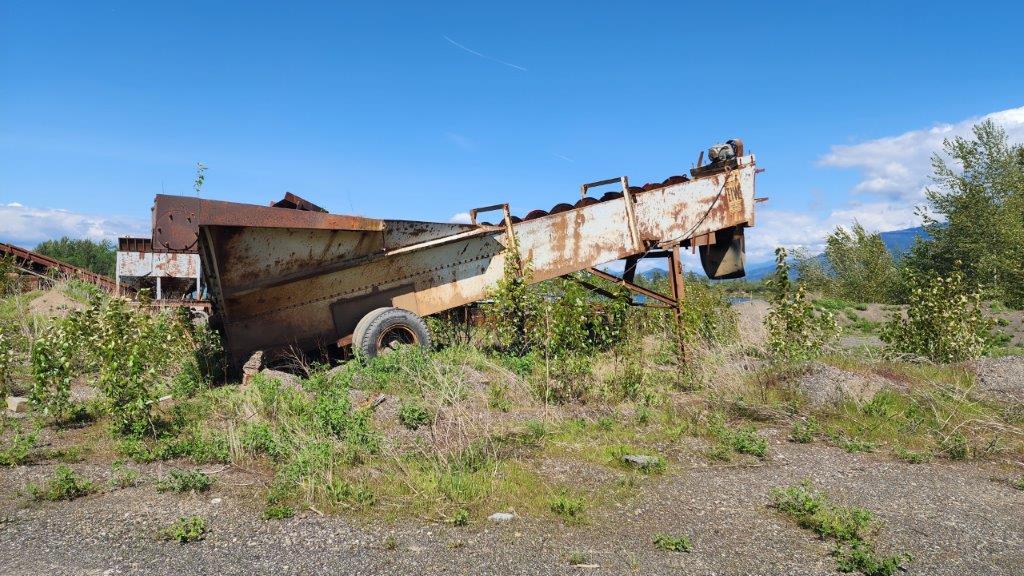

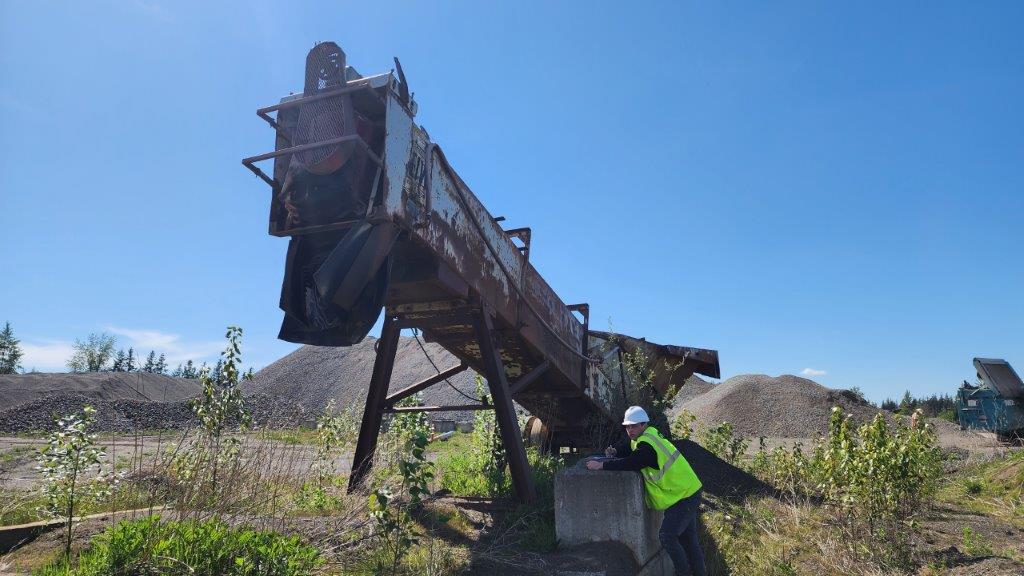

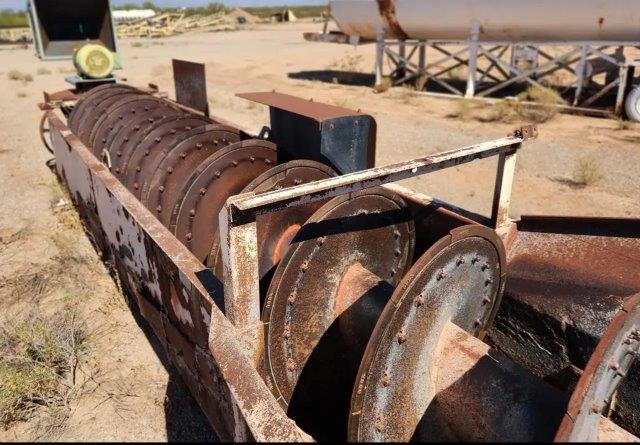

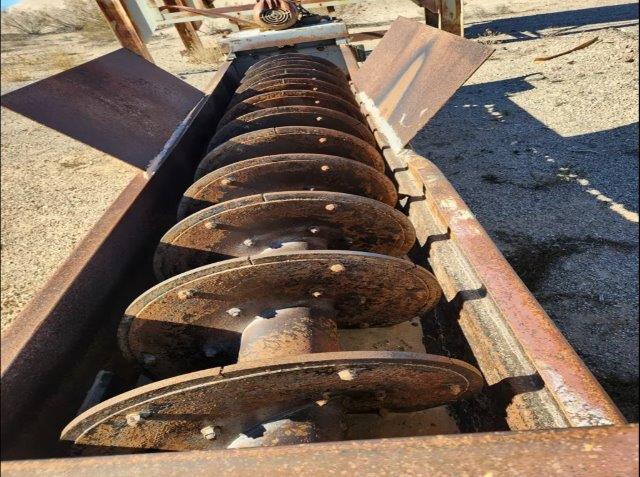

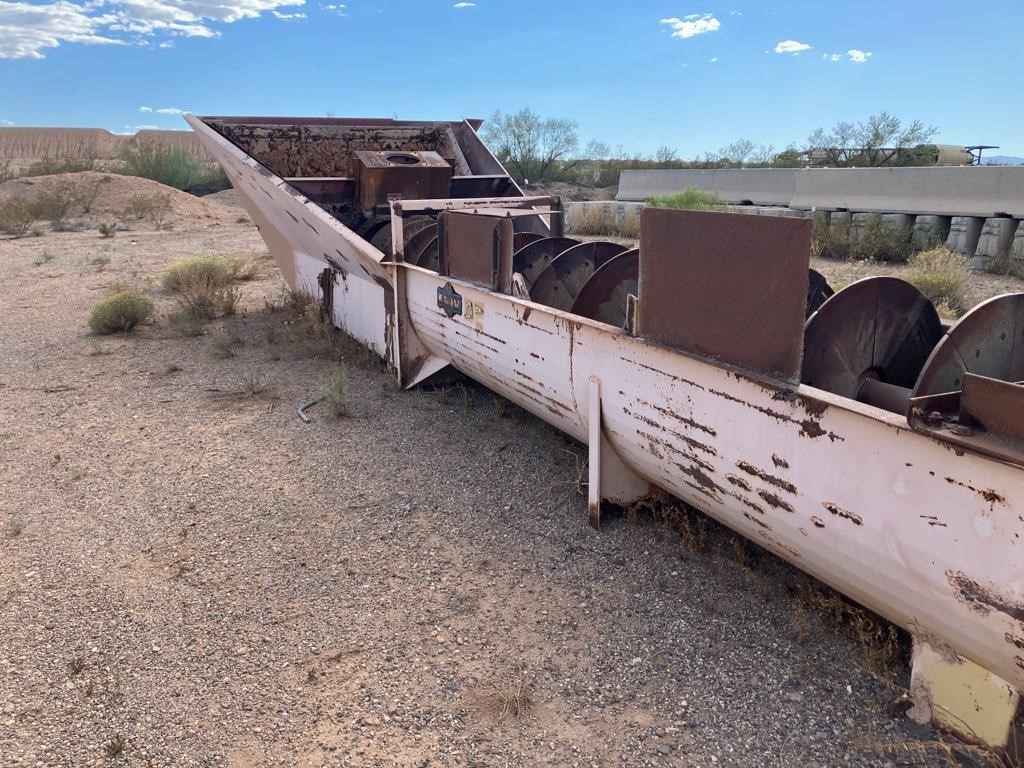

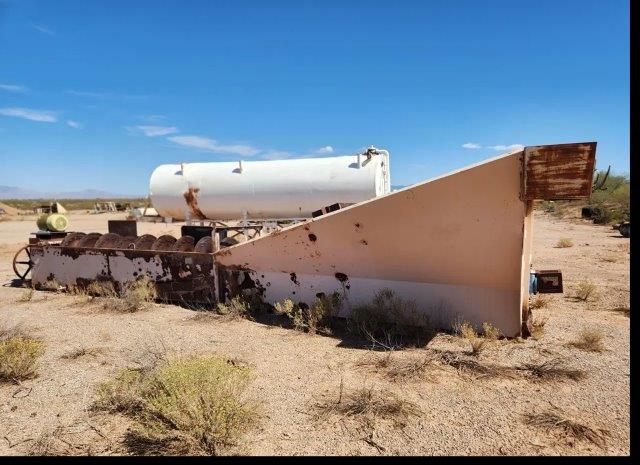

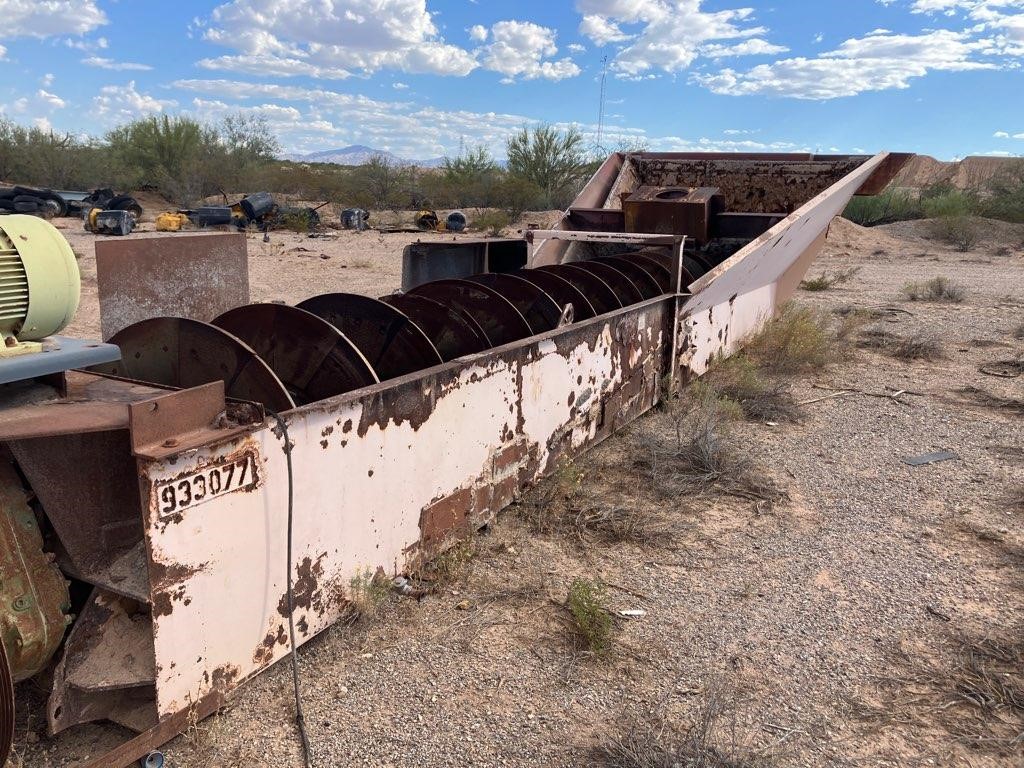

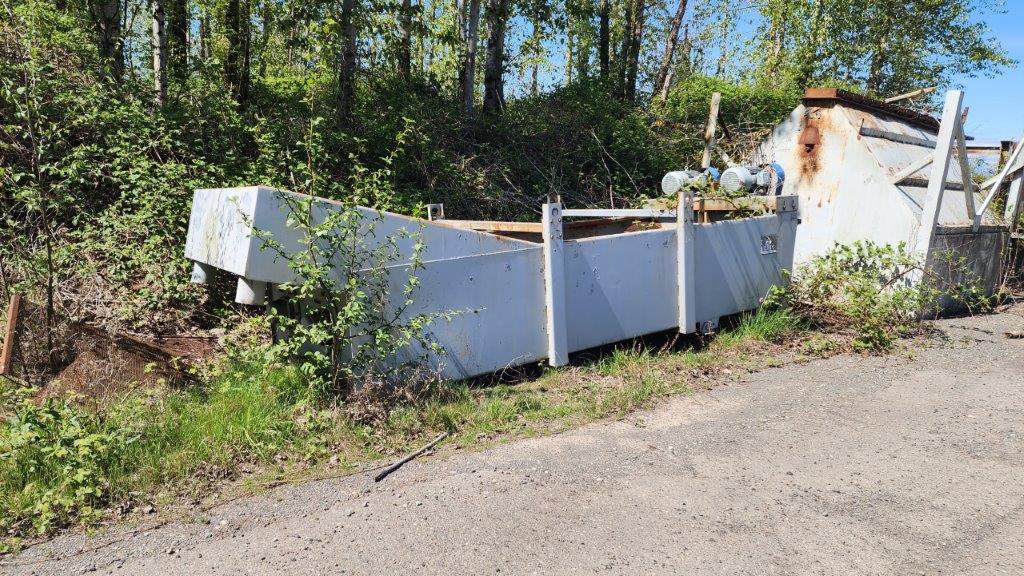

**Make:** McLanahan **Model**: Long Single Spiral Fine Material Washer Sandscrew **Size**: 44" diameter x 33' **Year**: 1991 **S/N**: 933077 **More Info**: * 25 h.p. 1800 RPM electric motor with drive sheave * grease lubricated external roller bearing assembly at lower end of tub * bolt on replaceable Ni-Hard cast steel wear shoes * Dodge #9 heavy duty oil bath lubricated gear reduction box with driven sheave * feed baffle * 12' wide flared tub at the feed end with adjustable height waste water spill over weirs * factory rated at up to 175 tons per hour maximum * No V-Belts or drive guard, steel tub has repaired wear holes as seen in the provided photos, steel wear shoes +/- 50%, some are broken **Freight Dimensions**: 12' 10" wide as is, trim off flume to 12' wide; 8' tall; 37' long; Weight: 20,000 lbs ()approx.)

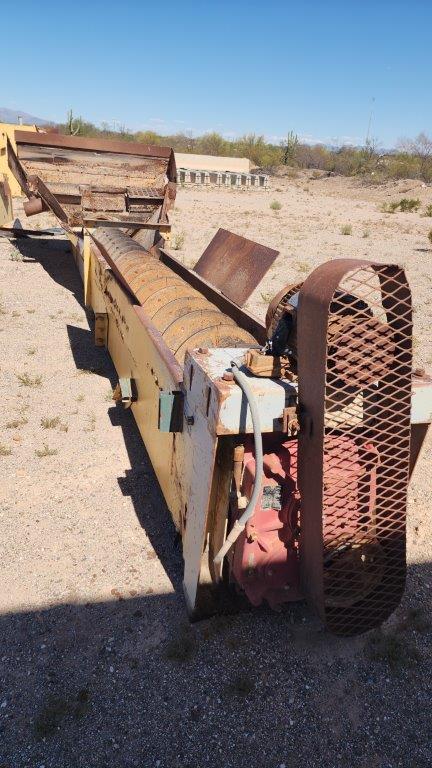

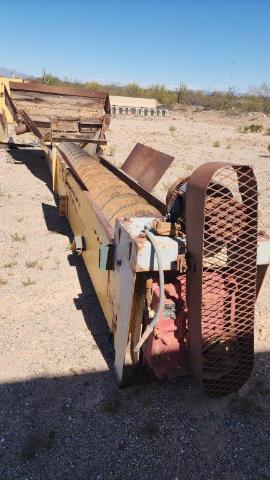

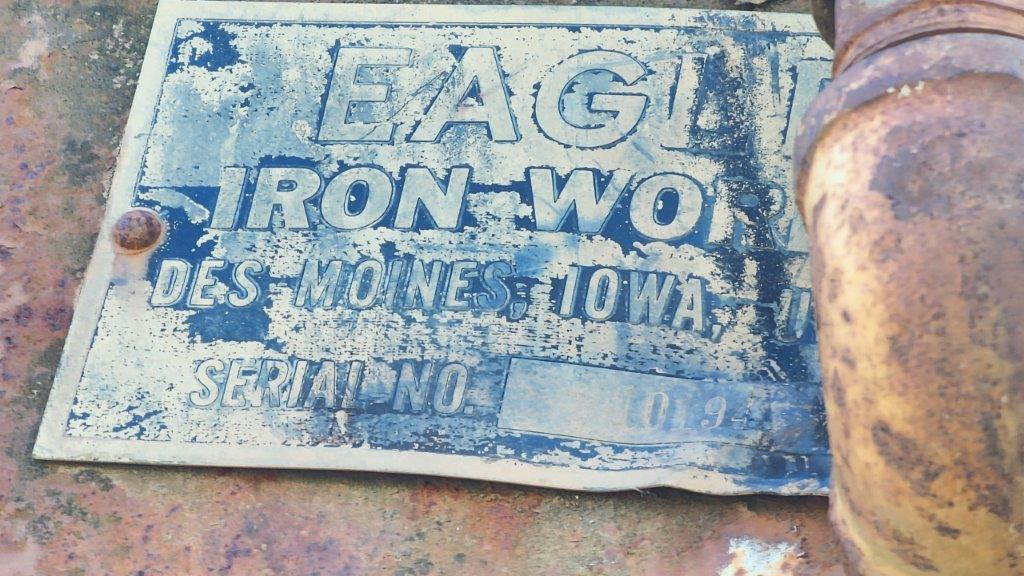

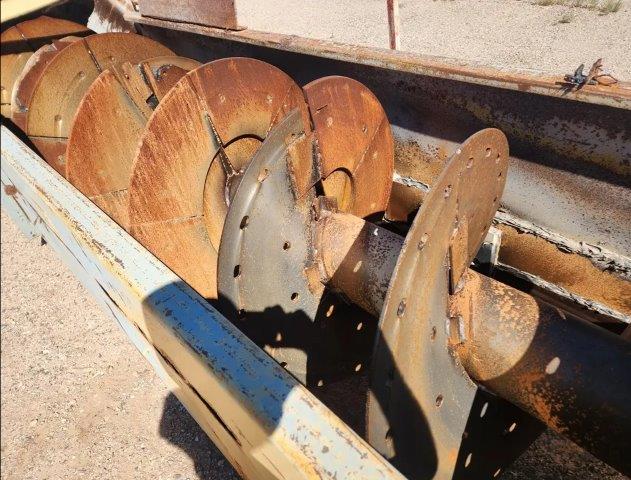

**Make**: EAGLE Iron Works **Model**: Single Spiral Fine Material Sand Screw Washer **Size**: 24" diameter x 22' **S/N**: 6056 **More Info**: * 7.5 h.p. 1800 RPM electric motor * V-Belt drive with drive guard * Bolt on replaceable Ni-Hard cast steel wear shoes * Flared tub at the feed end with adjustable height waste water spill over weirs * Grease lubricated external roller bearing assembly at lower end of tub * Eagle heavy duty oil bath lubricated gear reduction box * Factory rated at up to 50 tons per hour maximum * Steel tub has some holes that require steel lining **Freight Dimensions**: 8'4" wide; 5' tall; 24' long: Weight: 14,000 lbs. (approx.)

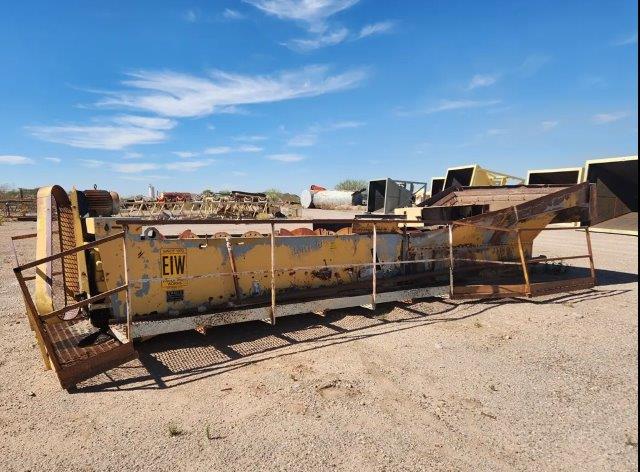

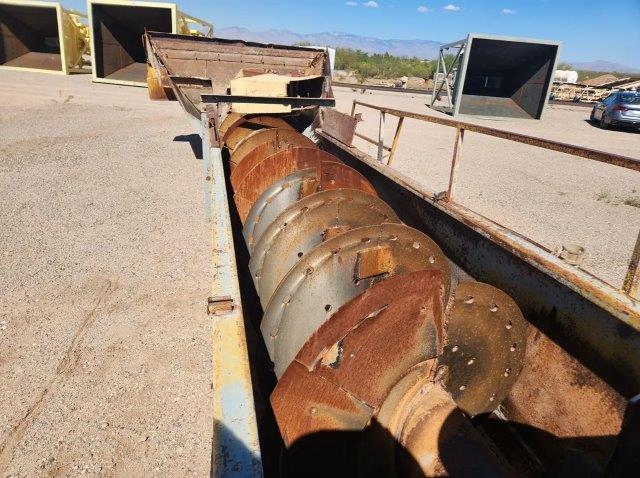

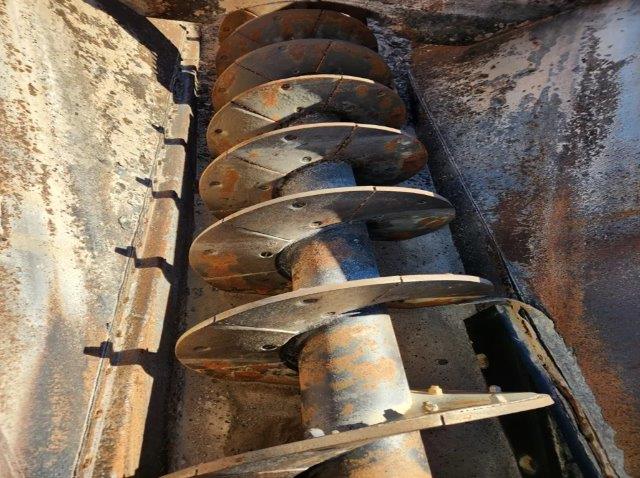

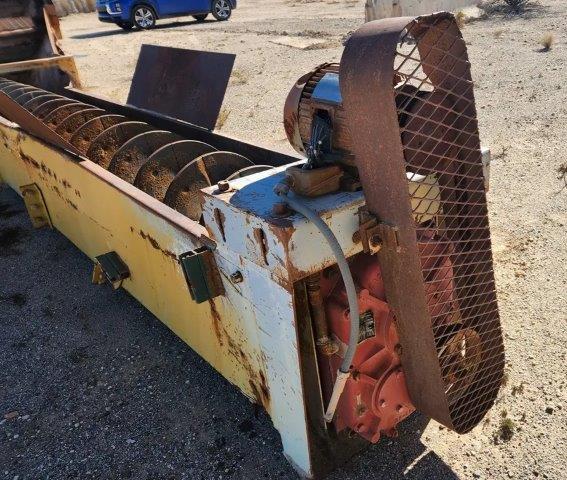

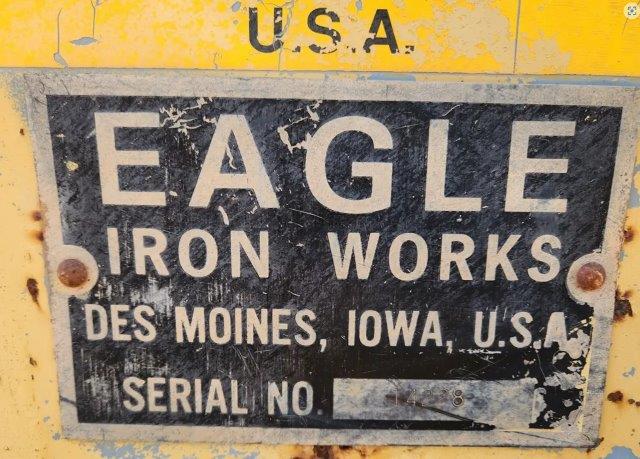

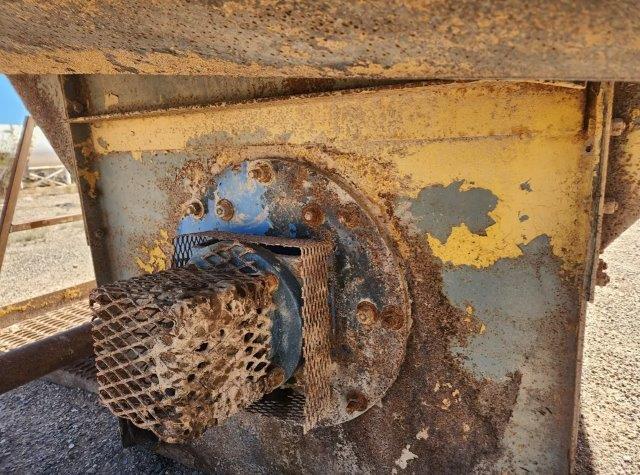

**Make:** EAGLE Iron Works **Model**: Single Spiral Sandscrew (Fine Material Washer) **Size:** 36" diameter x 25' **S/N:** 14228 **Year**: 1992 **More Info:** * Eagle heavy duty oil bath lubricated gear reduction box * 15 h.p. 1800 RPM electric motor * V-Belt drive with drive guard * Bolt on replaceable Ni-Hard cast steel wear shoes, * Grease lubricated external roller bearing assembly at lower end of tub * Walkway with handrails on one side and around discharge end * 10' wide flared tub at the feed end with adjustable height waste water spill over weirs * Factory rated at up to 100 tons per hour maximum **Freight Dimensions:** * 11' wide; 6' tall; 30' 6" long; Weight: 14,000 lbs. (approx.)

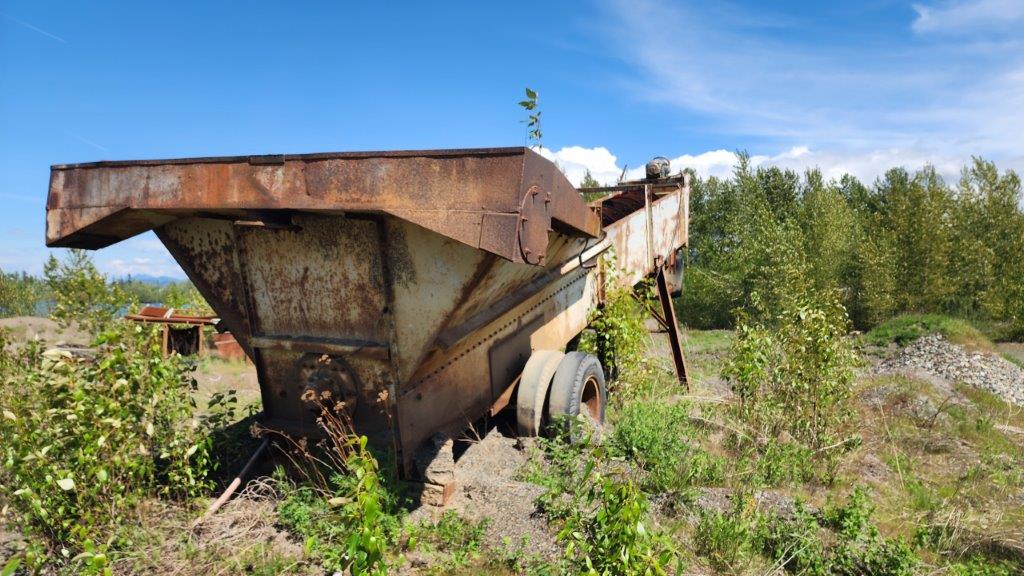

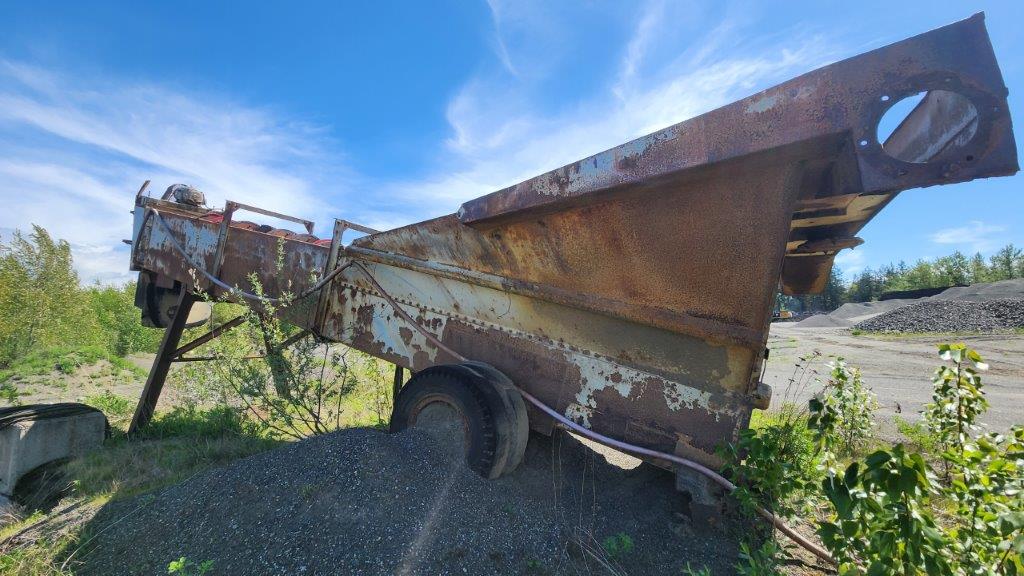

Eagle Iron Wash Screw Portable 1 Axle 4'x 30' Single Screw 40HP Drive Package
