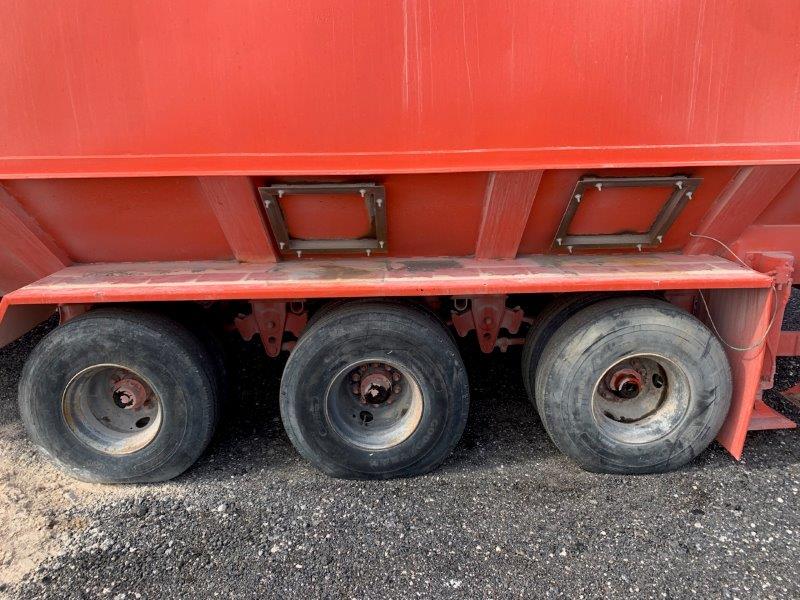

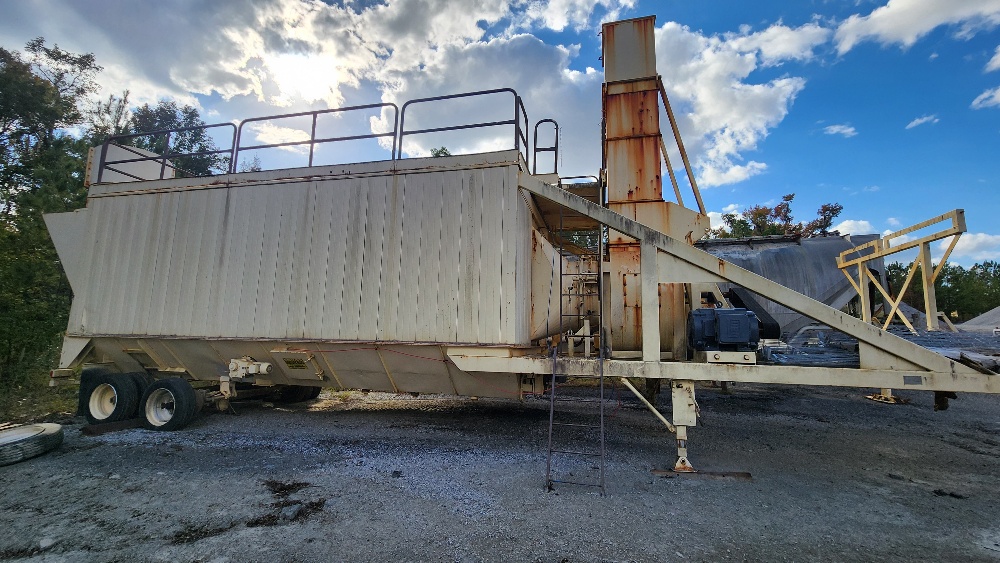

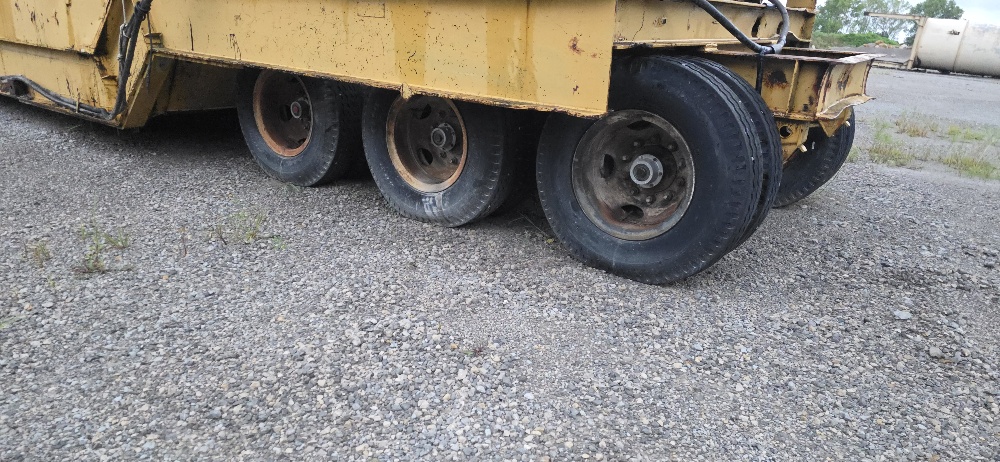

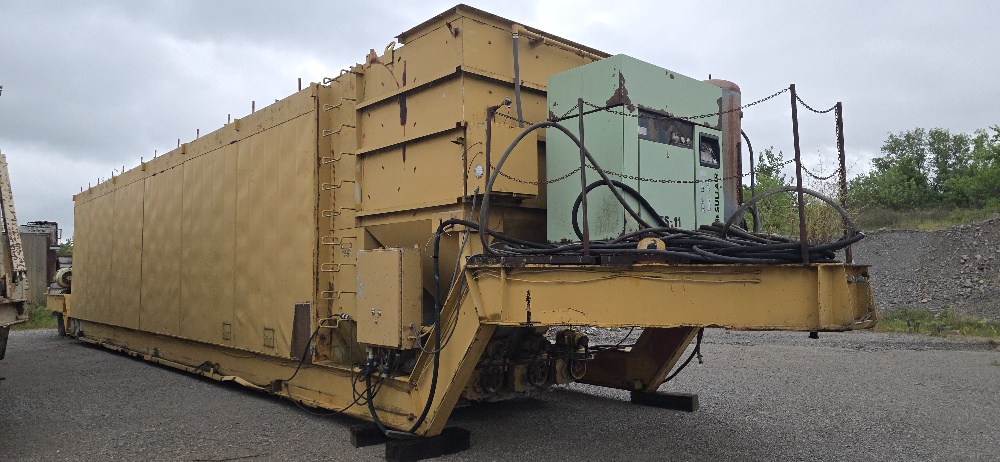

**Make**: CMI (Possibly) **Model:** Unknown **Serial Number**: Unknown **Year**: Unknown **Type:** Pulse-Jet **Capacity (ACFM):** 54,630 ACFM @ 6.1:1 (or 61,191 ACFM if all bags are 6' x 8') **Bag Size**: 6" x 8' and 6" x 5' **Bag Count**: 580 bags (6" x 8') + 232 bags (6" x 5') **Total Cloth Area**: 9,105.8 sq ft (or 10,198 sq ft if all bags are 6" x 8') **Access**: Top removal bags **Portability:** Portable, Triple Axle (with tires and rims) **Dust Discharge System**: Front Knock Out Box (Dirty Air Side), Triple Auger to Single Incline Auger **Fan Make**: Unknown **Fan Model:** Unknown **Fan Year:** Unknown **Fan ACFM:** Unknown **Fan HP**: Twin 125 HP Motors **Damper**: No **Ductwork:** No **Insulation**: No **Stack:** No **Current Status**: Disconnected, staged for loadout **Controls**: NEMA Electrical Box **Extra Equipment:** (2) Large Landing Pontoons, 50hp Compressor (Model ES-11 40H AC) with 500 Gallon Air Tank **Condition**: Baghouse in good condition, ready to work (Augers look good, Knock Out Box looks good) **Other Notes**: If all 812 bags were 6" x 8', it would have 10,198 sq ft cloth area and 61,191 ACFM @ 6.1:1 ratio**

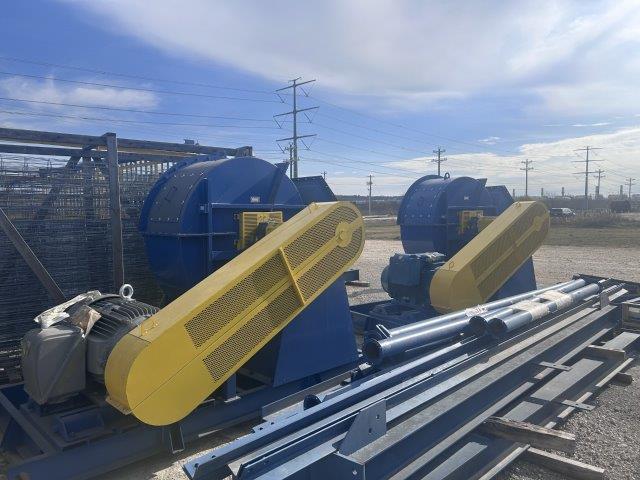

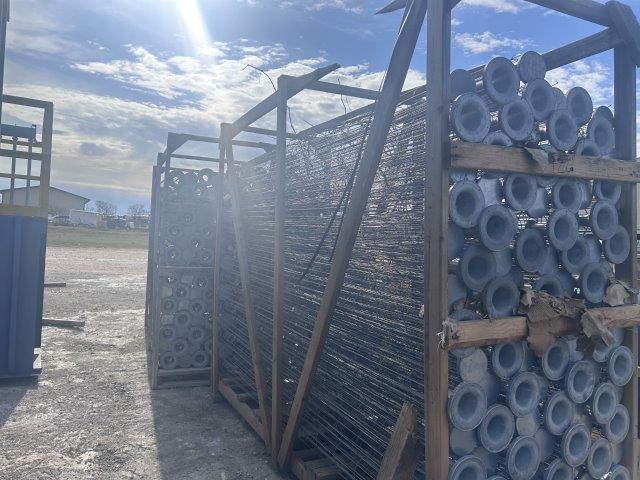

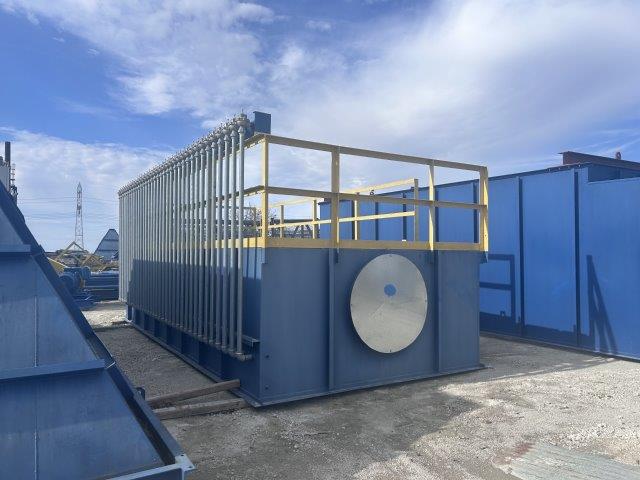

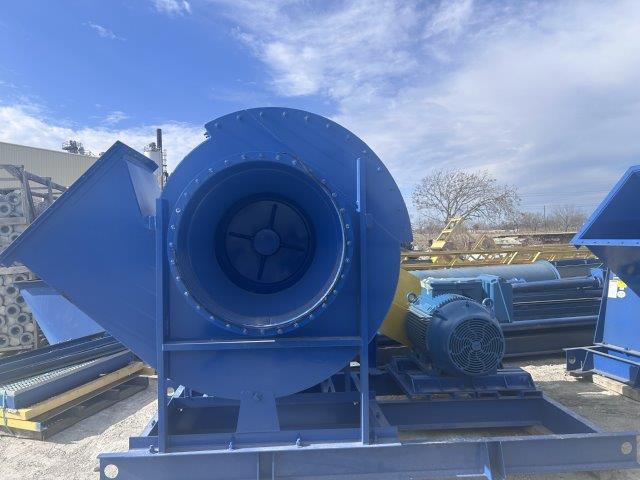

Brand new—never used US Air Filtration Baghouses Approx. 47,000 ACFM Stationary Pulse jet New bags/cages still in crates/ boxes Twin City Fan, Size 400, Type HIB/SW, 200hp 35 x 15 = 525 holes in the tube sheet bags 10' bags, 525 bags Unit has Allen Bradley VFD 200 hp and VFD for auger Has controllers IN STOCK NOW

Brand new—never used US Air Filtration Baghouses Approx. 47,000 ACFM Stationary Pulse jet New bags/cages still in crates/ boxes Twin City Fan, Size 400, Type HIB/SW, 200hp 35 x 15 = 525 holes in the tube sheet bags 10' bags, 525 bags Unit has Allen Bradley VFD 200 hp and VFD for auger Has controllers **CONDITION NOTE:** Midlle section flange bent, but can be straightened for $2,000 **IN STOCK NOW**

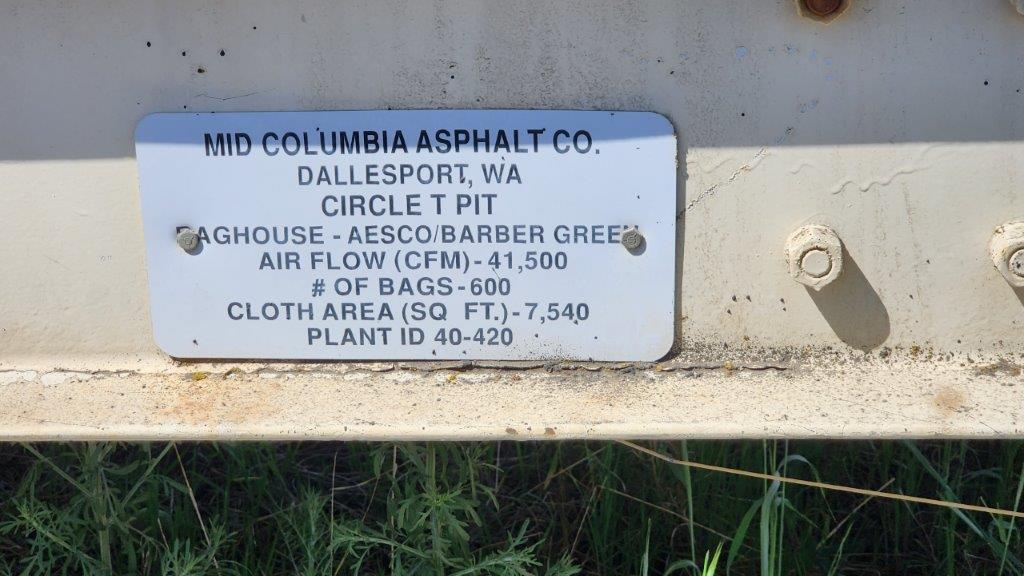

**Make**: Barber Greene **Model:** CE12x165 **Serial Number:** Unknown **Year:** Unknown **Type**: Pulse Jet **Capacity (ACFM)**: 41,500 **Bag Size**: 6" x 8' **Bag Count:** 600 **Total Cloth Area:** 7,540 sq. ft. **Access**: Top removal **Portability**: Portable – Tandem Axle (6-lug rims with 10.00 x 20R tires) **Dust Discharge System**: Twin Auger Discharge (15 HP motors) **Fan Make**: Unknown **Fan Model**: Unknown **Fan Year:** Unknown **Fan ACFM**: 50,000 **Fan HP:** Missing 2 motors (75–100 HP total) **Damper**: Unknown **Ductwork:** Includes connecting ductwork to drum/dryer **Insulation:** No **Stack:** No **Current Status**: Disconnected, staged for loadout. **Controls**: Control cabinet with modules **Extra Components**: NA **Condition**: Missing 2 motors on the fan **Note:** Road readiness needs to be checked by a professional.

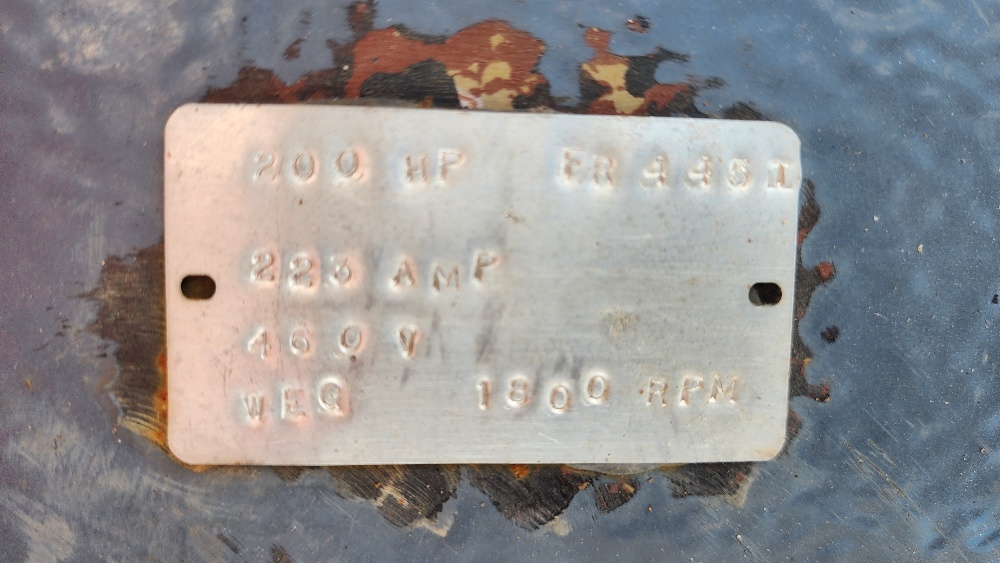

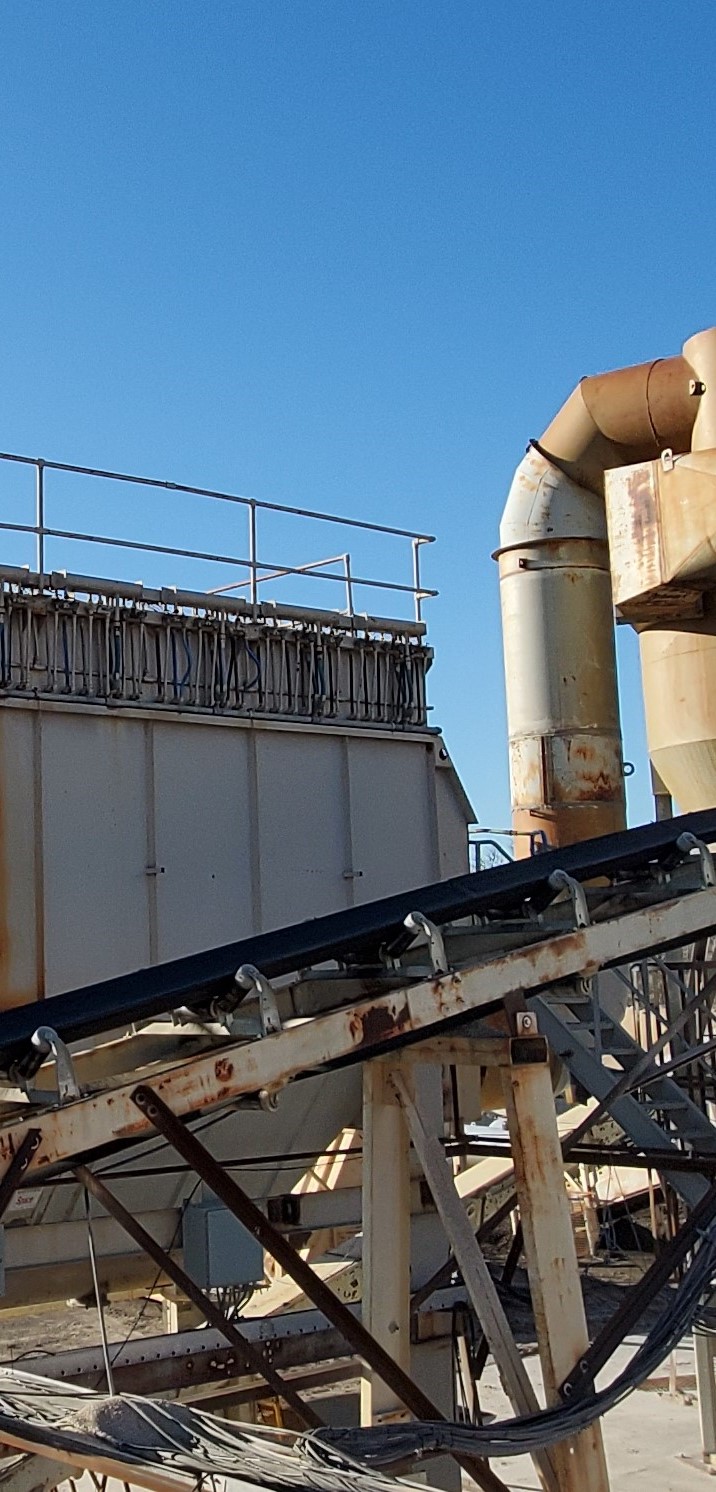

Make: CMI Model: SAF-3625 Approx ACFM: 51,000 ACFM Type: Pulse-Jet Stationary  Bag Count: 540 Bags Bag Size: 6" x 15'6" 36 Rows of Pulsars  12 Doors On Top look Solid and Not Leaking  200 HP Motor on Paddle-Wheel Fan Stack with Manual Damper 15 Hp Motor with Dodge TxT 5 Reducer on Single Auger Discharge for Dust, With Speed Sensor  Includes Some Ductwork Notes: This 2 section baghouse is still in use. Needs paint. Top doors look good. Bags Are 3 Years Old. Notes about cleanliness, plant running a natural gas–fired burner.

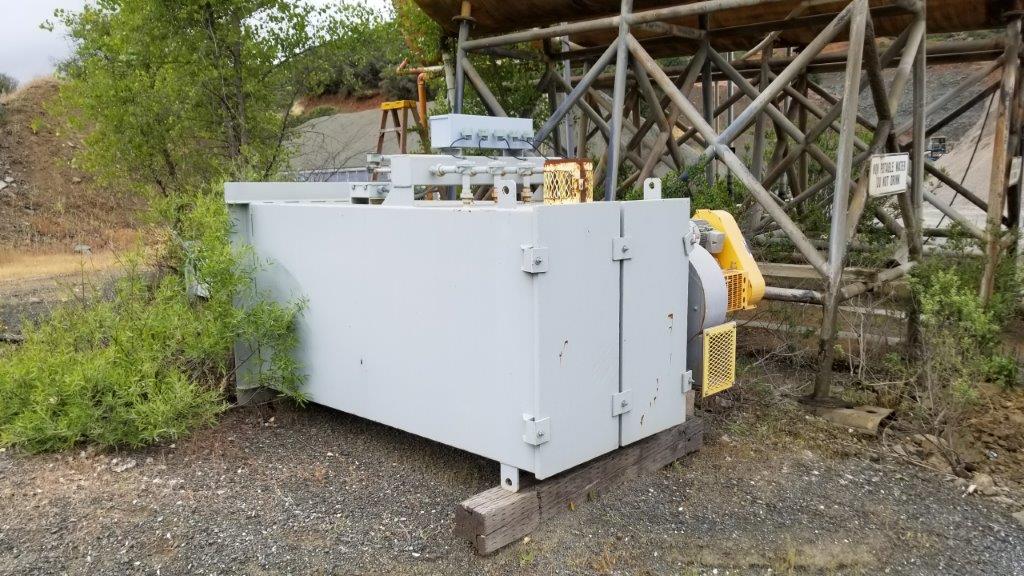

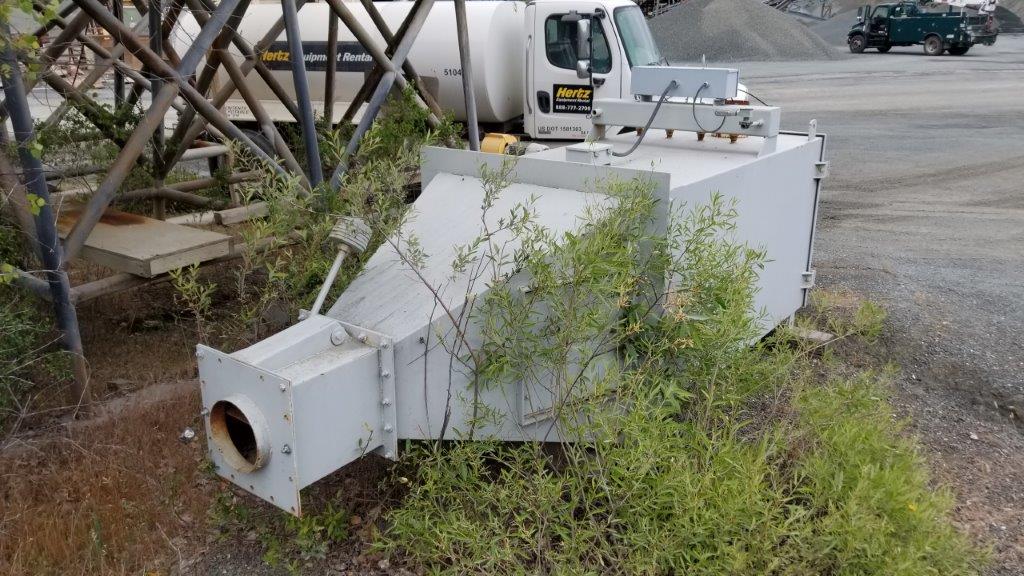

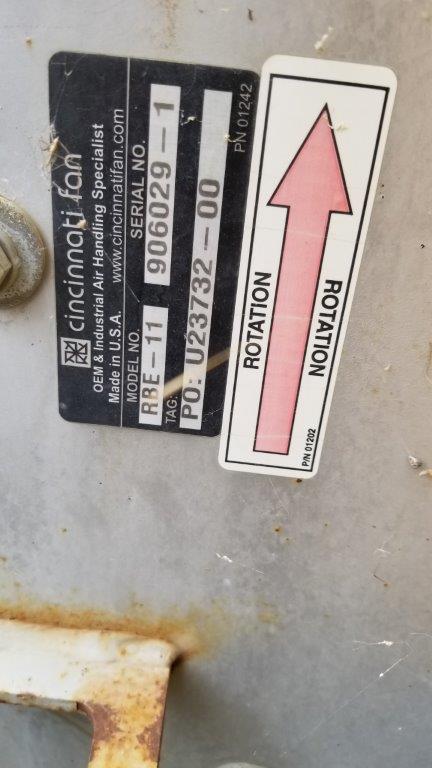

**Make**: Unknown **Model**: Unknown **Serial Number**: Unknown **Year**: Unknown **Type:** Pulse Jet **Capacity (ACFM)**: 1,400 ACFM @ 6:1 **Bag Size**: 6" x 6' **Bag Count**: 25 bags **Total Cloth Area**: 235 sq ft **Access**: Top Removal Bags **Portability**: Stationary **Dust Discharge System:** Hopper with Triple Valve **Fan Make:** Cincinnati Fan **Fan Model:** RBE-11 **Fan Serial Number**: 906029-1 **Fan Year:** Unknown **Fan ACFM**: Unknown **Fan HP**: 5 HP **Damper**: No **Ductwork:** No **Insulation**: No **Stack:** No **Current Status:** Disassembled, staged for loadout. **Controls**: No **Extra Components**: NA

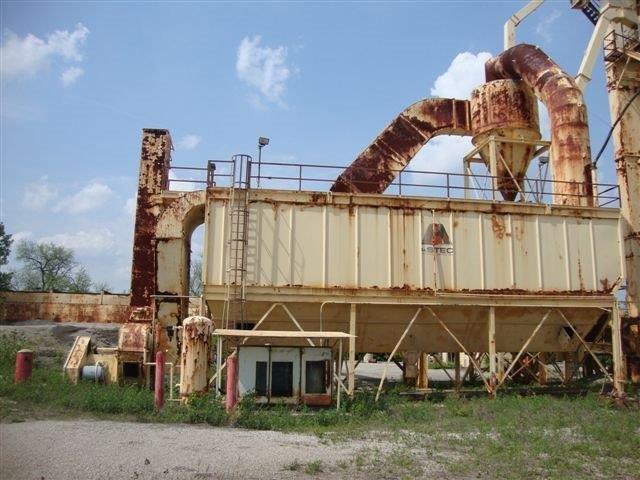

**Make:** Astec **Model:** SFC-56 **Serial Number**: 776-006 **Year**: 1976 **Type**: older reverse air **Capacity (ACFM)**: 52,378 ACFM @ 5.1:1 (61,621 ACFM @ 6.1:1) **Bag Size:** 6 1/2" x 122" **Bag Count**: 594 bags (18 sections, 33 bags per section) **Totak Cloth Area**: 10,270 sq ft **Access**: Unknown **Portability:** Stationary **Dust Discharge System:** Unknown **Fan Make:** Unknown **Fan Model:** Unknown **Fan Year:** Unknown **Fan ACFM**: Unknown **Fan HP**: Unknown **Damper:** No **Ductwork**: No **Insulation:** No **Stack**: No **Current Status:** Disassembled **Controls**: No **Extra Components:** No **Condition**: Bags have been stored in a van since the baghouse was shut down.

Make: Standard Havens Model: Al-pha Mark III Capacity: 55,000 ACFM Fan: 125 hp Notes: Bags in house. Good condition.

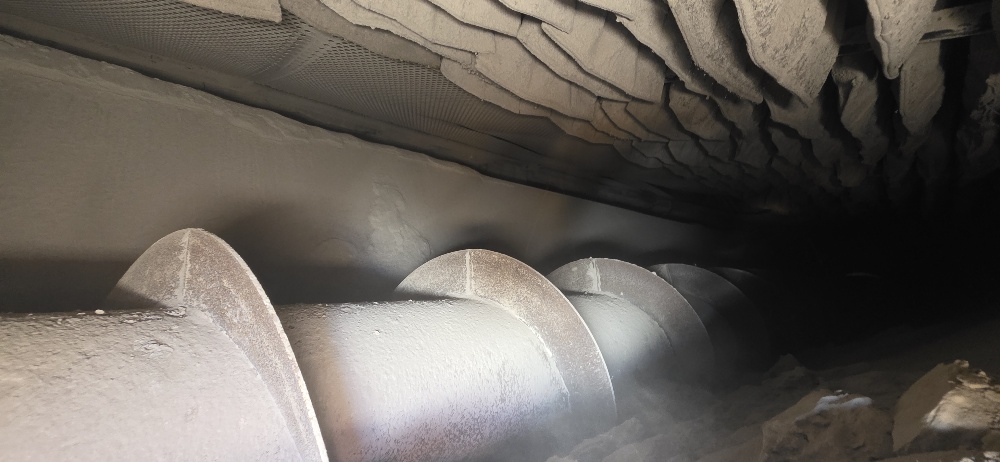

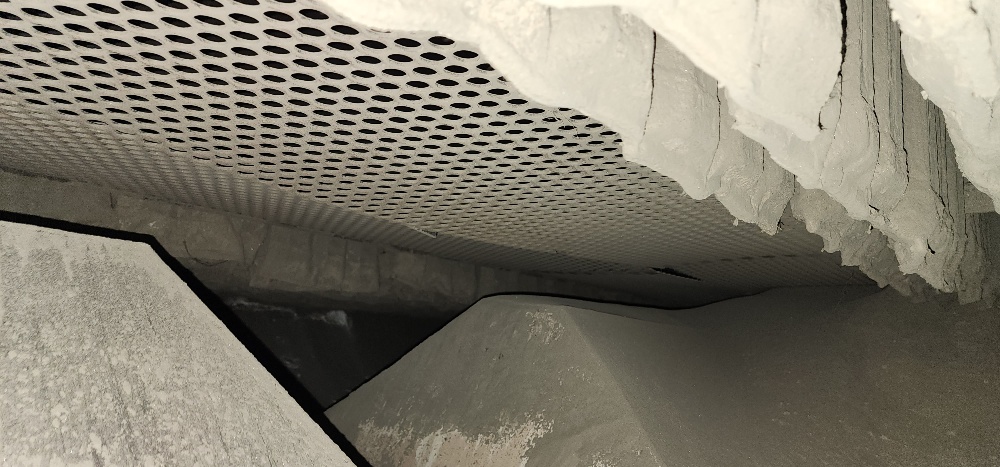

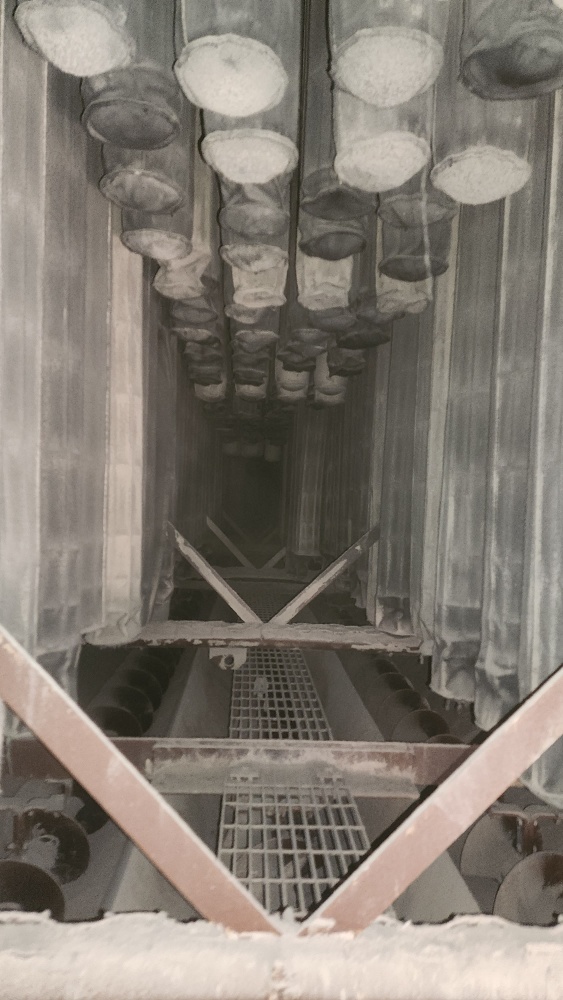

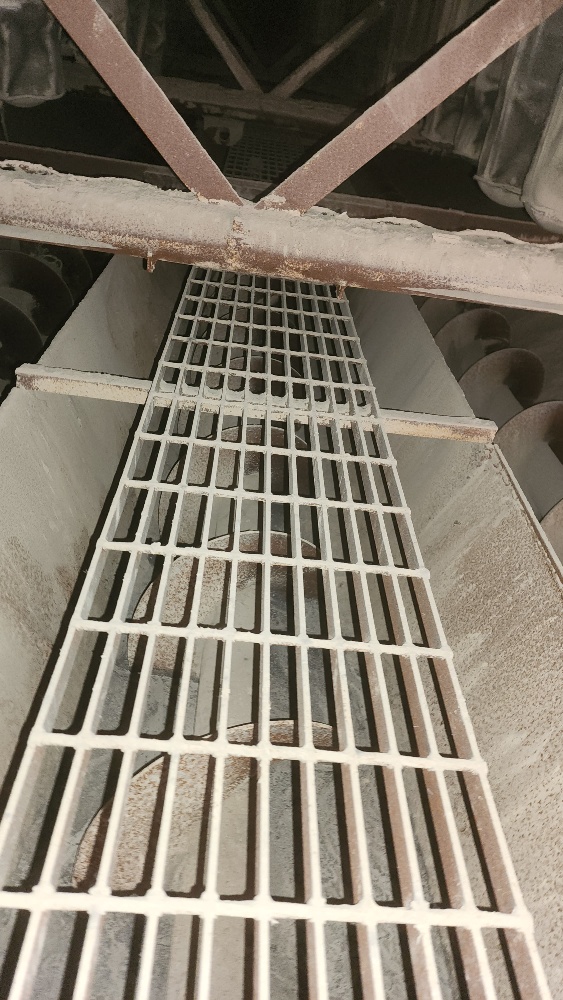

STANDARD HAVENS BAGHOUSE Era: 1990’s Model: Magnum size 28 Bags: 448 total Bag dimensions: 6” x 16’ long Filtration: Nominal cloth area: 12,096 sq. ft. Capacity: 66,000 CFM @ 5.5 CFM/sq. ft. Construction:3/16” bent plate including tube sheet (rigid, long-lasting) All bags accessible from top of unit Large volume design for dust drop-out before filtration Access & Components:Side walkway for accessing double-diaphragm Goyen valves Outlet duct with Astec fan, 200 HP premium efficiency motor, damper, and stack Large air holding tank piped to unit (no compressor) Hopper section is skid mounted for ease of moving and reassembly 12” diameter screw in bottom of hopper, driven by 5 HP motor Heavy-duty mesh screen over auger Large hopper access door Condition:Above average condition Sandblasted and painted before plant shut down Needs fresh coat of paint Unit down on ground, ready for shipment Owner will load onto buyer’s trucks

**Make**: Astec **Model:** Unknown **Serial Number**: 87-148 **Year**: 1987 **Type**: Pulse Jet **Capacity (ACFM**): ~75,000 to 112,000 ACFM, depending on the target air-to-cloth ratio. **Bag Size**: 5-1/2” x 10’ **Bag Count:** 1,280 (4 rows of 16 bags per section, 20 sections) **Total Cloth Area**: 18,598.23 sq ft **Access:** Top load **Portability**: Stationary **Dust Discharge System**: Auger (No Motor) **Fan Make:** Unknown **Fan Model:** Unknown **Fan Year:** Unknown **Fan ACFM:** Unknown **Fan HP**: (2) 200 HP Linkin motors **Damper:** Unknown **Ductwork:** Yes **Insulation**: No **Stack**: No **Current Status:** Disconnect, staged for loadout. **Controls**: No **Extra Components**: NA **Condition**: Bags and cages are still inside. Bags will likely need replacing. Fan motors will need to be checked. All pulse valves could use new gasket kits. Fan Needs New Blower Cone. the baghouse doors have some surface rust. the inside Tub sheet is in good condition. Baghosue has Two puls Boards.

**Make**: CMI **Model:** Unknown **Serial Number**: Unkown **Year:** Unknown **Type**: Reverse Air **Capacity (ACFM):** Approximately 68,000 ACFM **Bag Size:** Unknown **Bag Count:** 1,008 bags (24 doors x 42 bags) **Total Cloth Area:** Unknown **Access**: Clean out doors on both sides and several clean out ports on both augers **Portability**: Portable (Triple Axle) **Dust Discharge System**: Dual auger discharge, driven by (2) 125 HP motors **Fan Make**: Unknown **Fan Model:** Unknown **Fan Year:** Unknown **Fan ACFM:** Unknown **Fan HP:** 125 HP (x2 TEFC motors) **Damper**: Fire damper on entry duct, damper on exhaust fan **Ductwork:** Transition duct from drum to baghouse included, ladder provides acess **Insulation:** No **Stack**: **Current Status**: On ground staged for loadout **Controls**: No **Extra Components:** No **Other Notes**: Baghouse last in use December 2024, replaced with larger baghouse. **Note**: Road readiness much be checked by a professional. Handrails on roof fold down for transportation.

**Make:** Cedarapids **Model:** Unknown **Serial Number**: Unknown **Year**: Unknown **Type**: Pulse Jet **Capacity (ACFM)**: Approx. 58,000–65,000 ACFM **Bag Size**: 66" 1/4 x 136 1/2" (bags need to be removed for transportation) **Bag Count:** Unknown **Total Cloth Area**: Unknown **Access:** Top load **Portability:** Portable, 3-axle (tire size: 11 - 22.5) **Dust Discharge System:** Auger, 7.5hp, slat bottom discharge to increase ACFM **Fan Make**: Tag Unreadable **Fan Model:** Tag Unreadable **Fan Year:** Tag Unreadable **Fan ACFM**: Tag Unreadable **Fan HP:** Approx. (2) 150 HP fan motors (fan motor tags unreadable) **Damper**: Unknown **Ductwork:** No **Insulation**: Unknown **Stack:** No **Current Status**: Disconnected, staged for load out **Controls**: No **Extra Components**: Includes extra bag **Condition**: Surface rust on top doors, Corners have patching and will need repair, Will need additional repairs **Other Notes**: Baghouse was taken down in June 2024 and replaced with a larger unit. Came off a 400 TPH plant. Bags must be removed for transportation. Plant ran on waste oil, so bags are discolored. **Note**: Road readines must be checked by a professional.

**Make**: Stansteel **Model**: Unknown **Serial Number**: Unknown **Year:** Unknown **Type:** Pulse Jet **Capacity (ACFM)**: Approx 54,000 ACFM **Bag Size:** Unknown **Bag Count**: Unknown **Total Cloth Area:** Unknown **Access**: Unknown **Portability:** Stationary **Dust Discharge System:** Unknown **Fan Make**: Northern Blower **Fan Model**: 4450 (Frame) **Fan Serial Number**: A41467-1 **Fan Year**: Unknown **Fan ACFM**: Unknown **Fan HP**: 125 HP **Damper:** Unknown **Ductwork**: Yes, Included **Insulation**: No **Stack**: Unknown **Current Status:** Disassembled **Controls**: No **Extra Components**: No ### BRING ALL OFFERS

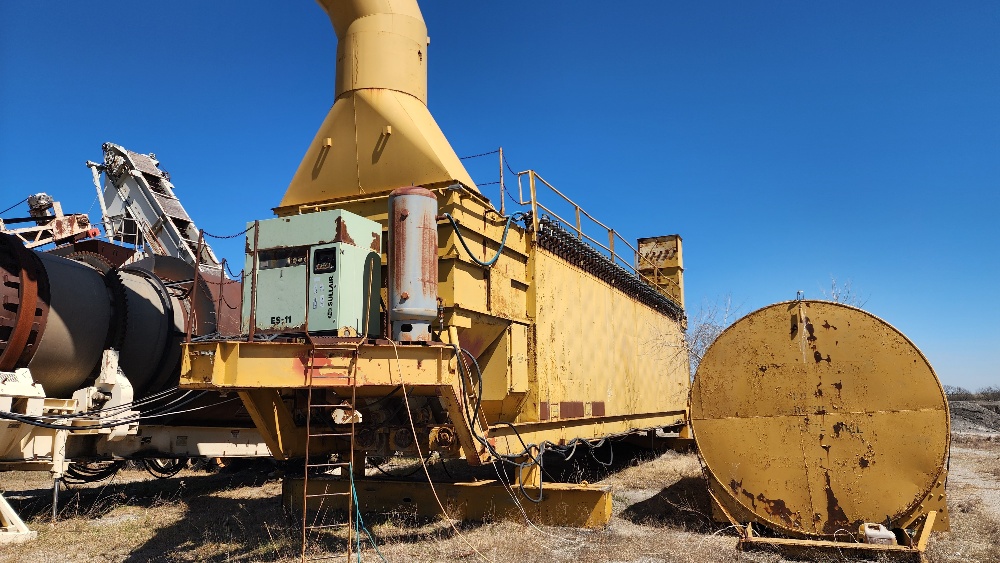

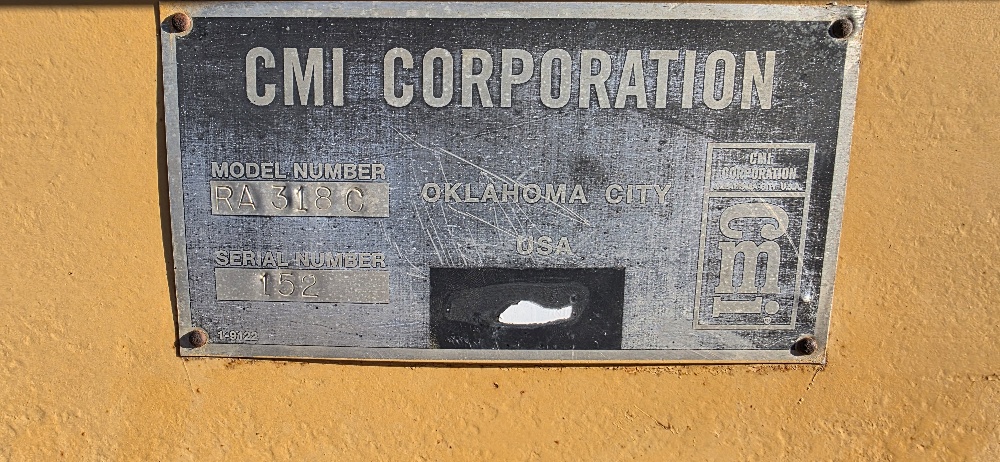

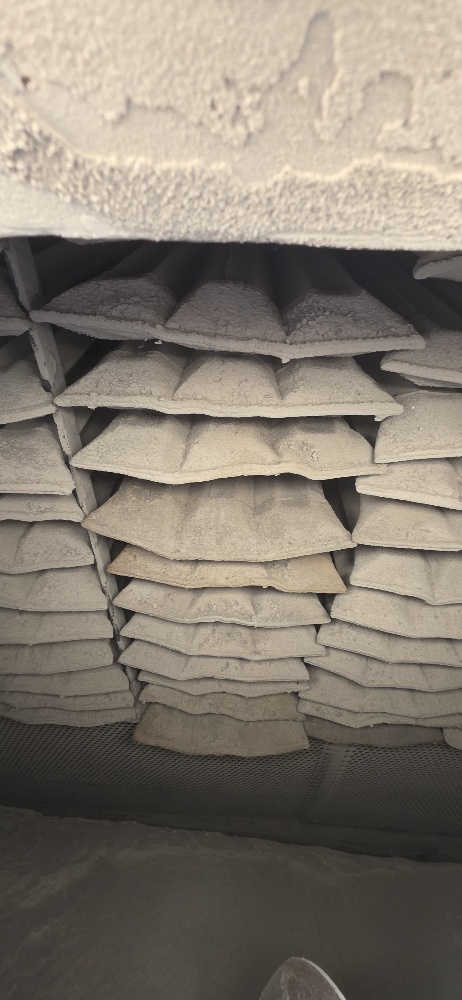

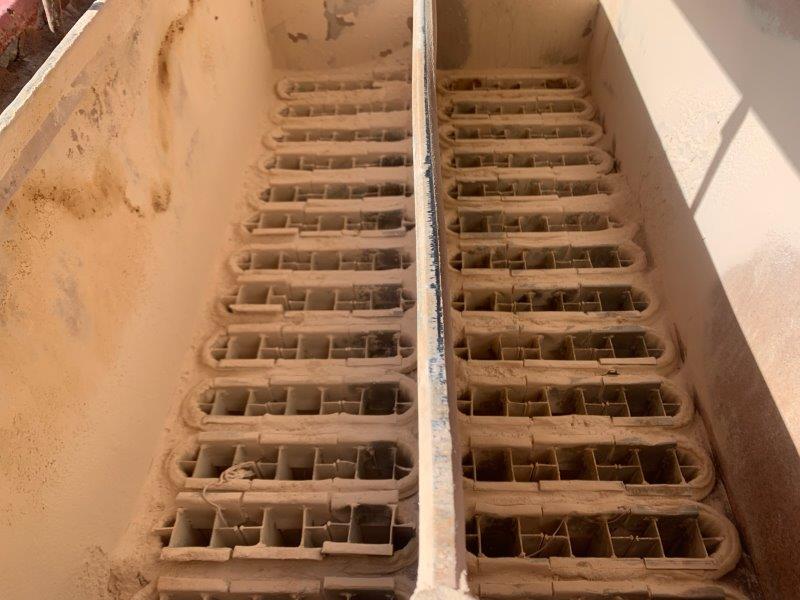

**Make:** CMI / Roto Air **Model:** RA-318-C **Serial Number**: 152 **Year**: Unknown **Type:** Reverse Air **Capacity (ACFM)**: 70,000 ACFM @ 5.1:1 **Bag Size**: Assumed standard RA318C oval 3-pocket bags at 7' length, this is an assumption. **Bag Count:** 756 **Total Cloth Area**: Over 13,000 sq ft (Based on standard RA318C oval 3-pocket bags at 7' length) **Access**: Top load **Portability:** Tandem axle portable **Dust Discharge System**: Dual Auger **Fan Make:** CMI **Fan Model:** 490 Paddle Wheel **Fan Year**: Unknown **Fan ACFM**: Unknown **Fan HP:** (2) 100 HP Motors **Damper**: NA **Ductwork**: No **Insulation**: No **Stack:** Yes **Current Status**: Disconnected, Staged for Loadout **Controls**: NA **Extra Components**: NA **Note**: Road readiness needs to be checked by a professional.

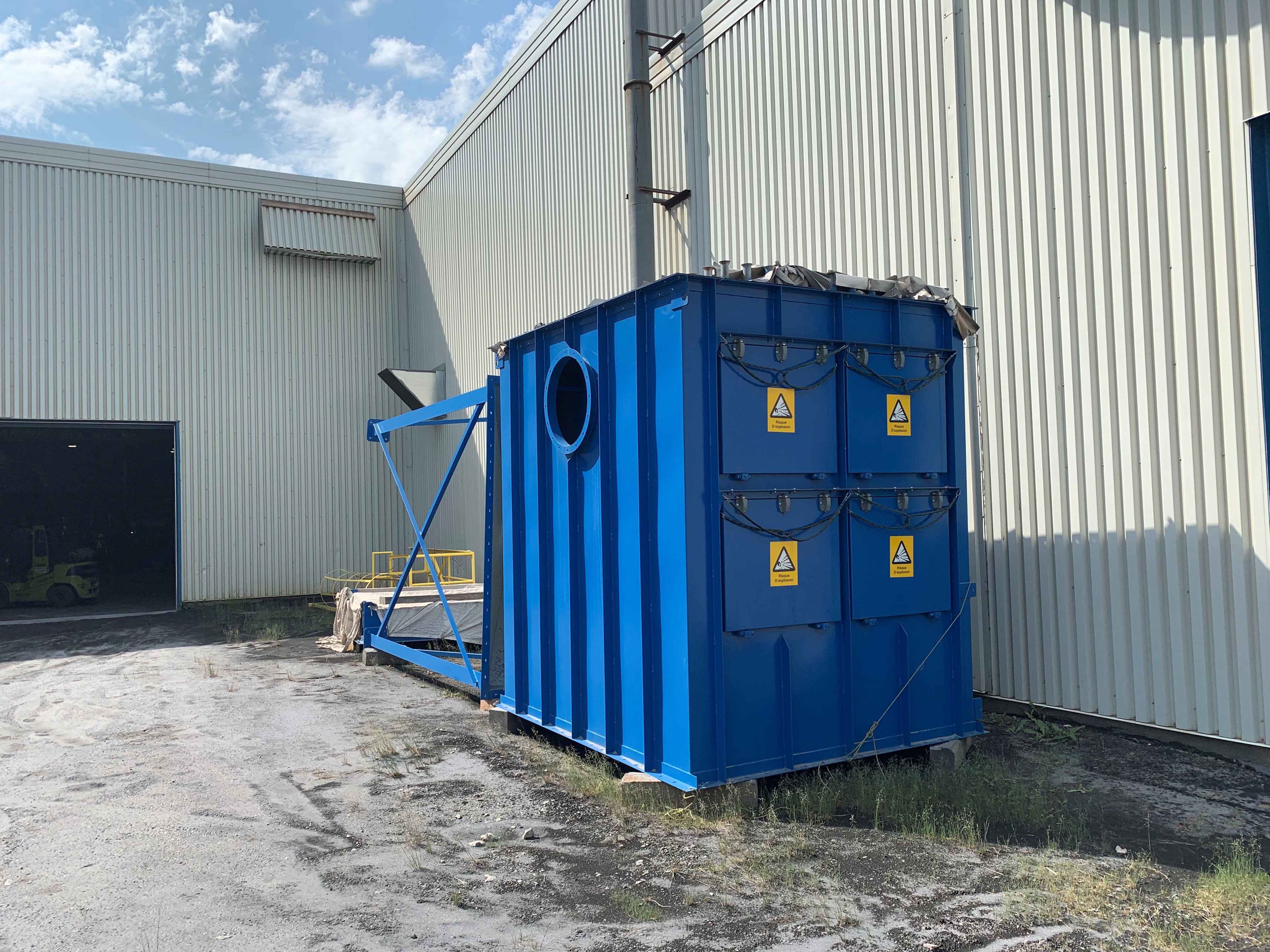

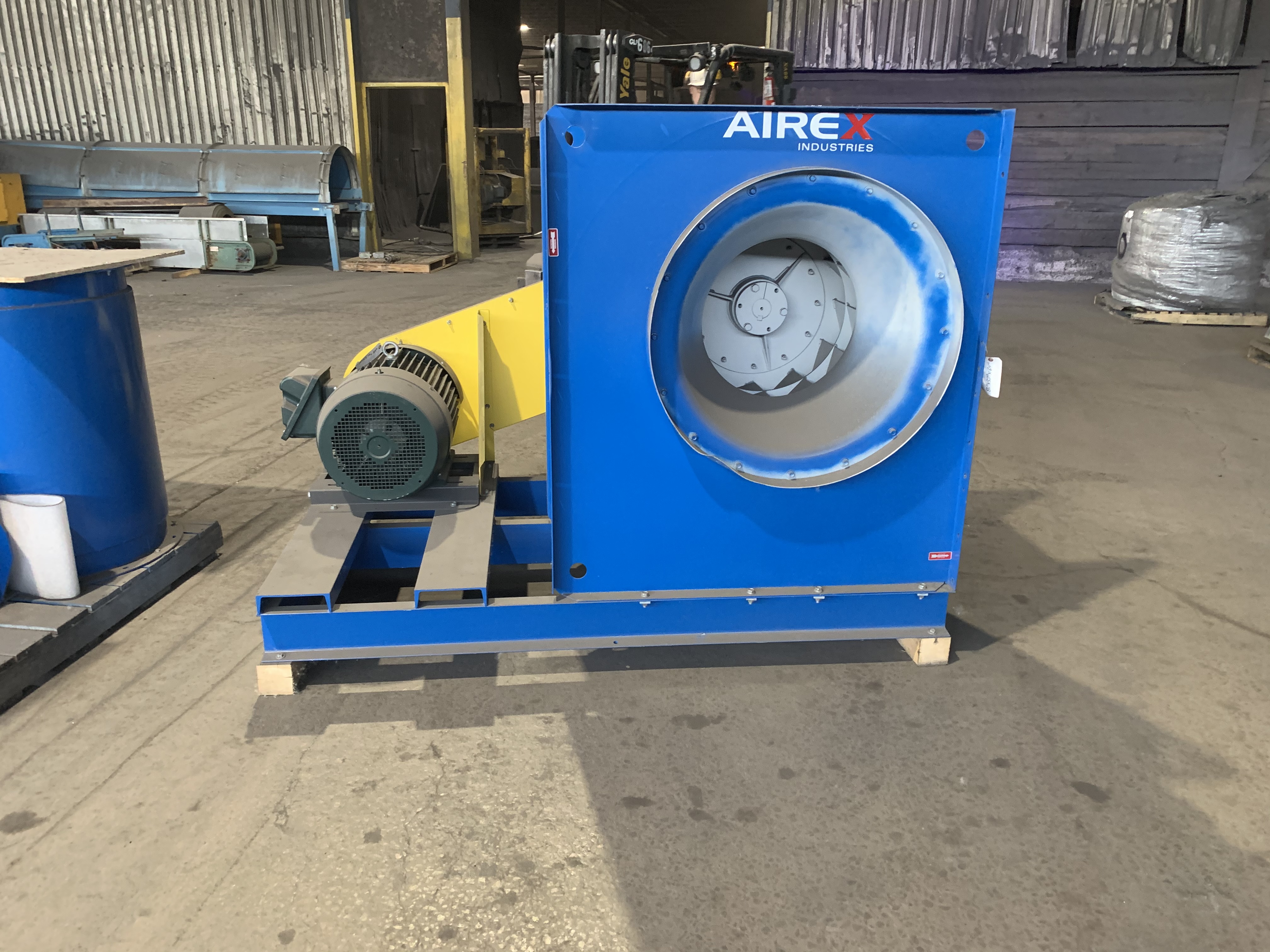

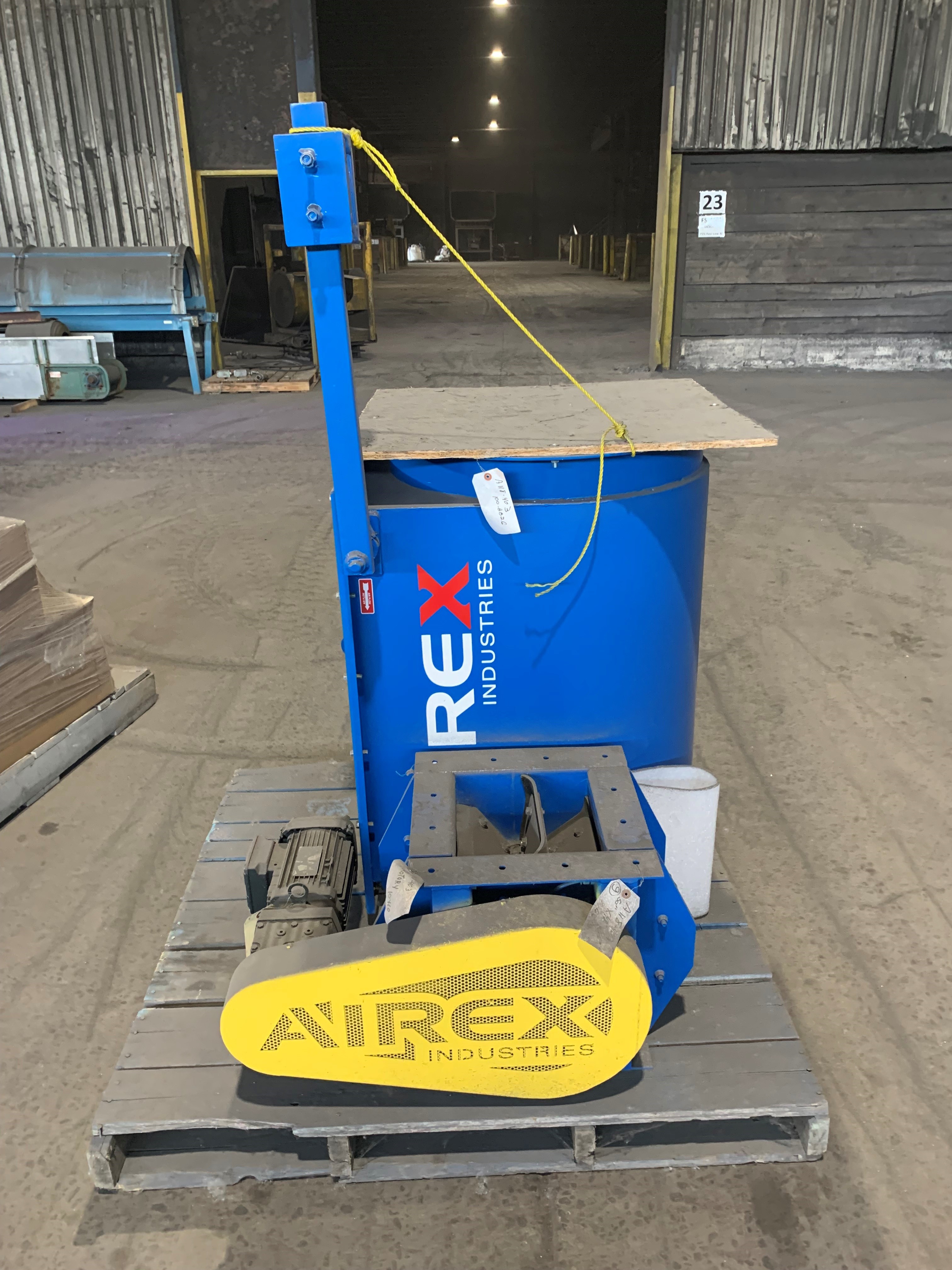

One (1) 14,000 CFM Baghouse – Pulse Model 6.6 @ 1 Make: AIREX Model: 168-W-10 Serial Number: 2018-AI18-403 Includes: 50 HP motor, 575 volts Goyen Valves: 1'' Model RCAC-25DD 4002 (Repair Kit: K-2546) Bag Specifications: 4-5/8'' x 123'' Bag Quantity: 168 Additional Features: Stack, ladder, and handrail included Rotary Airlock: Model ROT10-6000+ (1 HP motor included)

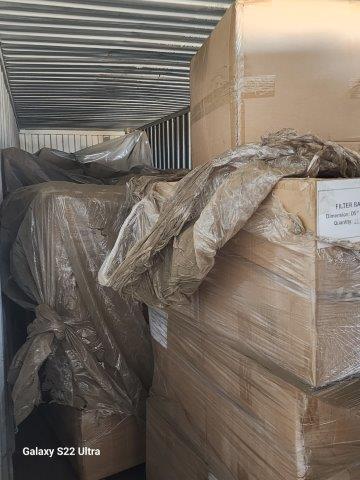

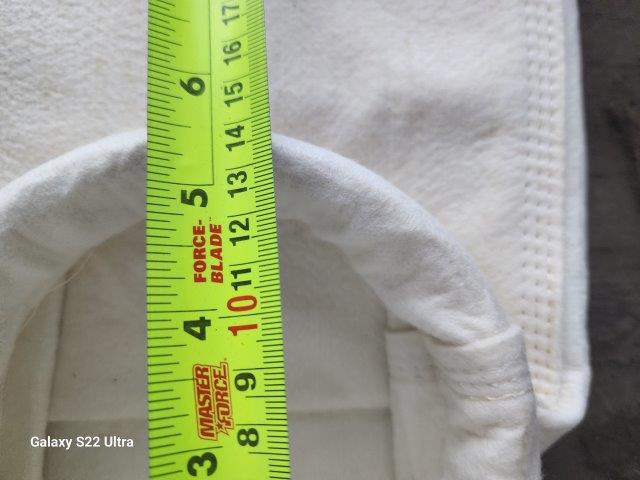

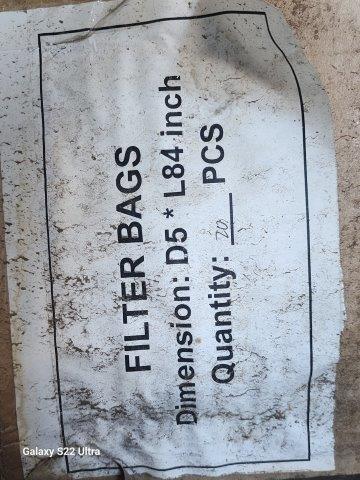

(448) BF-ENVOPBAG - 5'' Diameter x 96'' Length, Snapband to fit a 5 1/4'' Tubesheet, Disc Bottom, 14 oz Aramid Material (280) BF-ENVOPBAG84 - 5'' Diameter x 84'' Length, Snapband to fit a 5 1/4'' Tubesheet, Disc bottom, 14 oz Aramid Materials (100) BCG-ENVOPCG96 - TYPE: Top Load, DIAMETER: 4.875'', LENGTH: 95.5'', MATERIAL: Galvanized, TOP: Turn Down Flange, VENTURI: 6'', BOTTOM: Welded Pan, VERTICAL WIRES: 10, RING SPACING: 8'' (75) BCG-ENVOPCG84 - TYPE: Top Load, DIAMETER: 4.875'', LENGTH: 83.5'', MATERIAL: Galvanized, TOP: Turn Down Flange, VENTURE: 6'', BOTTOM: Welded Pan, VERTICAL WIRES: 10, RING SPAVING: 8''

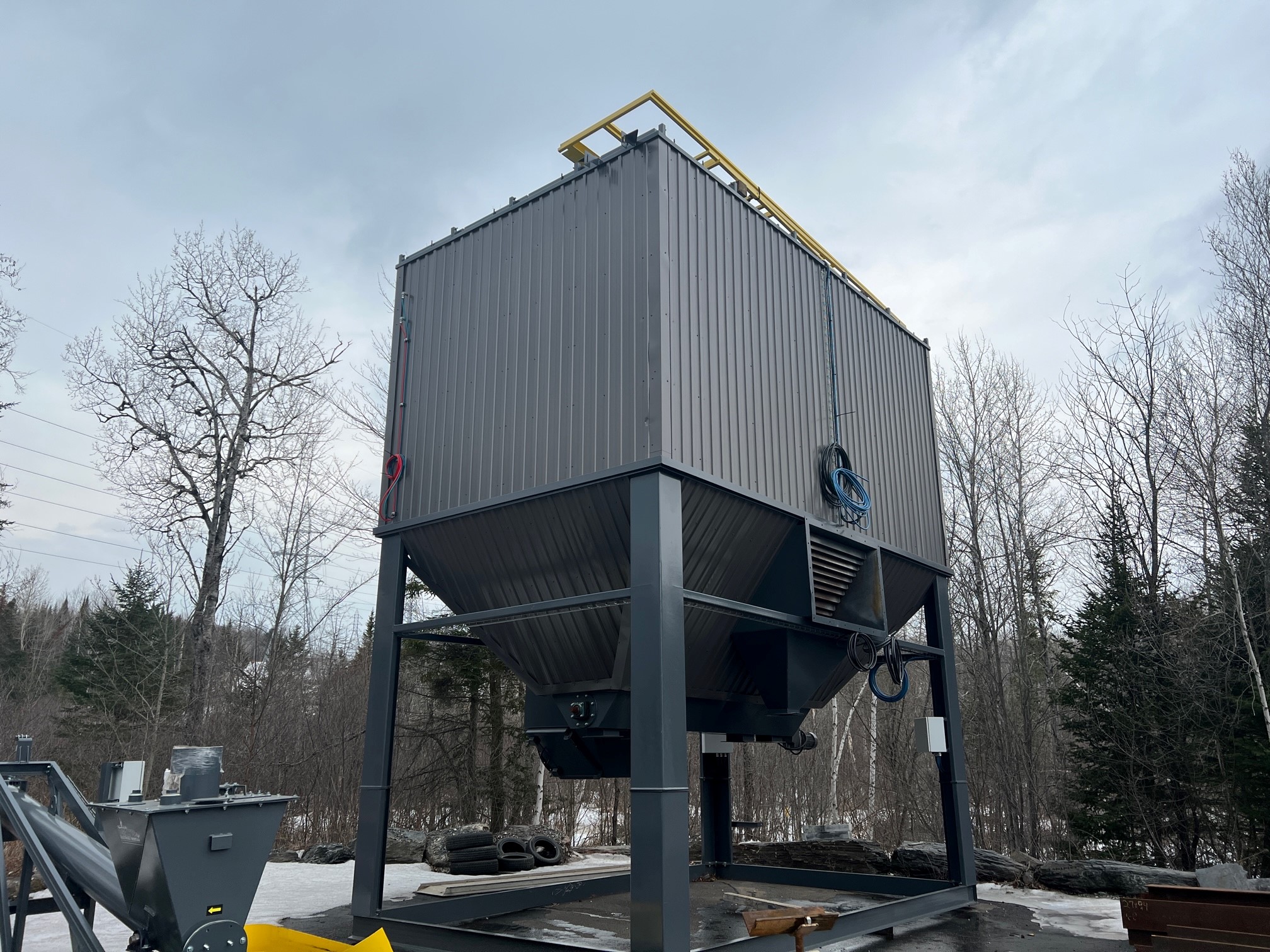

Make: IdealTFC Year: 2019 Filter Surface Installed: 880 m2 Power Fine Screws: 1 x 5hp

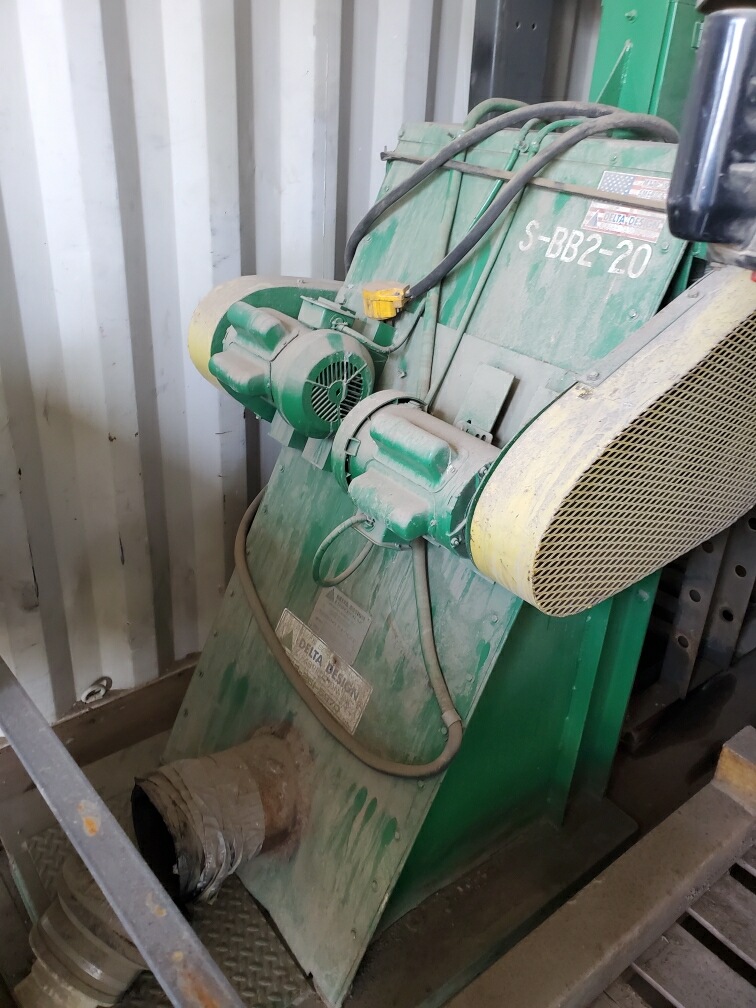

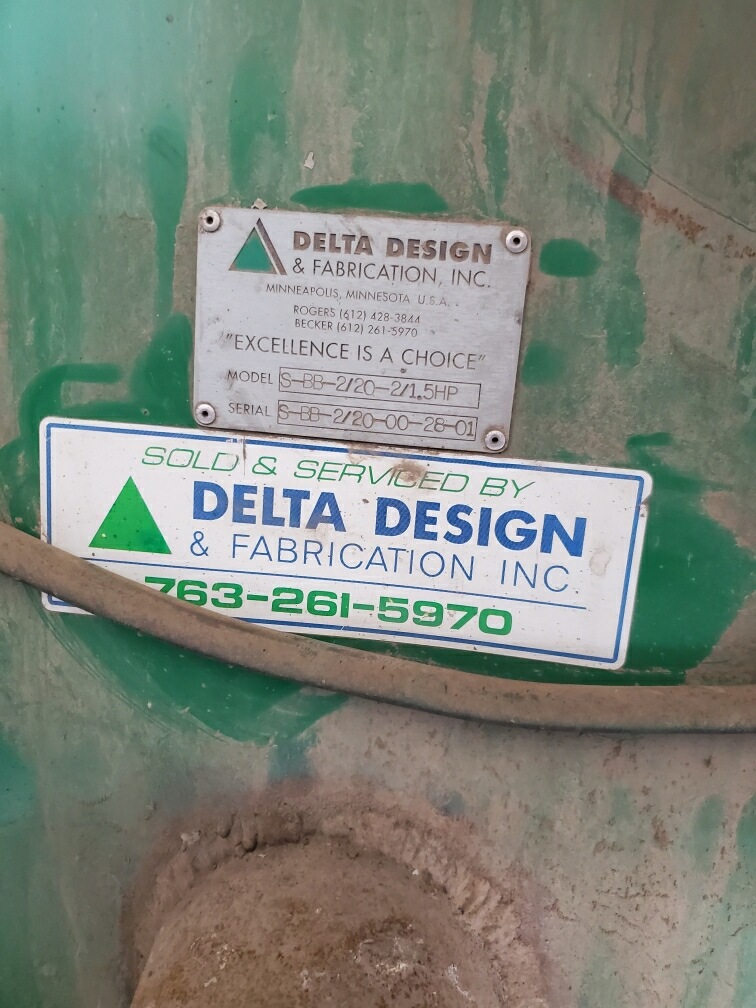

Make: Delta Design & Fabrication, Inc. Model: S-BB-2/20-2/1.5HP Serial: S-BB-2-20-00-28-01 Zip Code in location is for state capital, please contact ASI directly for more specific location.

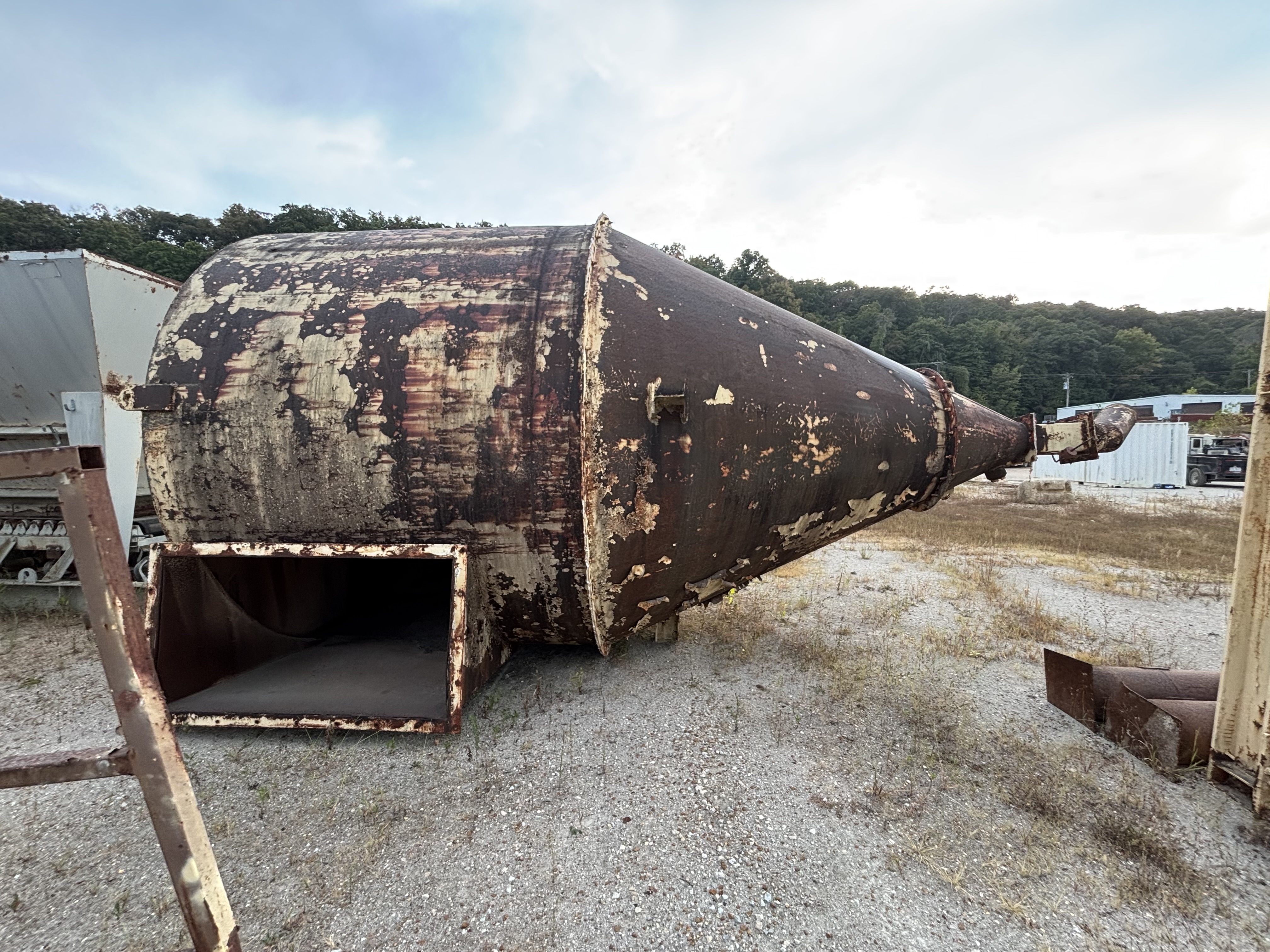

35,000acfm cyclone Came off a H&B 30,000ACFM baghouse Unit on ground and ready for loadout

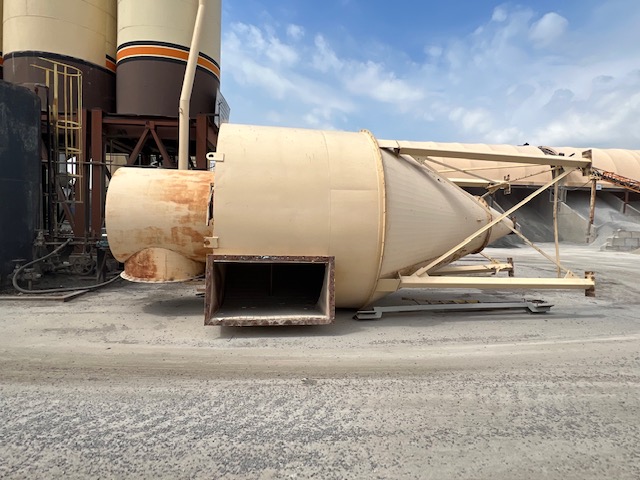

PRIMARY DUST COLLECTOR Type: Round cyclone Capacity: 60,000 ACFM Mounting: Stand included

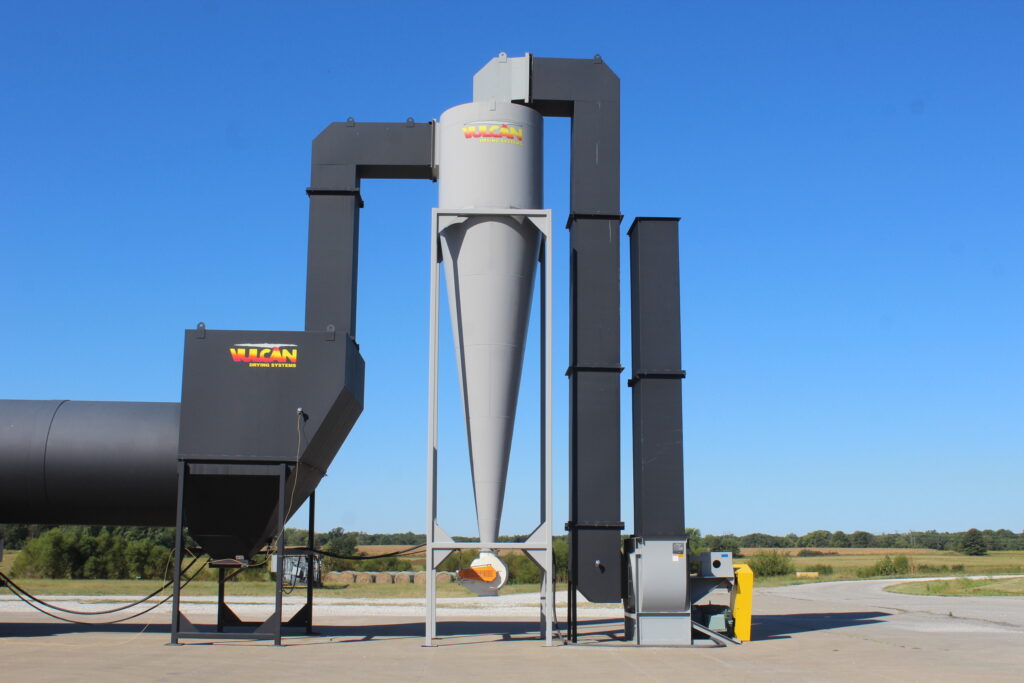

Vulcan Drying Systems 1D3D 32,371 ACFM cyclone new surplus. Body of cyclone is 10-gauge carbon steel. Structure is 1/4″ steel 4×4 box tube legs and braces. No ductwork or airlock included

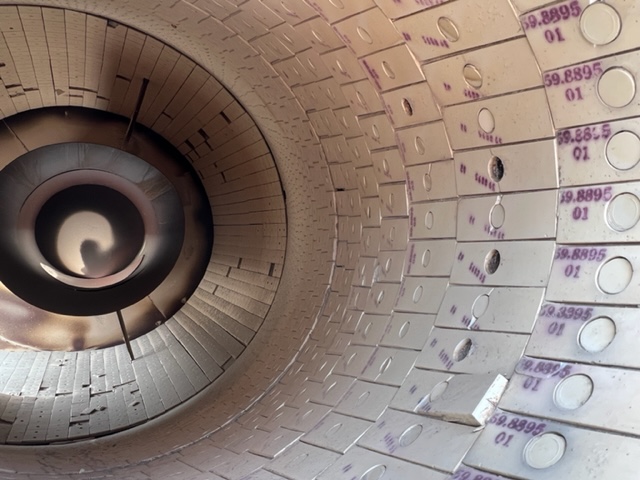

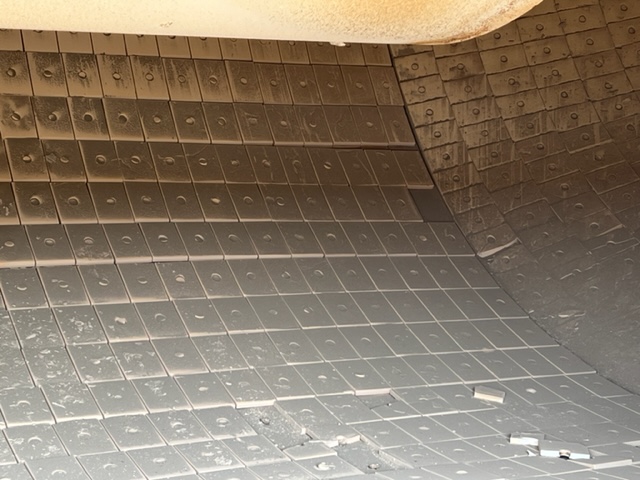

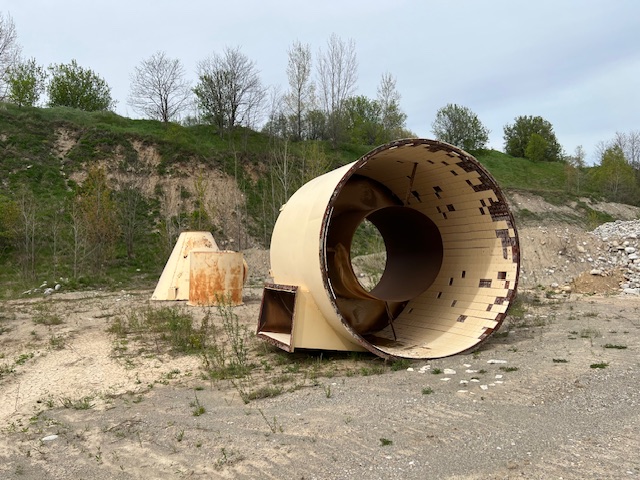

Cyclone Off 350-400tph drum plant Recently ceramically lined

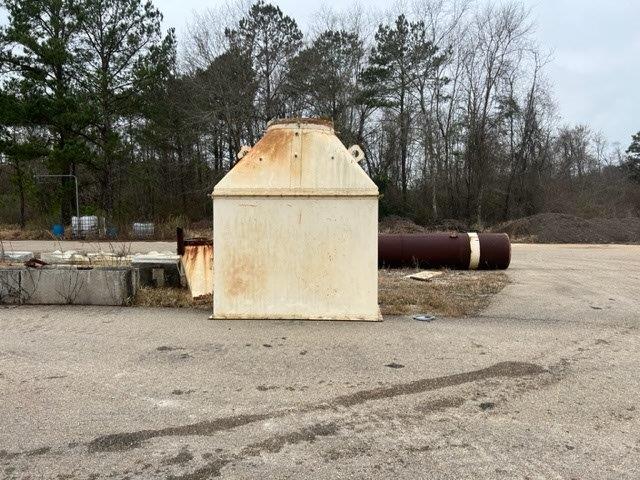

Knock Out Box: 8' x 10' Box with Hopper

### Specifications: **Make:** Barber Greene **Type**: Wet Scrubber **ACFM**: 25,000 **Portability**: Stationary **Plant Compatibility**: Removed from a DM50 Plant

### Specifications: **Make**: Barber Greene **Type:** Wet Scrubber **Capacity:** 70,000 ACFM **Portability**: Portable **Dust Discharge System**: Wet Scrubber **Fan System:** High Capacity Dual Circuit Exhaust Fan Dust Collector System, Serial Number: 14Y1UO **Fan Drive**: Dual 100 HP Electric Fan Drives **Mounting:** Mounted on Tandem Axle Drop Deck Trailer, TRAILER NOT INCLUDED **Intake**: Dual Blower Intake Ducts **Additional Features**: Water Injection, Venturi Wet Misters, Emissions stack, tube and duct attachments. **Tank Thickness**: Front – 0.21", Middle – 0.20", Back – 0.20" **Condition Note**: Trailer not included with fan **Note**: Road readiness needs to be checked by a professional.
