15 HP drives Dodge TXT gearboxes 3/8” shell Good flights 6” x 13.5” trunnions Trunnion drive Feed and outlet breaching Loaded on trucks Low tonnage through drum **No burner included**

6'x 28' stationary Drum parrell flow 4- 15hp motors no Burner flights look fair has breaching large knock out box on discharge

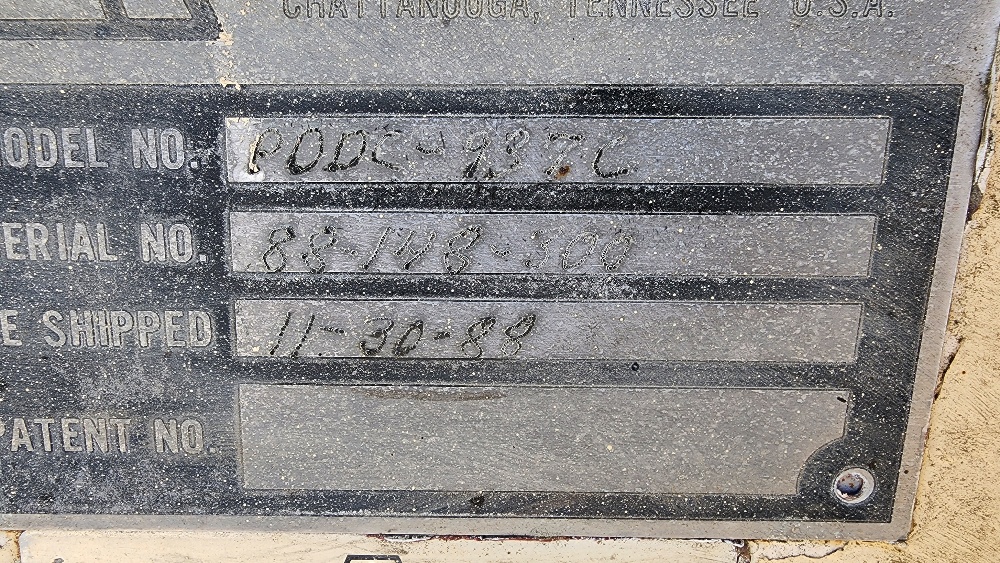

Make: Astec (Counterflow Drum) DOUBLE DRUM Model: PDDC-937C SN: 88-148-300 Year: 1988 Capacity: 300tph Double Drum Size: 9' x 37' PER TAG Portable Only 3 Axle (3 loads 1. DRUM AND FRAME- 2ND COVER, DRIVE PACKAGE, BREACHING AND CHUTES AND SPARE PARTS) Hauck SJO 480 Burner Some Shell Thicknesss .284-.310 Spare arms and tips, new chain The outer pugmill has been mostly cleaned flights a 50% new tires on axle package. Unit Dissembled and ready for loadout.

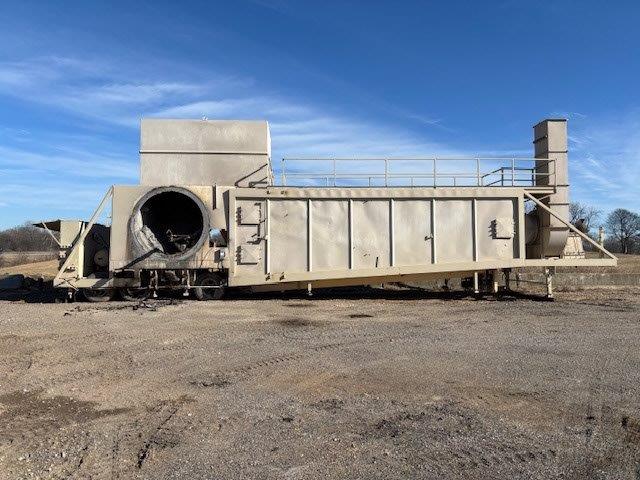

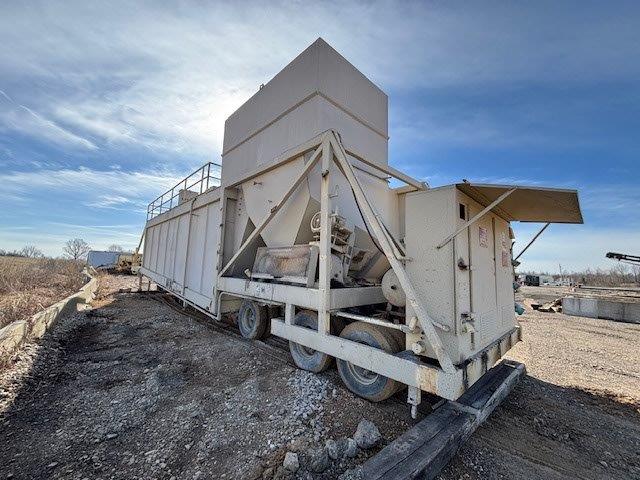

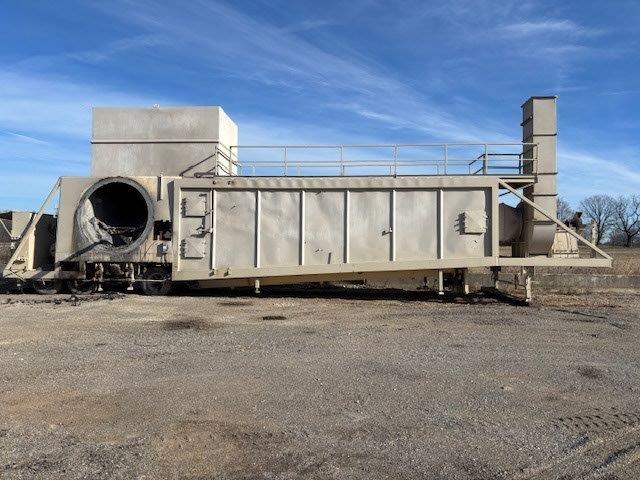

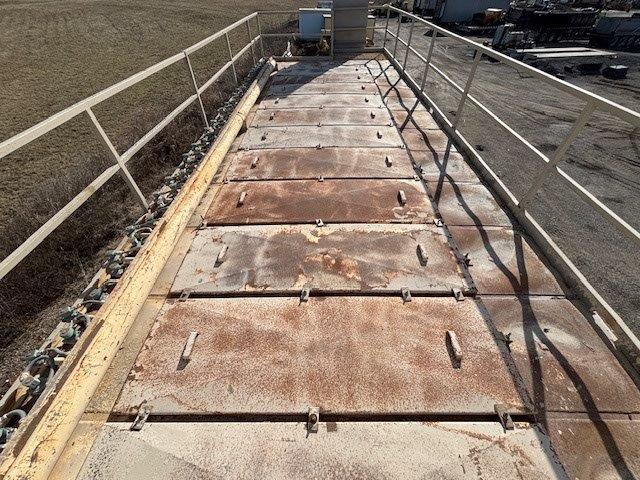

### Drum * Portable, 3-axle unit, missing rims and tires * Parallel Flow * Trunnion drive with four 25 HP motors with Dodge TXT6E reducers (two front motors are newer) * Includes RAP collar 42' x 7' dryer, thickness tested mostly at ½-inch * Older Hauck Burner with newer fan 60HP motor, ran on oil * 24'' slinger belt with a 5 HP motor * Hydraulic leveling * Includes some miscellaneous parts * Has new combustion chamber included * Shipping dimensions: 10' x 57' **Notes from Owner:** * Trunnions and tires need replacement, drum vibrated at shut down Dec 14, 2024 * Combustion chamber needs replacement, have spare one that goes with sale * Rings need replacement ### Baghouse (Approx 40,000-45,000 acfm) * Portable, 3-axle unit with G1H tires * Pulse jet, was reverse-air and made pulse-jet * Triple auger discharge with 3 HP motors and TXT3A reducers * Newer 125 HP fan motor * Shipping dimensions: 12' x 60' * Hand crank leveling jack * 777 bags * All 55 cylinders are new * All new piping * Two-year-old exhaust fan with new bearings * Coater pugmill on back of the baghouse, mixer auger 30" x 9' * Shipping dimensions: 12' x 60' **Notes from Owner:** * No starters, relays, or breakers * Includes spare bags (8 boxes)

**8'x42 Stansteel Parallel Flow Drum** **Year:** 1978 **Size:** 8x42 **Other Info:** * Chain Driven * RAP Collar * Slinger Feed * Drum was ran every year * Per the owner the drum is in "fair" shape * Drum/ burner have recently been taken down and we are waiting on updated photos from the owner. * Axle kit included, but not currently mounted on unit. **Gencor Ultraflame Burner** **Model:** UFII-135 **Serial:** UF-1512 **Year:** 1989 **MBTU's:** 135mbtu **Fuel Source:** Oil, propane pilot

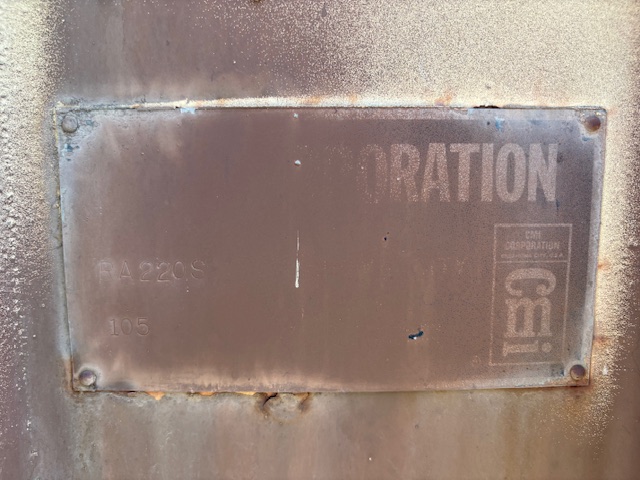

## CMI 300 TPH PF Drum * **Size**: CMI Wish Bone Drum 7' x 42' with 8’ Expanded Combustion and Mixing Zones * Newer Replacement Shell * Includes RAP Collar * Left-Hand Discharge * 24" x 12' Slinger Belt (Aggegate Feed): 5 hp motor with reducer * Hauck Burner: Model #SJO4 52 OE (*No Fan on Burner*) * PRN #: 26460 * Serial #: 111-01-09-1-00 * Stand with Walkway * Tires and Trunnions: Look good, trunnions are 10 ½ inches * Flights: Look decent * Belly Chain Driven 60% Left on Drive Gear * Single 100 hp Motor with Dodge TXT9 Reducer * Extra flights onsite, new, never installed * Thickness Measurements: (.519 / .519 / .527 / .519 / .498 / .521 / .530 / .442 / .459 / .458 / .511 / .517 / .492 / .469 / .486 / .507 / .535 / .511 / .522 / .509 / .505 / .514 / .500 / .528 / .530) ## CMI ROTO-AIR Baghouse * **Make**: CMI (2 Section Stationary Reverse Air Baghouse "Roto-Air" * **Model**: RA220s (Aprox 45-50,000 AFCM) * **Serial #**: 105 * Dimensions: 12'3" wide x 29' long * Single Auger Discharge: 7.5 hp motor with Dodge TXT4B reducer * 4 Roto-Air Sections (MISSING One of Four "1" ROTORS) * Includes Duct Work: 8' x 8' x 51' * Backwards Incline Fan (Spins Freely ) * Manual Opposing Fan Damphner * 150 hp Motor * NO BAGS OR CAGES

### Relocatable Barber Green 120 TPH Parallel Flow Drum **Drum Dimensions**: approx. 60'' x 24', new 60hp motor, new idler wheel and bearings **Condition**: Recently re-painted. Drum flights are 50%, rebuilt discharge box **Portability**: Relocatable (once was portable) **Also Included**: * 53ft long x 24" wide Weigh Bridge Conveyor (recently sandblasted and re-painted) * That feeds a 24" wide drum slinger conveyor * Cat walk and stairs up to drum's older style Hauck Jet Burner & blower, approx. 40MBTU, running on oil, new 40hp blower motor **Freight Dimensions**: * Upon purchase, the site will cut lifting eyes off of drum making it 10ft 2" tall and 9ft 1" wide ### LOADING ONTO THE BUYER'S TRUCK IS INCLUDED IN PRICE!

Portable: Parallel Flow Drum Model- DC65X211 Approx. 8' x 45' Drum 75hp Drive Package Rap Collar 4 axle Believe left hand discharge Genco 60MBTU Burner, "Hauck blower" Model- AF-60 HD Serial #- AF-470 75hp motor Unit Has Up Dated Motors Soft Starts Genco Burner Control This drum Was Used As A Dryer To Dry A Product So It Was Cleaned Out "No Asphalt Build Up In The SHELL" Drum Still has A.C. Injection Kit Installed Inside Drum Dust Auger Still Installed Has a Material Slinger Belt on the Front of Drum Unit disconnected. Roadreadiness needs to be checked. ## MAKE REASONABLE OFFER!

**Make**: Barber Greene **Mode**l: DM65 **Size:** 8' x 32' **Portable** **Parallel Flow** **Othe**r: * Thermal Insulation Package * 75 Hp Motor (Missing Reducer) * Tires and Trunnions (Good) * Drive Gear 90% (Chain Drive) * Recycle Collar * Tandem Axle (10 Lug 445x65 R225 Tires) * Hauck Burner (Missing a lot of pieces) * Has Majority of Duct Work * drum a little thin

**Cedarapids Magnum 500 Series** Year 1999 4-60hp Motors (NO GEAR BOXES) Tires and trunnions are good. Drum- 9’.5” x 52’ (Shell is in Poor Condition) Has rap collar. Flights look good. CR 150 mbtu burner, runs on oil or nat gas, fan motor Has all the stand pieces? 14’’ trunnions Thickness- .240/.164/.318/.361/.073/.361/.327/.346/.369/.361/.361/.363/.359/.404/.385/.370/.365/.352/.380/.376/.374/.305/.387 Has some new spare flights to go with? Drum is ruff has been patched and needs to still be patched in some places also has a dent by one of the tires on the drum but most wear is at the burner end of the drum. Slinger Belt 30’’x 20’ (Gas Train) Valves Shut Has all duct work WITH CYCLONE that leads to baghouse **(NO BAGHOUSE INCLUDED)** **Cyclone Info:** Dust Cyclone Cyclone Dims: 12’ x 22’ Approx Shipping Dims: 12’ x 35’ Has Rotary Airlock with Motor Empty Stationary

Port 3 axle Cedarapids 7224 Older burner Has rap collar

## **600TPH Gencor Ultra Drum** * SN: # 600UDS-60739-97-NA * Counterflow * Stationary * Year 1997 * Approx 9 Million Since New * 12' x 50' Drum Shell * Insulated Shell * Flights are in Decent Condition * Tires are in Decent Condition * Thickness: .320/.488/.486/.309/.533/.418 * Has Rap Collar * Has Ductwork, Knockout Box, and Stand * (4) 60hp Drives with Dodge Reducers * Trunnions Have been Resurfaced in the Last 5 Years * Has Gencor Ultra, 200mbtu, Dual Fuel (Currently Running on Natural Gas) * UF-II-200-60739-97-NA * Stationary * Disassembled and Ready for Loadout

CMI 9X PVM drum Portable Triple Axle Has been patched and the shell needs to be replaced Model# PVM9X SR# 104 Portable 3 axle Parallel Flow Drum Belly chain is good, so is the sprocket Flights are good Has 1 spare trunnions Motor with Drive Package Rap Collar **NO BURNER Road Readiness Needs to Be Checked Unit Will be Down on the Ground by the End of the Year 2023**

**Make:** Barber Greene **Size:** 7 x 23 **Counterflow** **Other:** * Dryer has 30hp motor * Gencor burner with 30hp motor

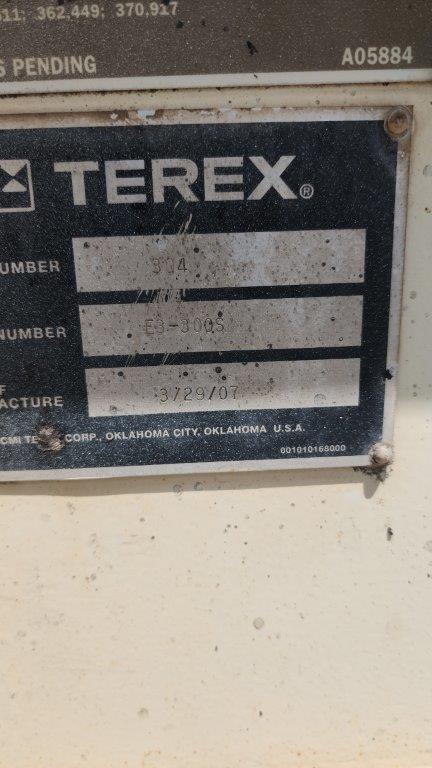

Terex 325 Drum Was Portable (Everything is on site just removed) Hauck 580 Long Nose Burner Drum 7'3" x 40' Triple Drum Drum Flights are Poor Shell has Been Relined (Otherwise Looks Good) Dodge Reducers and 25hp Motors

CMI PDM 732 SN: 136 Hauck Burner (SJO520E-111-06-06-1-02) with Fan rap Collar 100hp Fan Portable, but Not Rims or Tires Patch on Combustion Zone

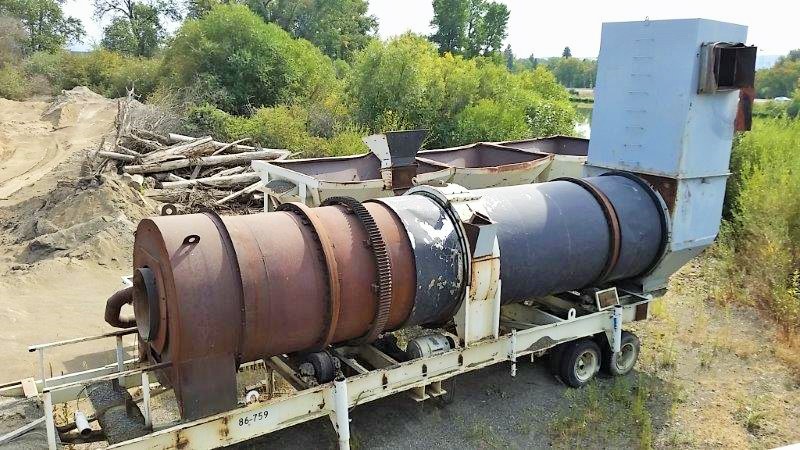

**Make**: Stansteel **Model**: DM 732R **S/N**: 1081 **Job #**: 4042 **Portable Parallel Flow** **Size**: 7' x 32' id # 86-759 **Other**: * Recycle collar and knock out box * NO DRIVE PACKAGE * Insulated Shell (One Section Missing) * NO BURNER * Tandem Axle (10 Lug "8.25-20.00 Tires)

Cedarapids Model 8828 Drum Replaced by larger drum

**Make**: CMI **Model**: SVM 9.25 **Size**: 9.25' x 42' **Stationary Parallel Flow** *No Burner No Drive Package Drum has patches*** **Other**: * Cradle chain driven *Both ends of the dryer are expanded for better combustion and mixing. * The drum sits on a 24” wide flange beam frame and includes the stationary legs set to grade. * A 30” Slinger Belt is provided for inlet of materials.

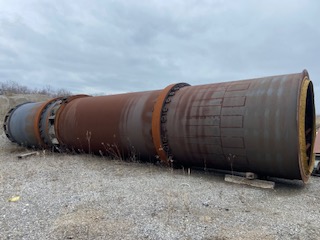

**Output**: 400TPH Drum (Shell) **Info:** * No frame * No running gear *DEMS- 47'6" x 129" Cost includes loading

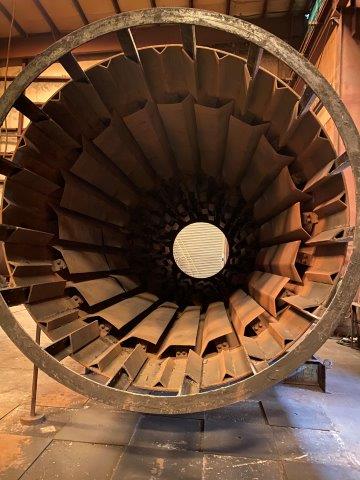

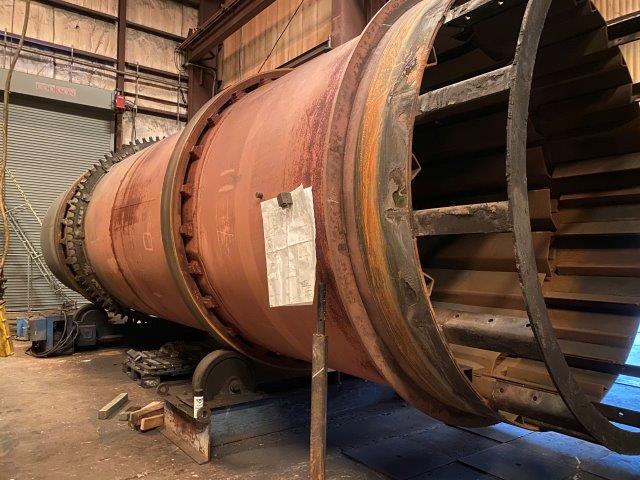

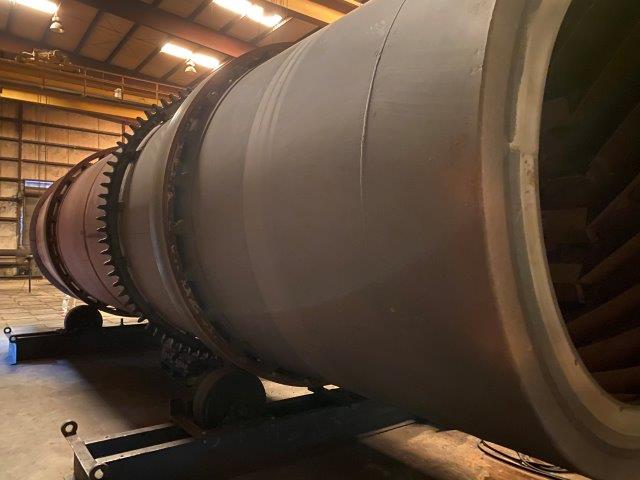

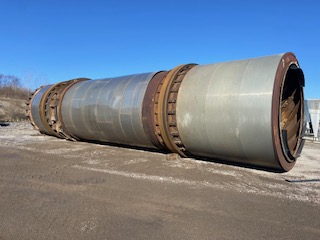

Make: Cedarapids 300tph dryer shell Model: 100" x 32' Year: 2019 Other Info: * The dryer shell is ½” A-36 except 8’ on the discharge end, which is ½” A-516-70 PVQ steel * Two tire reinforcing bands of 3/8” A -36 steel * Tires of 1045 steel seamless forged and machined * The tire closest to the discharge end has a 1” wide section that shows some wear * Complete set of dryer flights with combustion zone flights * The Combustion zone flights are not in great shape * Flights of 3/8” steel * One drum sprocket of 1045 steel for RO6214 chain NOTES- Intake end. From the edge of the shell to the center of the tire is 96”. The tire is 10” wide. Discharge end is the same Sprocket is 150” from the edge of the intake end shell to center of sprocket

**Make**: Barber Greene **Mode**l: DM-66S x 431 **Size:** 8' x 36' **Parallel Flow Stationary** **Other**: * Recycle Collar * Trunnion Drive * (4) Dodge TXT-7 Reducers * (4) 25hp Motors * Hauck SJO 580 Burner * Oil/Gas * Partial Gas Train * Some Duct Work * Down on Ground Ready to Load * Unit Has Some Buildup Inside

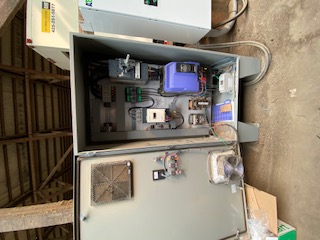

**Includes**: * EZ Blend drum control * EZ loader system (previously used on stationary silo drive thru with 4 silos) * Manual start stop station with Hauck BCS3000 embedded in the cabinet

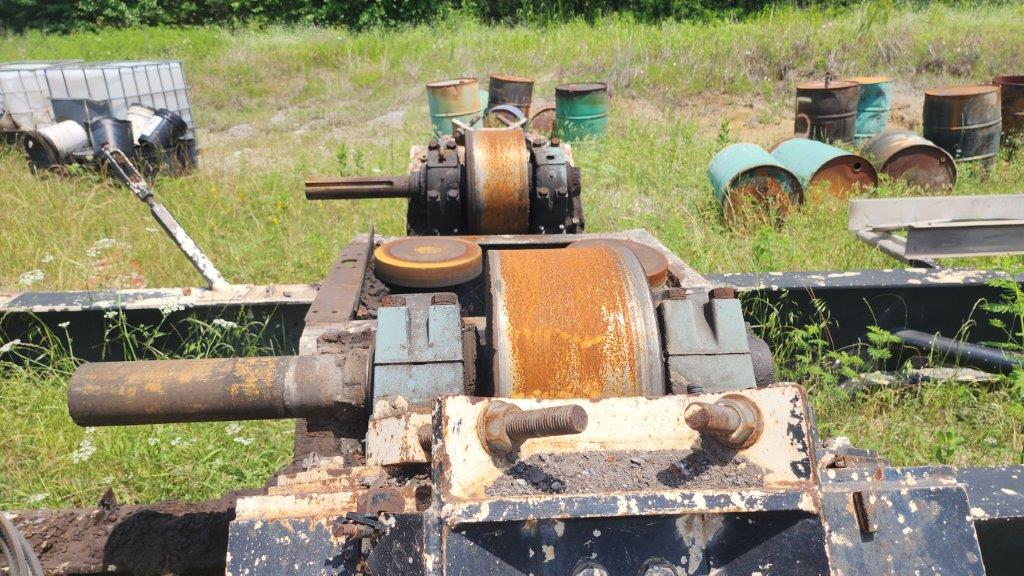

(2) Trunnions 13 1/2 inches wide 10 1/2 inches inner diameter 2 feet tall 7 1/2 inches from center ring to top 8 1/2 inch bearing hole MAKE OFFER

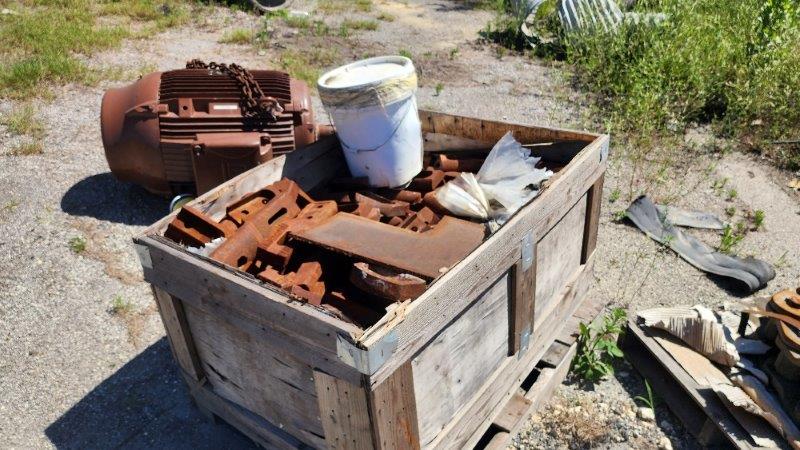

Spare Drum Parts for 400tph Double Barrel Drum Chain (470" of chain in a few sections approx 7" chain links) Some spare Trunnions Some spare Flights Gearbox (2020-Rexnord-Jupiter 7000 model) with Electric Cooling Fan.Used 1 season then new GENCOR drum put in. ## **MAKE REASONABLE OFFER**

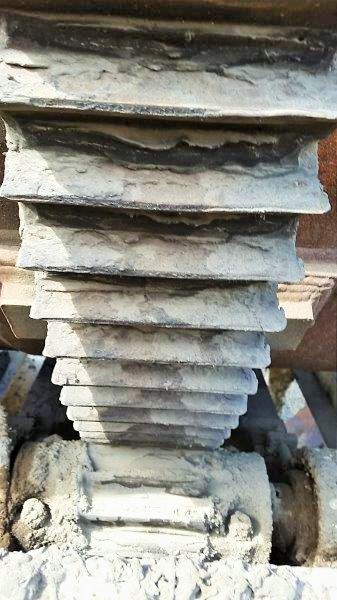

Double Barrel Drive Chain Make: Astec Year: 2001 470" of chain in a few sections approx 7" chain links Rex 1311 chain

truninons 14inch wide 4ft long shaft 5inch shaft

Dillman Mixer Model : 9020 400tph SN: DE400DD-9020-1565-07 (2) 40hp Drives 7'6'’ x 20’ Drum 400tph Flights Look Good Single Tire Design Stationary Some Ductwork Included Tire and Trunnion Look Good 15hp Fan Motor

**Size**: 32’ L x 7’ W **Portable** **Other**: * 2 axle * no burner

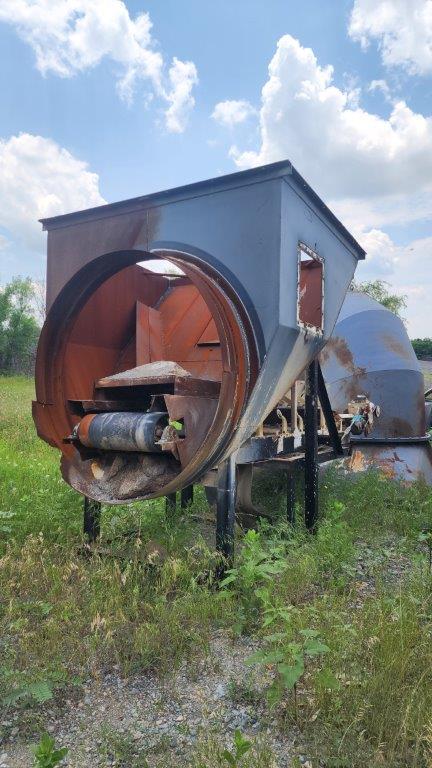

Used Rap Collar

Make: Maxam Rap Collar Was purchased new for a 9' x 30' dryer, Company purchased this unit then decided to purchase an entirely new counterflow drum. Unit was never used. Any other size drum will have to retrofit this collar to fit
