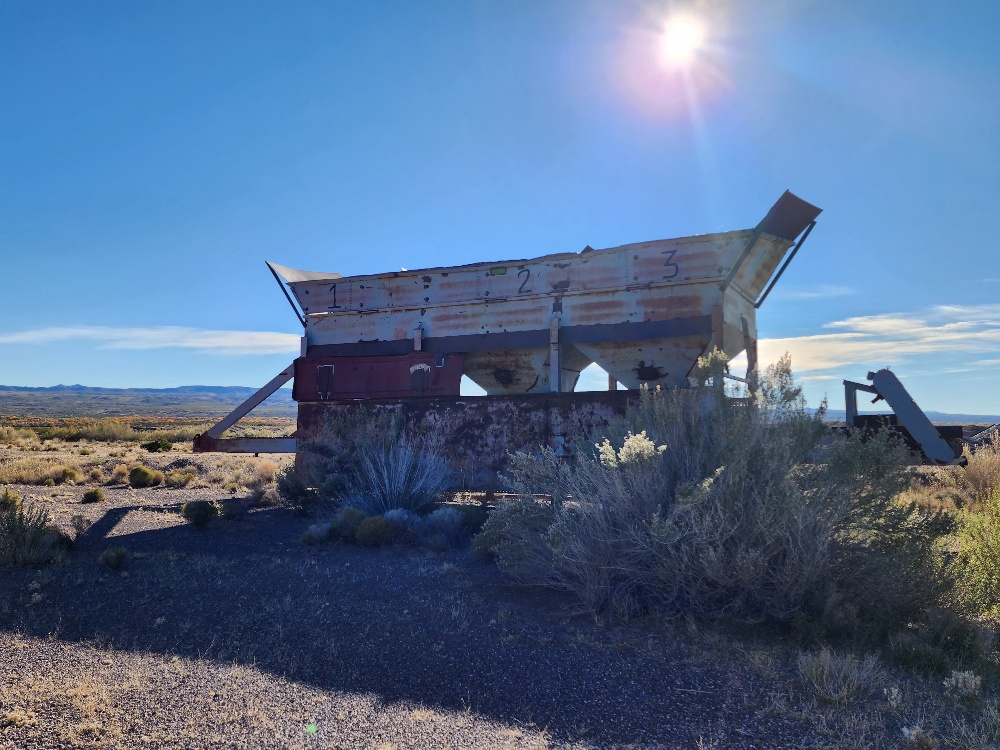

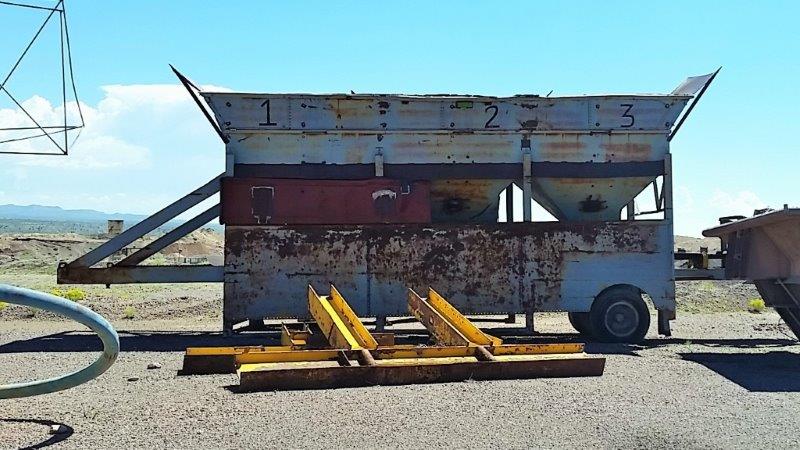

Number of Bins: 3 Bin Size: 12' X 14'
Other: Portable missing from section and king pin 2 axle Has 3 hp motors and gearbox Holds 30” feeder and gathering belts Missing belts Missing discharge stinger section 12x14 bins Rough shape
CMI Five (5) Bin Portable Cold Feed System Nominal 9’ x 13’ Top Opening / Added 5th Bin is nominal 10’ x 13’ 24” wide x 8’-6” long Feeder Belts 30” wide x nominal 86’ long nominal Collecting Conveyor 2 Axle 3hp DC Motors on Feeders No-flow and tachs Has All Motors
Make: AEC Year: 2021 (Never Used) Dimensions: 9' x 14' Motor: 5 HP Gearbox Make: DODGE TXT 225 Feeder: 24" x 7' Head & Tail Diameter: 10" Additional Features: Includes take-up Belting: (3) Piles C/W Cold Splice Vulcanized
Price is in USD and per unit. Theres 3 avaiable
Number of Bins: 4 Make: Standard Steel Size: 8' x 12' Was Portable (no rims or tires)
Other:
Number of Bins: 4 Bin Size: 10' x 12' Stationary
Other:

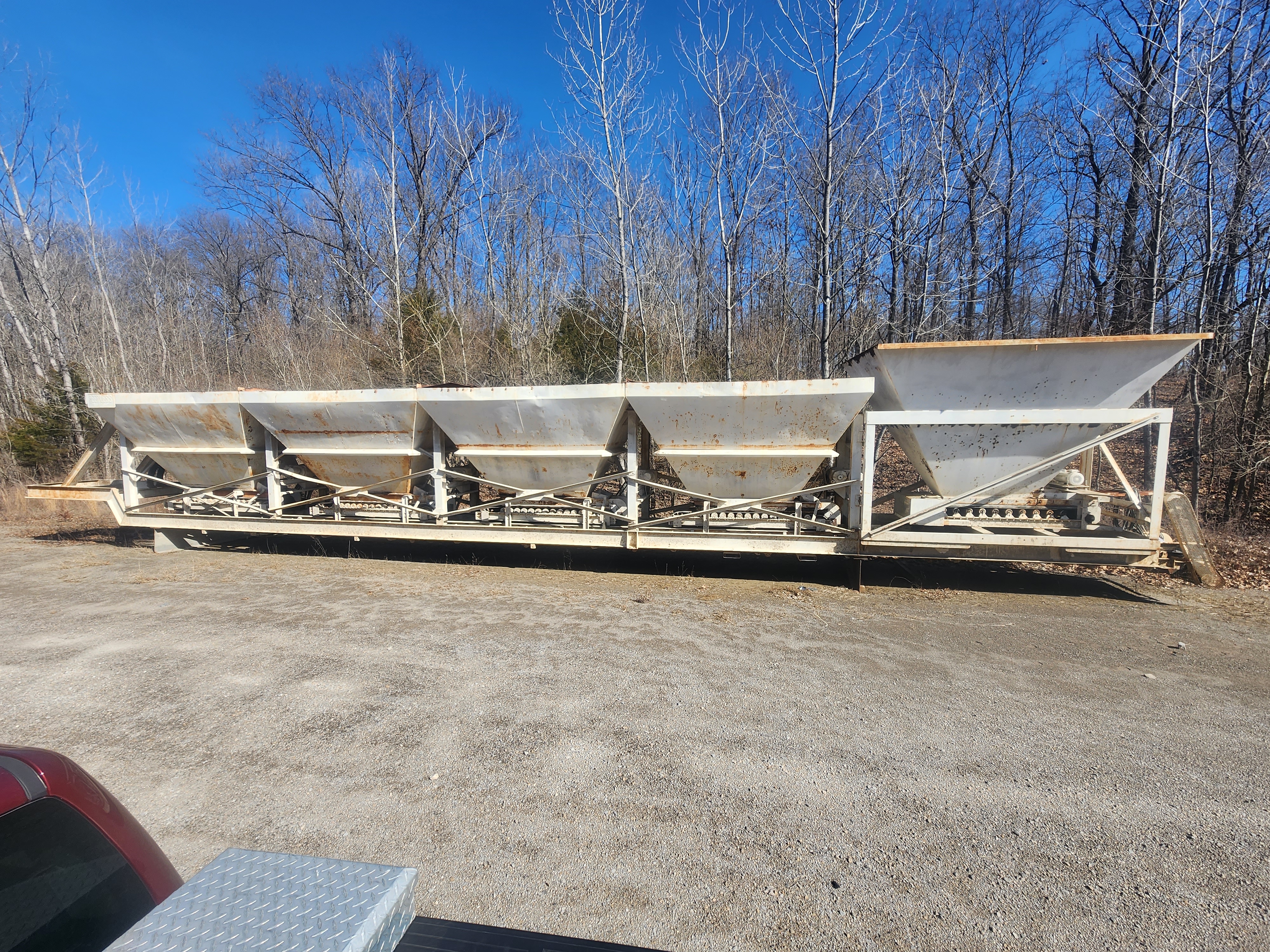

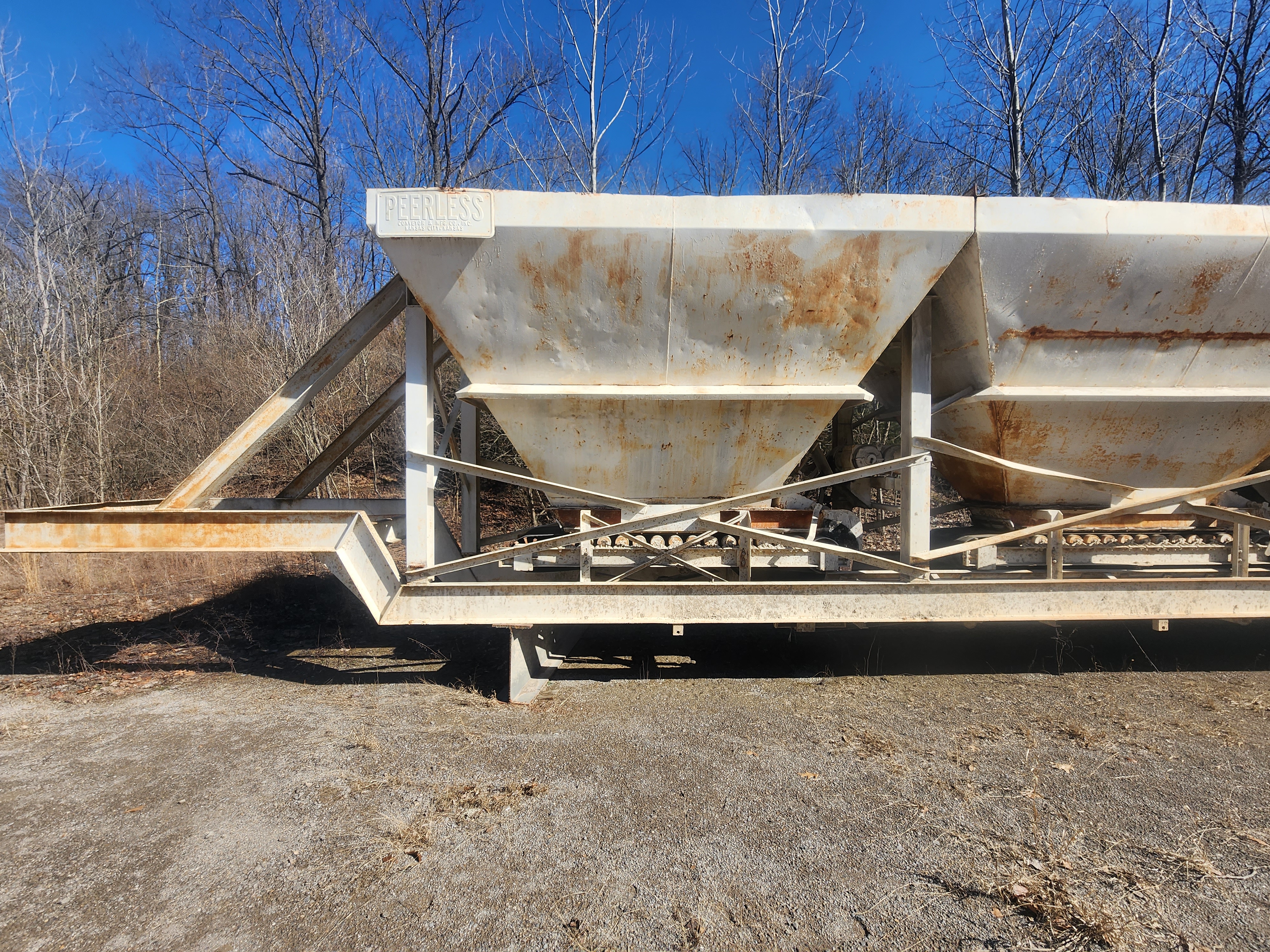

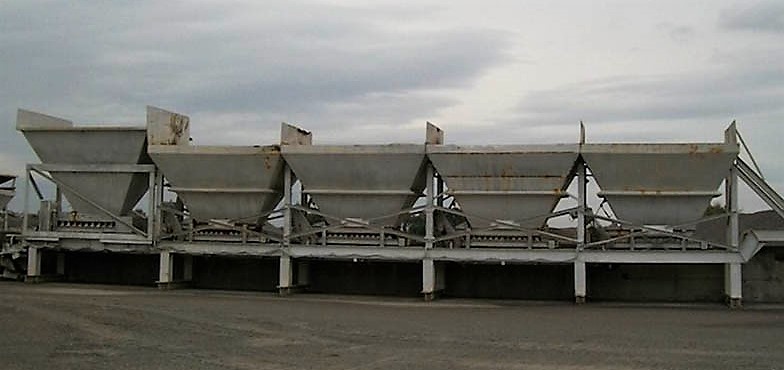

Number of Bins: 5 Make: (4) Peerless, (1) Gentec Serial Number: 6234 Stationary

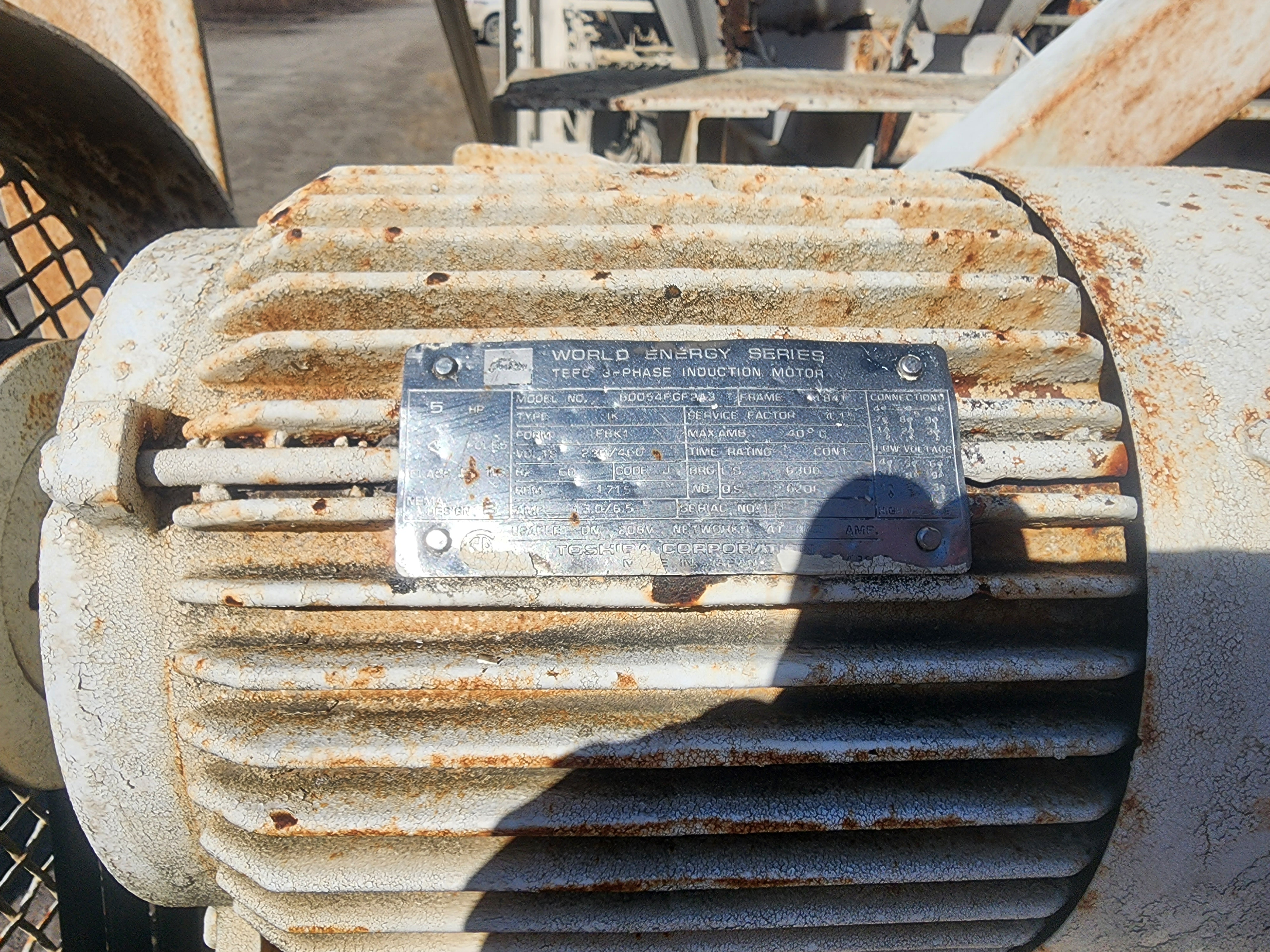

Other: Overall Dims: 9'W x 79.5'L Dims Dims: 4 Bins (9'W x 13'L) Last Bin (8'W x 14'L) 67' Conveyor Dims: 30'' Gathering Conveyor, 5hp dc drives, , World Energy Series, TEFG 3-Phase Induction Motor, Model: 60054FGF2A3 8' Feeders: 24'', 3hp AC drives, Pacemaker Motor, Model: 2263313M00, Typer: COG4B

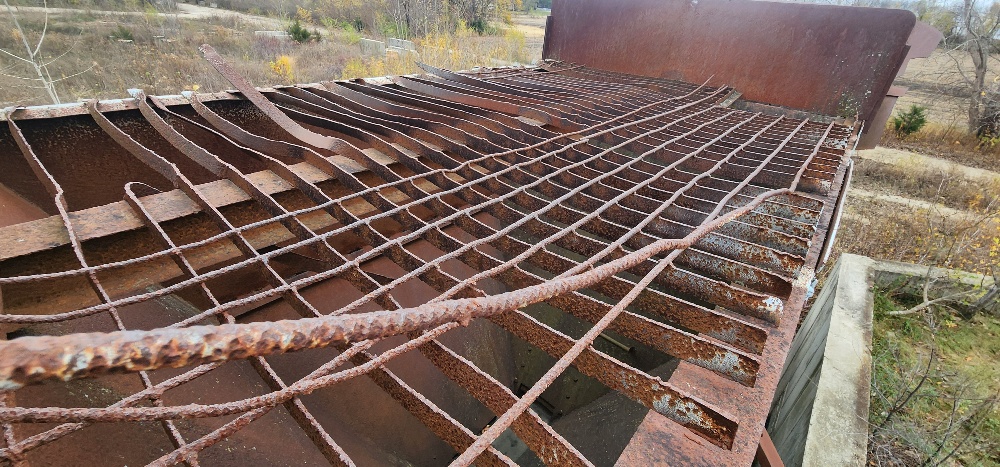

Unit has the legs stored in the bins Bins empty Has bin dividers and wire

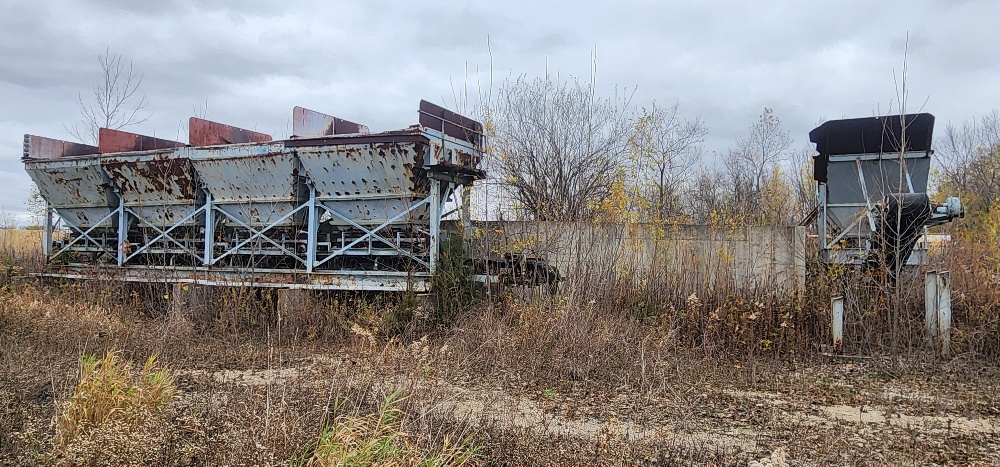

They have since been taken down in 3 sections: 1. 4-Bin Portable Section 2. 2-Bin Portable Section 3. 2-Bin Stationary Section
4 Bin Unit:
2 Bin Unit:
2 Bin Unit:
Bins approx 8x10 3hp drives 2 are AC 1 DC drives and controls for them in storage trailer gathering conveyor belt 2’ wide by 26’ long
a. Each hopper is 9’-6” wide x 14’ long with 20 tons storage capacity constructed from 1/4” thick steel plate with rectangle tube reinforcing at the hopper top and angle iron reinforcing at the hopper mid-section and bottom section; self-relieving tapered hopper bottom opening to minimize bridging; full length skirtboards with Hercules 3/4" x 6" adjustable rubber flashing to prevent leakage between hopper bottom and belt feeder; adjustable discharge gate with hand crank to control material flow from each hopper.
b. Each belt feeder is 30” wide x 8’ long with Nord 5 h.p. gearmotor drive; 12” diameter rubber lagged head pulley mounted on Dodge 2-7/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” SCM pillow block bearings; screw take-up assemblies; ICC CEMA “C” flat belt idlers with 5” diameter rolls mounted on close centers; 3 ply vulcanized endless conveyor belting. Belt speed setup for 90 fpm.
c. Collecting conveyor is 36” wide with Nord 10 h.p. gearmotor drive; 12” diameter rubber lagged head pulley mounted on Dodge 2-3/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” pillow block bearings; screw take-up assemblies; head pulley nip guards; ICC CEMA “C” 35 degree troughing idlers with 5” diameter rolls; ICC CEMA “C” return idlers with 5” diameter rolls; 2 ply conveyor belting with 3/16” x 1/16” rubber covers; Flexco 140 mechanical belt splice; 9’-6” long conveyor extension beyond the hoppers which folds for transport.
d. Portable trailer constructed of heavy duty wide flange beams which are braced for optimum rigidity; wide flange vertical beams and angle iron cross members tie all hoppers and trailer together; single axle chassis with dual 11 x 22.5 tires, air brakes, king pin, rear lighting, mud flaps and blocking pads. Includes one set of hand crank landing legs at the king pin.
e. One rust inhibitor prime coat and one finish coat gray paint for all equipment; one finish coat safety yellow paint for all guarding.
f. Electric motor control panel with main disconnect, AC Tech SMV variable speed drives for the belt feeders, branch circuit protection, fixed speed starter for the collecting conveyor, all mounted on a skid support structure bolted to the trailer frame and wired into the electric motors. All motors and electrical controls are 3 phase/460 volts/60 hertz.
Excludes bulkheads, liners, belt scrapers, grizzlies, bin extensions, bin vibrators, air cannons, flow switches, safety stop switch with pull cords, belt scales, return idler guards, PLC, permits, freight to jobsite, jobsite preparation or equipment installation.

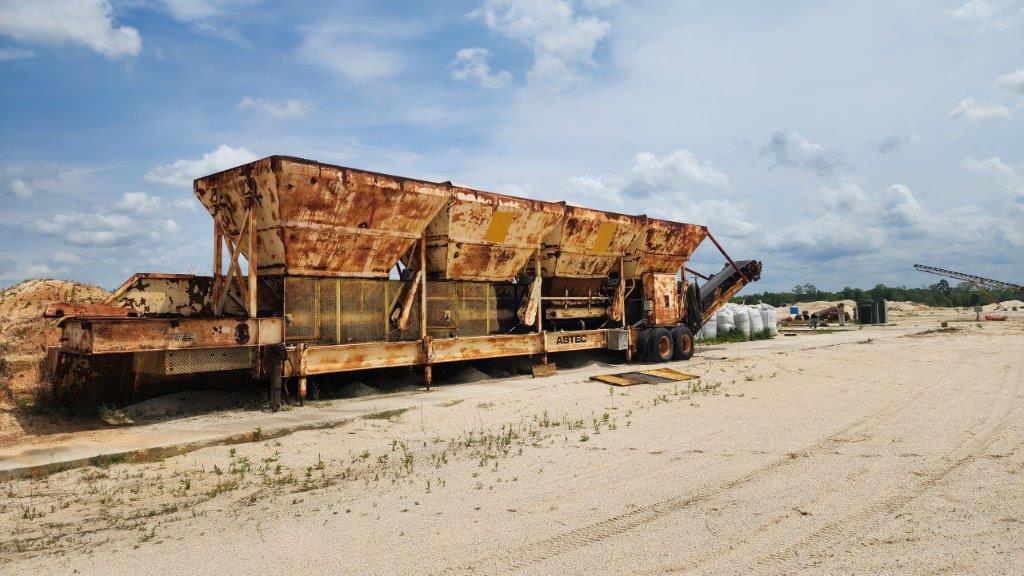

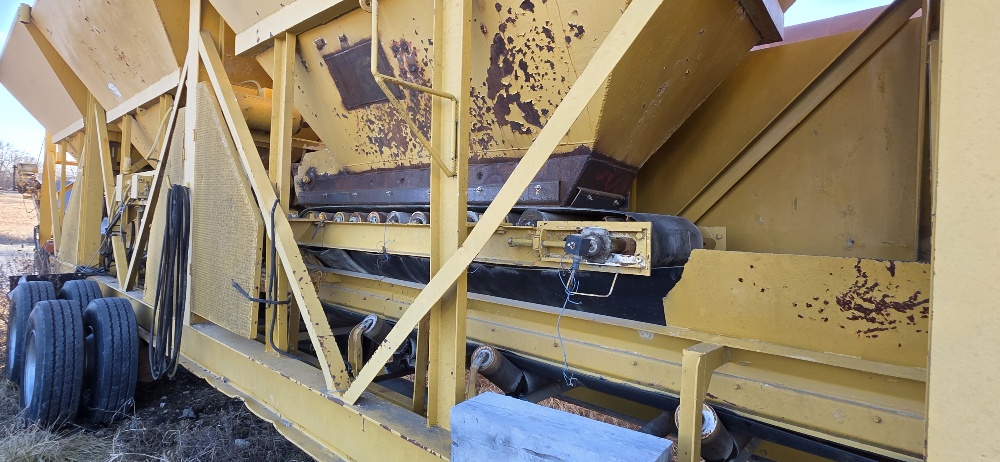

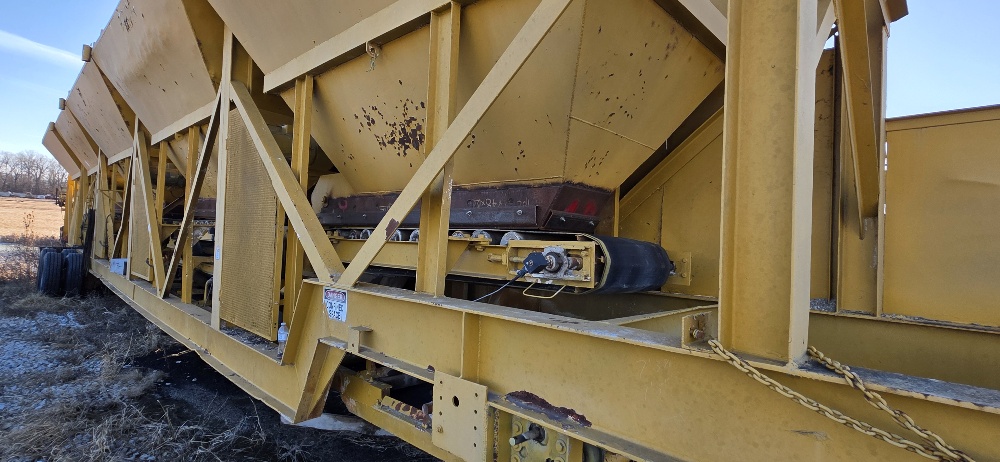

Astec 4 bin portable, 10’ x 12’, 24” feeders, 30” collector with 20’ fold down extension, 2 axles 8 tires, all electrical, built on bulkhead, Reliance 3 hp DC motors, tach feed backs, radial gates, complete NEMA box, leveling jacks.
Overall length 80’
Overall height 13’
Width 10’
Motor Size 3 hp D.C. Drives (Missing one D.C. Drive in Nema Enclosure)
The paint is awful but the bins are in very respectable condition. With a good paint job and just a small amount of work these could make a great set for a smaller contractor.
ROAD READINESS NEEDS TO BE CHECKED

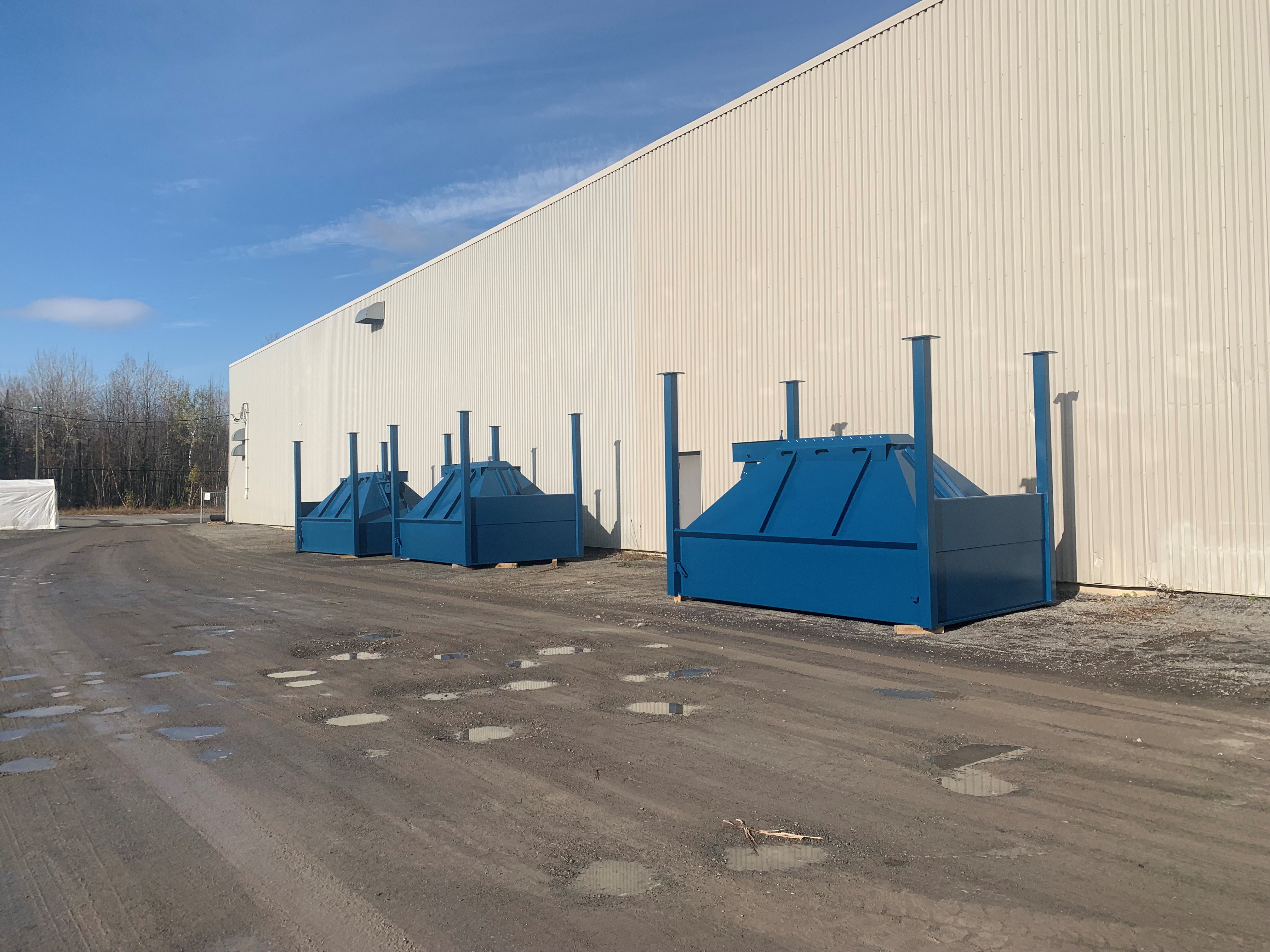

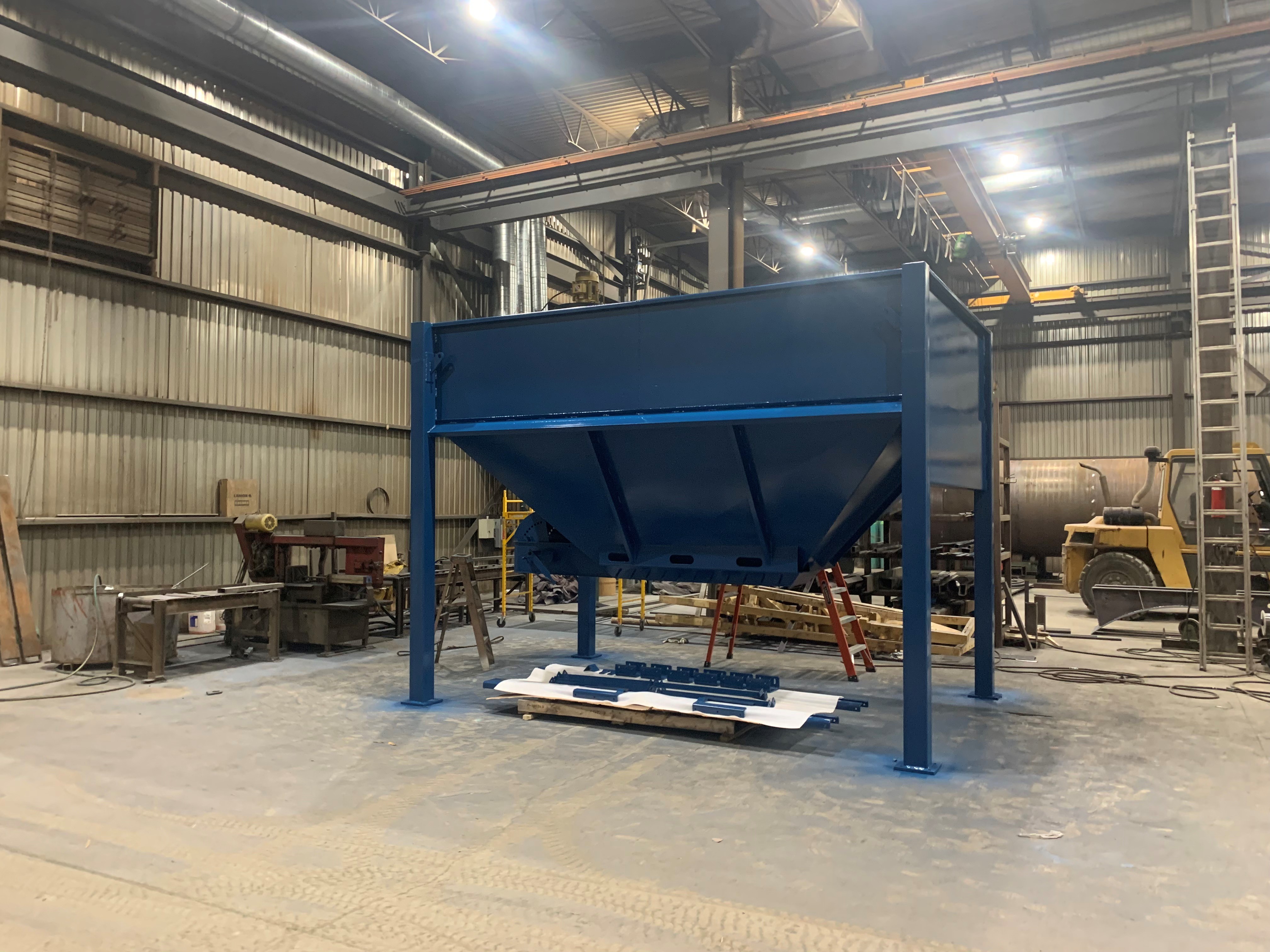

(2) Two Freestanding Hoppers with Slide Gates Size: 8' x 12'
CONVEYOR NOT INCLUDED
$16,900 EACH!
1 each - Stationary 5 Bin Cold Feed Hopper complete as follows:
a. Each hopper is 9’-6” wide x 14’ long with 20 tons storage capacity constructed from 1/4” thick steel plate with rectangle tube reinforcing at the hopper top and angle iron reinforcing at the hopper mid-section and bottom section; self-relieving tapered hopper bottom opening to minimize bridging; full length skirtboards with Hercules 3/4" x 6" adjustable rubber flashing to prevent leakage between hopper bottom and belt feeder; wrap around skirtboards with AR deflectors; adjustable discharge gate with extended hand crank to control material flow from each hopper. Includes 6” square tube in each hopper.
b. Support legs constructed of wide flange beams with square tube cross bracing; steel fabricated base plates; 3/16” steel plate bulkheads on one side of the hoppers.
c. Each belt feeder is 30” wide x 8’ long with World Wide premium efficiency 5 h.p. C face electric motor, Nord SK9042.1 right angle helical bevel gearbox; 12” diameter rubber lagged head pulley mounted on Dodge 2-7/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” SCM pillow block bearings; screw take-up assemblies; tail terminal guard and side nip guards; CEMA “C” flat belt idlers with 5” diameter steel rolls and 1-1/2” raiser brackets mounted on close centers; 3 ply vulcanized endless conveyor belting; Conveyor Components Model FS flow switch installed; belt speed setup for approx. 65 fpm.
d. Collecting conveyor is 36” wide x 74’ long with World Wide premium efficiency 15 h.p. C face electric motor, Nord SK9042.1 right angle helical bevel gearbox; 16” diameter rubber lagged head pulley mounted on Dodge 2-15/16” SCM pillow block bearings; 14” diameter self-cleaning tail pulley mounted on Dodge 2-7/16” SCM pillow block bearings; screw take-up assemblies; tail terminal guard; head pulley nip guards; CEMA “C” 35 degree troughing idlers with 5” diameter rolls; CEMA “C” return idlers with 5” diameter rolls; 2 ply conveyor belting with 3/16” x 1/16” rubber covers; Flexco 140 mechanical belt splice; 9’-6” long conveyor extension beyond the hoppers. belt speed setup for approx. 350 fpm.
e. Bolted connection between two hoppers and the collecting conveyor to accommodate truck freight and the addition of future bins.
f. One rust inhibitor prime coat and one finish coat gray enamel paint for all equipment; one finish coat safety yellow enamel paint for all guarding.
Excludes electric motor controls and wiring, bulkheads, liners, belt scrapers, grizzlies, bin extensions, air cannons, bin vibrators, agitators, safety stop switch with pull cords, belt scales, return idler guards, permits, foundations or their design, freight to jobsite, jobsite preparation or equipment installation.
CALL TODAY FOR A QUOTE
Cold Feed System 3 Bin System (Shop Made) 9' x 13' Bins 5 HP DC Motors 36" x 12' Variable Feeders Forward Facing Feeders
30" x 45' Collecting Conveyor 10hp A.C. Motor
30" x 30' Incline Conveyor 7.5 A.C Motor
43' Long, 9' Wide W/O Feeders 13' Tall
HAS MATERIAL IN THE BINS
4 Bin Cold Feed • 12’x 10’ bins • 30’’x 8’ Variable Speed Feeders • (4) 5hp drives • 32’’x 110’ Collecting Conveyor with 15hp drive • Stationary • 4 Bins
2 Bin Feed System 9' x 12' Bins 24" x 9' Feeders 40ft total length 5 HP A.C. Motor (1 Bin Missing Motor) Dodge Reducers Mounted on Skid 30" x 20' Collecting Conveyor Bin Vibrators Bin Dividers
Stationary 5 Bin CMI Cold Feed (8'x13') Make: CMI Portability: Stationary
Other Info:
1 each - Portable 4 Bin Blending Hopper complete as follows:
a. Each hopper is 9’-6” wide x 14’ long with 20 tons storage capacity constructed from 1/4” thick steel plate with rectangle tube reinforcing at the hopper top and angle iron reinforcing at the hopper mid-section and bottom section; self-relieving tapered hopper bottom opening to minimize bridging; full length skirtboards with Hercules 3/4" x 6" adjustable rubber flashing to prevent leakage between hopper bottom and belt feeder; adjustable discharge gate with hand crank to control material flow from each hopper.
b. Each belt feeder is 30” wide x 8’ long with 5 h.p. electric motor and Nord helical bevel right angle gearbox; 12” diameter rubber lagged head pulley mounted on Dodge 2-7/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” SCM pillow block bearings; screw take-up assemblies; CEMA “C” flat belt idlers with 5” diameter rolls mounted on close centers; 3 ply vulcanized endless conveyor belting. Belt speed setup for 90 fpm.
c. Collecting conveyor is 36” wide with 15 h.p. electric motor and Nord helical bevel right angle gearbox; 16” diameter rubber lagged head pulley mounted on Dodge 2-15/16” SCM pillow block bearings; 14” diameter self-cleaning tail pulley mounted on Dodge 2-7/16” SCM pillow block bearings; screw take-up assemblies; tail terminal guard; head pulley nip guards; CEMA “C” 35 degree troughing idlers with 5” diameter rolls; CEMA “C” return idlers with 5” diameter rolls; 2 ply conveyor belting with 3/16” x 1/16” rubber covers; Flexco 140 mechanical belt splice; 9’-6” long conveyor extension beyond the hoppers. Belt speed setup for 350 fpm.
d. Portable trailer constructed of heavy duty wide flange beams which are braced for optimum rigidity; wide flange vertical beams and square tube cross members tie all hoppers and trailer together; tandem axle chassis with dual 11 x 22.5 tires, air brakes, king pin, rear lighting, mud flaps and blocking pads. Includes one set of hand crank landing legs at the king pin.
e. One rust inhibitor prime coat and one finish coat gray paint for all equipment; one finish coat safety yellow paint for all guarding.
f. Electric motor control panel with main disconnect, AC Tech SMV variable speed drives for each belt feeder, fixed speed starter for 15 h.p. collecting conveyor motor, circuit breaker branch circuit protection, control power transformer, start/stop push buttons for each motor, speed potentiometer for each belt feeder, emergency stop button, selector switch for each belt feeder to run only the desired belt feeders for special blends, all mounted in a NEMA 4 enclosure; includes wiring from each electric motor to the control panel; skid mounted support structure bolted to trailer frame.
Excludes liners, bulkheads, belt scrapers, grizzlies, air cannons, bin vibrators, flow switches, safety stop switch with pull cords, belt scales, return idler guards, leveling/run on legs, permits, freight to jobsite, jobsite preparation or equipment installation.
We supply our standard guarding. We do not warrant that they will meet all MSHA, OSHA or all local codes. It is the responsibility of the end user to have them checked by a local inspector. Any changes to comply with local codes will be at the expense of the end user.
CONTACT ASI FOR THE CURRENT COST AND LEAD TIME
4 Bin 10' x 14' Bins 30" x 9' Variable Feeders 30" 60' Collecting Conveyor with 15' Foldable Singer, NO BELT 5 HP A.C Drives with Dodge Reducers bins needs relining Portable Frame (No Axles,rims or tires) No legs or stands, unit was used on a concrete pad Bins are now disconnected and staged for loadout

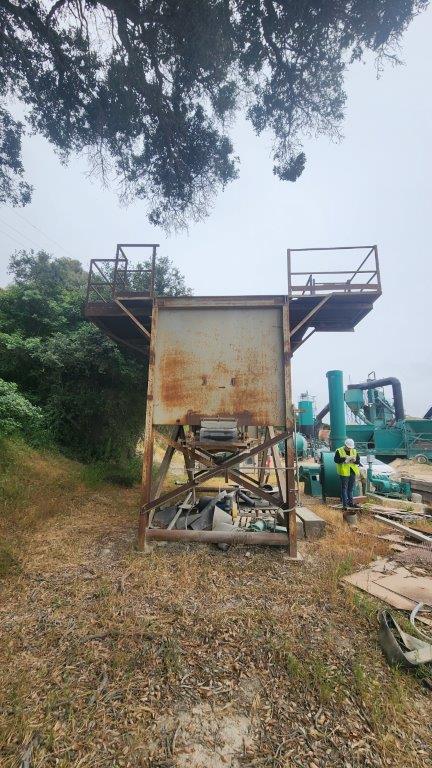

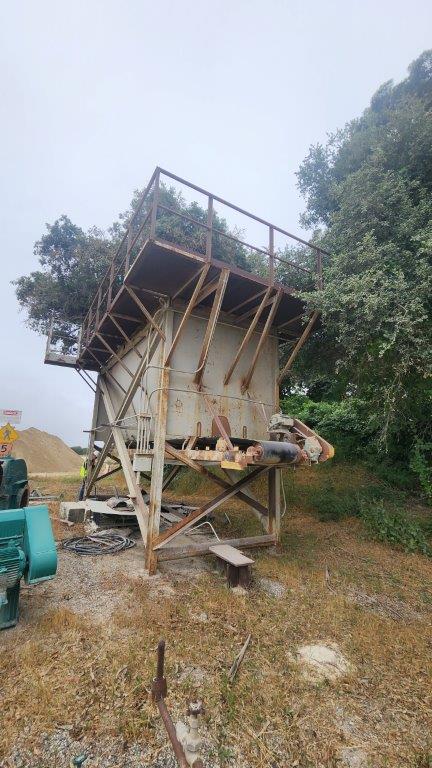

Hopper 8'x 20' Bin 30'x 23' Conveyor With Drive Package Needs To Be Relined Has Outer Walk Way
Stationary 4 Bin Tail Pully will be Reattached Prior to Loading No Motors
MAKE OFFER
Number of Bins: 3 Make: Barber-Greene Bin Size: 8' x 8' Portable
Other:
Number of Bins: 2 Bin Size: First Bin: 7' x 8' Second Bin: 7' x 16' Stationary
Other:
Number of Bins: 3 Bin Size: 10' x 13' Portable
Other:

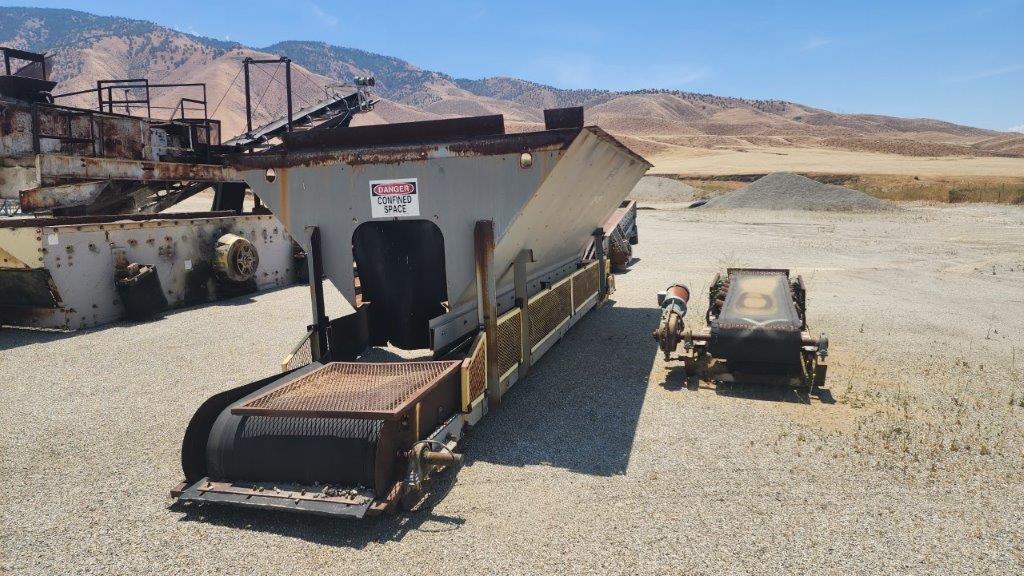

Feed Hopper 9'x 20' bin 36''x 25' conveyor (NO DRIVE PACKAGE)
1 each - Portable 3 Bin Blending Hopper/Cold Feed System, complete as follows:
a. Each hopper is 9’-6” wide x 14’ long with 20 tons storage capacity constructed from 1/4” thick steel plate with rectangle tube reinforcing at the hopper top and angle iron reinforcing at the hopper mid-section and bottom section; self-relieving tapered hopper bottom opening to minimize bridging; full length skirtboards with Hercules 3/4" x 6" adjustable rubber flashing to prevent leakage between hopper bottom and belt feeder; adjustable discharge gate with hand crank to control material flow from each hopper.
b. Each belt feeder is 30” wide x 8’ long with Nord 5 h.p. electric motor drive; 12” diameter rubber lagged head pulley mounted on Dodge 2-7/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” SCM pillow block bearings; screw take-up assemblies; CEMA “C” flat belt idlers with 5” diameter rolls mounted on close centers; 3 ply vulcanized endless conveyor belting. Belt speed setup for 90 fpm.
c. Collecting conveyor is 36” wide with Nord 10 h.p. electric motor drive; 12” diameter rubber lagged head pulley mounted on Dodge 2-3/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” pillow block bearings; screw take-up assemblies; tail terminal guard; head pulley nip guards; CEMA “C” 35 degree troughing idlers with 5” diameter rolls; CEMA “C” return idlers with 5” diameter rolls; 2 ply conveyor belting with 3/16” x 1/16” rubber covers; Flexco 140 mechanical belt splice; 9’-6” long conveyor extension beyond the hoppers which folds for transport.
d. Portable trailer constructed of heavy duty wide flange beams which are braced for optimum rigidity; wide flange vertical beams and angle iron cross members tie all hoppers and trailer together; single axle chassis with dual 11 x 22.5 tires, air brakes, king pin, rear lighting, mud flaps and blocking pads. Includes one set of hand crank landing legs at the king pin.
e. One rust inhibitor prime coat and one finish coat gray paint for all equipment; one finish coat safety yellow paint for all guarding.
f. Electric motor control panel with main disconnect, AC Tech SMV variable speed drives for the belt feeders, branch circuit protection, fixed speed starter for the collecting conveyor, all mounted on a skid support structure bolted to the trailer frame and wired into the electric motors. All motors and electrical controls are 3 phase/460 volts/60 hertz.
Excludes bulkheads, liners, belt scrapers, grizzlies, bin extensions, bin vibrators, air cannons, flow switches, safety stop switch with pull cords, belt scales, return idler guards, freight to jobsite, jobsite preparation or equipment installation.
We supply our standard guarding. We do not warrant that they will meet all MSHA, OSHA or all local codes. It is the responsibility of the end user to have them checked by a local inspector. Any changes to comply with local codes will be at the expense of the end user.
CALL TODAY FOR A QUOTE

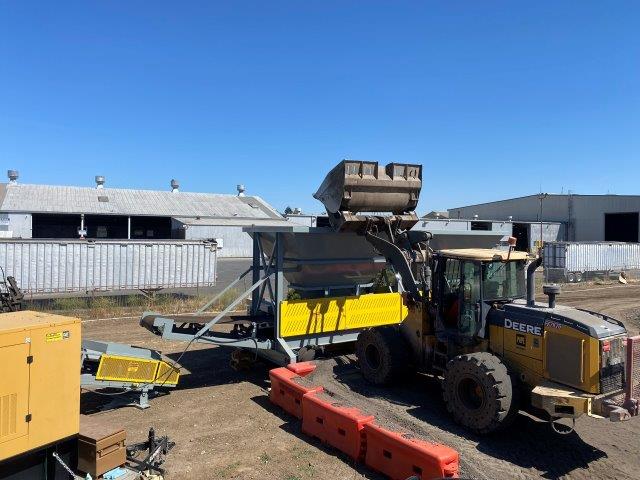

1 each - NEW Front End Loader Hopper with Belt Feeder, Model 101-36 complete as follows:
a) 14’-5” wide hopper opening with 18 tons struck storage capacity (based on material weighing 100 lbs/cu ft.); hopper constructed of 1/4” thick steel plate with 6” x 4” rectangular tubing at the top of the hopper and angle iron reinforcing at the mid-section and bottom section; self-relieving tapered hopper bottom opening to minimize bridging; full length skirtboards with Hercules 3/4" x 6" adjustable rubber flashing to prevent leakage between hopper bottom and belt feeder; radial discharge gate to control material flow from the hopper; bolt on wing extensions. b) Heavy duty semi-portable support structure constructed of 4” x 4” square tubing with wide flange beam skid frame. 6’ tall bulkhead on both sides of structure. c) 36” wide roller belt feeder with Nord inverter duty 15 h.p. gearmotor drive; 16” diameter rubber lagged head pulley mounted on 3-7/16” diameter 1045TGP shafting; head pulley nip guards; 8” diameter snub pulley mounted on 1-15/16” diameter 1045TGP shafting; snub pulley guard; 16” diameter self-cleaning tail pulley mounted on 2-7/16” diameter 1045TGP shafting; Dodge SCM pillow block bearings; screw take-up assemblies; tail terminal guard; CEMA “C” 5” diameter conveyor idlers mounted on close centers; heavy duty 4 ply conveyor belting with 1/4” x 1/16” rubber covers and Flexco mechanical belt splice; Flexco Rockline belt scraper with urethane blade. d) One rust inhibitor prime coat and one finish coat gray enamel paint for all equipment; one finish coat safety yellow enamel paint for all guarding.
e) Variable speed drive wired into main disconnect and mounted on a skid structure.
Excludes liners, safety stop switch with pull cords, belt scale, bin vibrators, flow switch, grizzly, permits, freight to jobsite, jobsite preparation or equipment installation.
CALL TODAY FOR A QUOTE

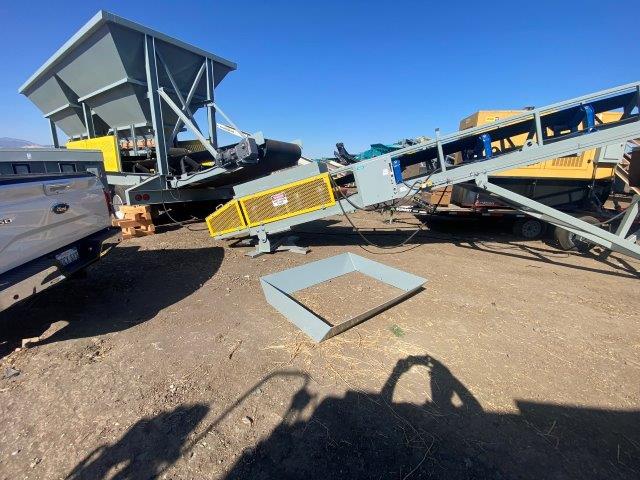

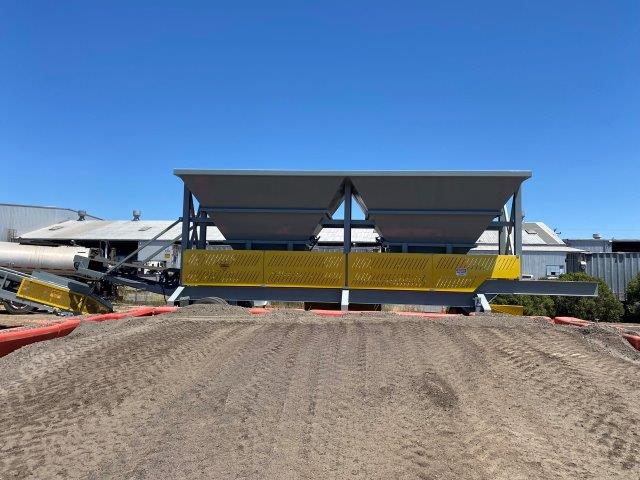

1 each - Portable 2 Bin Blending Hopper, Model 108-2P complete as follows:
a. Each hopper is 9’-6” wide x 14’ long with 20 tons storage capacity constructed from 1/4” thick steel plate with rectangle tube reinforcing at the hopper top and angle iron reinforcing at the hopper mid-section and bottom section; self-relieving tapered hopper bottom opening to minimize bridging; full length skirtboards with Hercules 3/4" x 6" adjustable rubber flashing to prevent leakage between hopper bottom and belt feeder; adjustable discharge gate with hand crank to control material flow from each hopper.
b. Each belt feeder is 30” wide x 8’ long with Nord 5 h.p. gearmotor drive; 12” diameter rubber lagged head pulley mounted on Dodge 2-7/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” SCM pillow block bearings; screw take-up assemblies; ICC CEMA “C” flat belt idlers with 5” diameter rolls mounted on close centers; 3 ply vulcanized endless conveyor belting. Belt speed setup for 90 fpm.
c. Collecting conveyor is 36” wide with Nord 10 h.p. gearmotor drive; 12” diameter rubber lagged head pulley mounted on Dodge 2-3/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” pillow block bearings; screw take-up assemblies; head pulley nip guards; ICC CEMA “C” 35 degree troughing idlers with 5” diameter rolls; ICC CEMA “C” return idlers with 5” diameter rolls; 2 ply conveyor belting with 3/16” x 1/16” rubber covers; Flexco 140 mechanical belt splice; 9’-6” long conveyor extension beyond the hoppers which folds for transport.
d. Portable trailer constructed of heavy duty wide flange beams which are braced for optimum rigidity; wide flange vertical beams and angle iron cross members tie all hoppers and trailer together; single axle chassis with dual 11 x 22.5 tires, air brakes, king pin, rear lighting, mud flaps and blocking pads. Includes one set of hand crank landing legs at the king pin.
e. One rust inhibitor prime coat and one finish coat gray paint for all equipment; one finish coat safety yellow paint for all guarding.
f. Electric motor control panel with main disconnect, AC Tech SMV variable speed drives for the belt feeders, branch circuit protection, fixed speed starter for the collecting conveyor, all mounted on a skid support structure bolted to the trailer frame and wired into the electric motors. All motors and electrical controls are 3 phase/460 volts/60 hertz.
Excludes bulkheads, liners, belt scrapers, grizzlies, bin extensions, bin vibrators, air cannons, flow switches, safety stop switch with pull cords, belt scales, return idler guards, PLC, permits, freight to jobsite, jobsite preparation or equipment installation.
CALL TODAY FOR A QUOTE

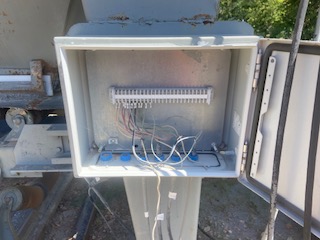

EZ Blend Cold Feed Bin Control Panel Controller Box
