Sand/Aggregate Drying Systems For Sale

Stationary 200tph Partial Sand Plant

Location: LA
Condition: USED

View Details

175 - 200 TPH Astec Sand Drying Plant

Location: LA
Condition: USED

View Details

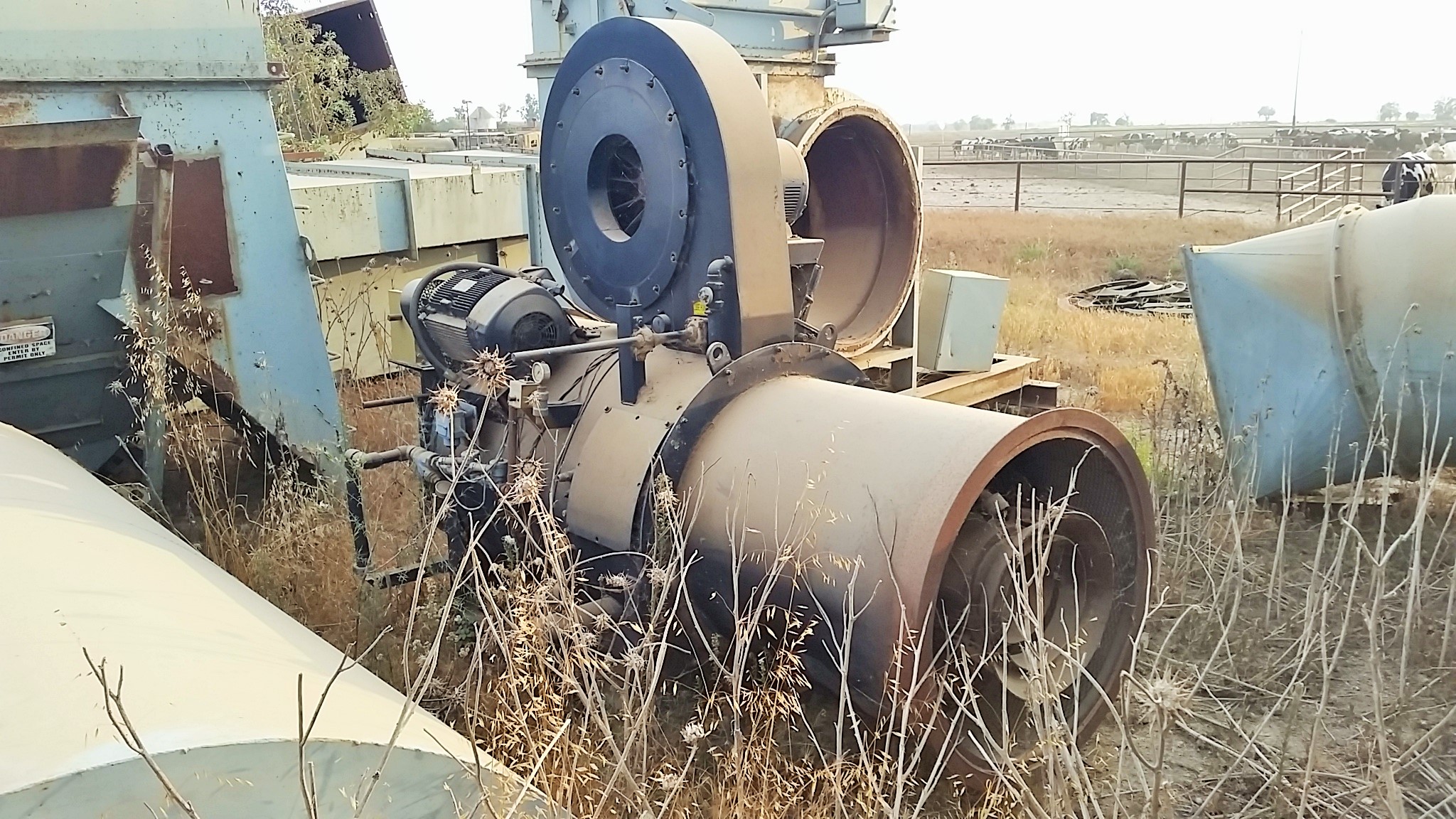

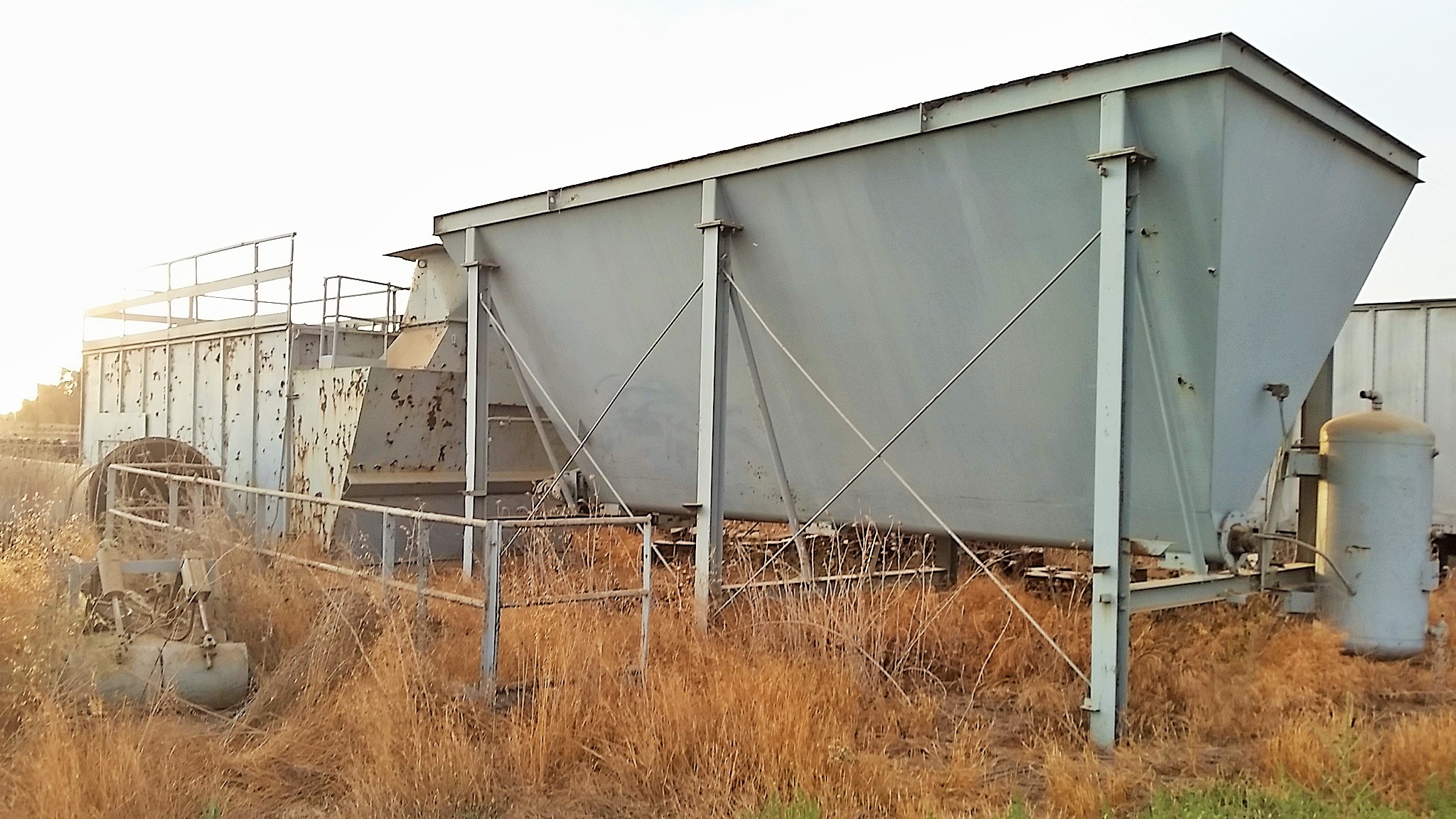

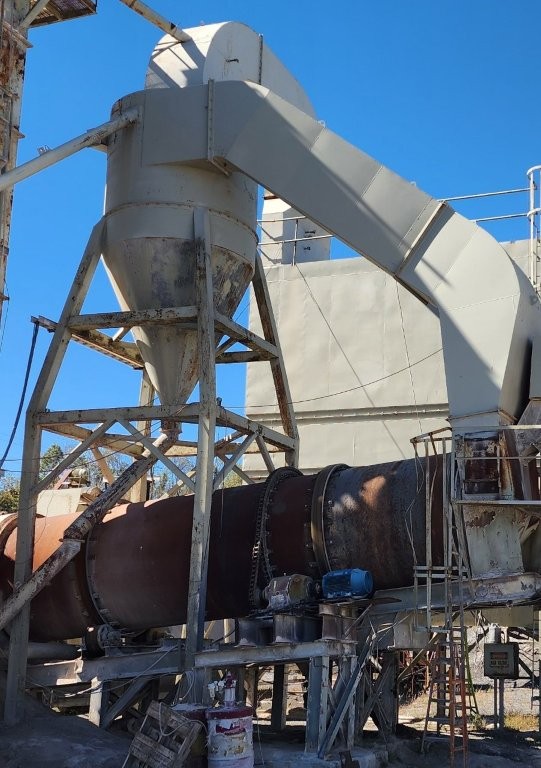

Stationary (8'x32') Standard Steel Dryer and baghouse

Location: Winton, CA
Condition: USED
Price: $65,500.00

View Details

Stationary 200tph Partial Sand Plant

Inventory #: SND2838

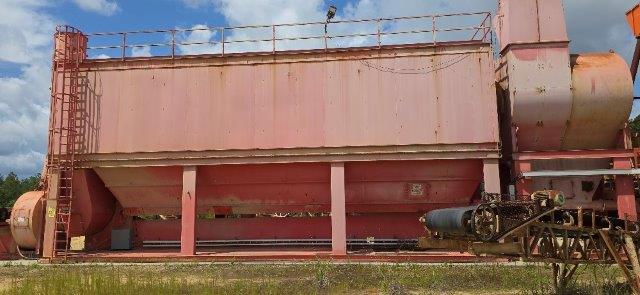

**COUNTERFLOW AGGREGATE DRYER** Dimensions: 8’ diameter x 30’ long shell Entry: Materials enter via gravity chute with reject chute on dryer breaching Shell Thickness: Excellent condition — .425" average Flights: Fair condition Drive: Chain drive system powered by 75 HP motor through Rex gearbox Burner: Hauck SJO 360 with 75 HP blower — diesel or natural gas, Maxon gas train, appears in good condition Stationary: Dryer down on ground, ready for load-out Seller will load onto buyer’s truck **Price if Purchased Separately: $38,900.00** **STANDARD HAVENS BAGHOUSE** Era: 1990’s Model: Magnum size 28 Bags: 448 total Bag dimensions: 6” x 16’ long Filtration: Nominal cloth area: 12,096 sq. ft. Capacity: 66,000 CFM @ 5.5 CFM/sq. ft. Construction:3/16” bent plate including tube sheet (rigid, long-lasting) All bags accessible from top of unit Large volume design for dust drop-out before filtration Access & Components:Side walkway for accessing double-diaphragm Goyen valves Outlet duct with Astec fan, 200 HP premium efficiency motor, damper, and stack Large air holding tank piped to unit (no compressor) Hopper section is skid mounted for ease of moving and reassembly 12” diameter screw in bottom of hopper, driven by 5 HP motor Heavy-duty mesh screen over auger Large hopper access door Condition:Above average condition Sandblasted and painted before plant shut down Needs fresh coat of paint Unit down on ground, ready for shipment Owner will load onto buyer’s trucks **Price if Purchased Separately: $77,750.00** **COLD FEEDS** Type: Four-compartment (4) cold feed system Specifications: 10’ x 8’ top openings with bin extensions and dividers 24” side walkway Bins have 24” wide x 9’ long belt feeders, powered by 3 HP A.C. motors 4 A.C. inverters & controllers included Collecting conveyor: 30” x 45’ Condition: Average **Price if Purchased Separately: $49,500.00** **PRIMARY DUST COLLECTOR** Type: Round cyclone Capacity: 60,000 ACFM Mounting: Stand included **Price if Purchased Separately: $13,500.00**

Location:

Condition:

USED

More Photos:

Stationary 200tph Partial Sand Plant (2 of 4)

Stationary 200tph Partial Sand Plant (3 of 4)

Stationary 200tph Partial Sand Plant (4 of 4)

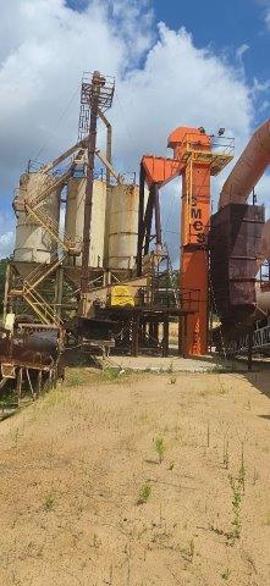

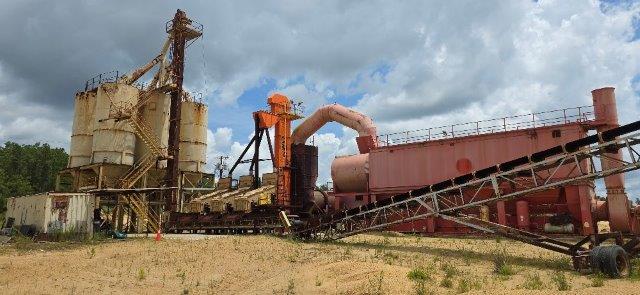

175 - 200 TPH Astec Sand Drying Plant

Inventory #: SND2823

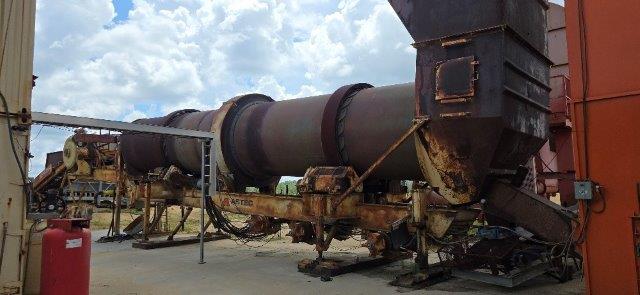

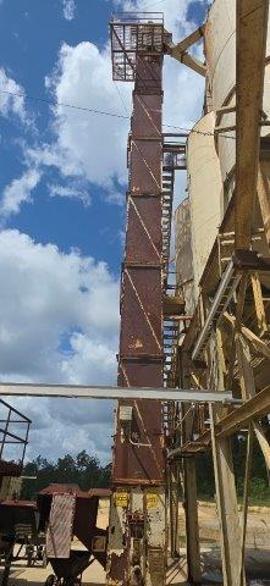

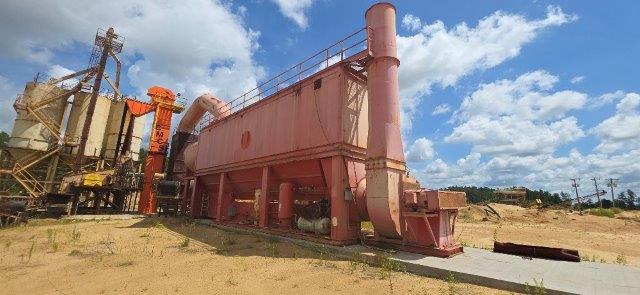

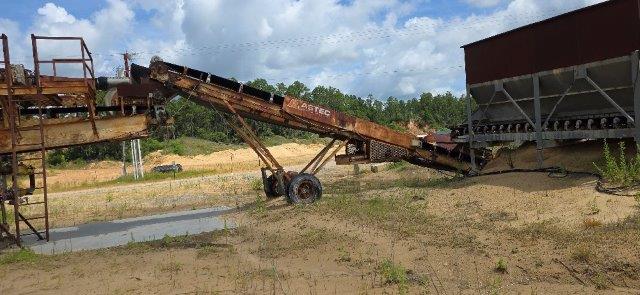

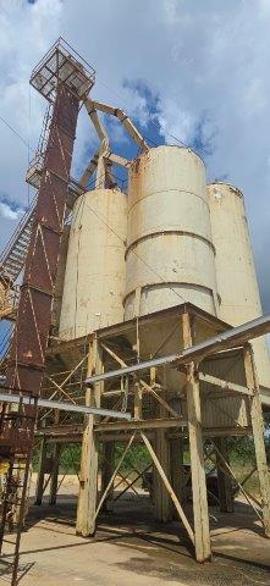

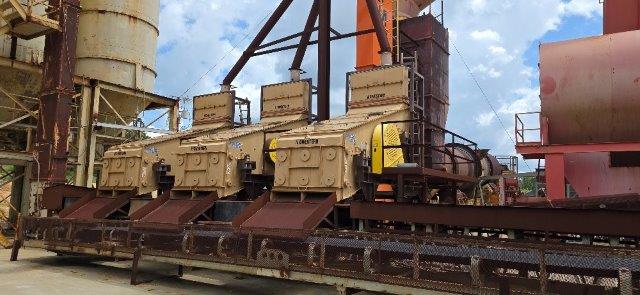

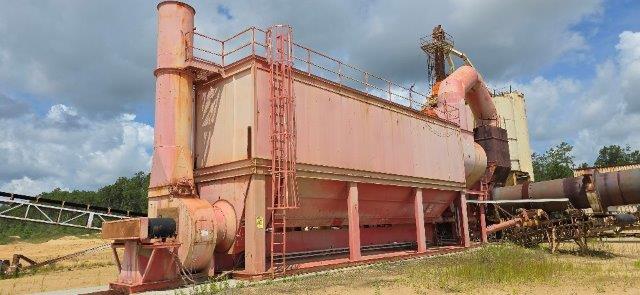

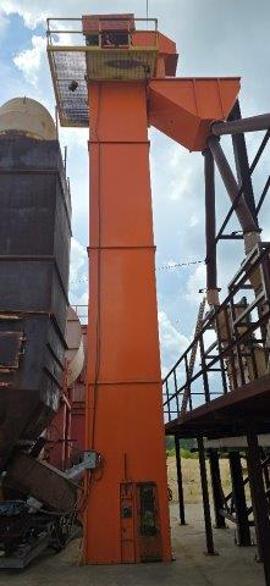

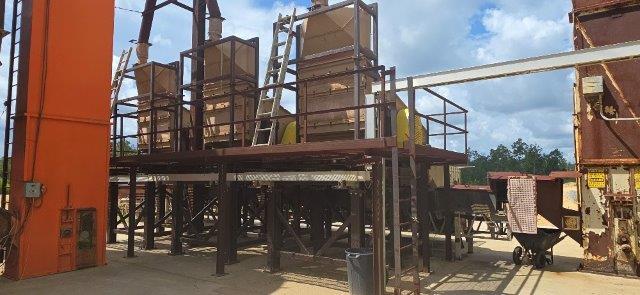

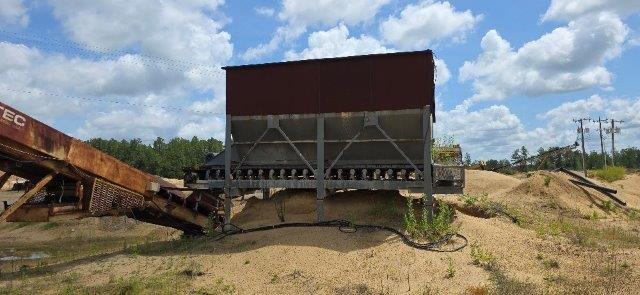

**Feed System:** Make: Custom Built Feed Bin Size: 8’ x 16’ Number of Bins: Single Variable Speed Feed Conveyor: 36’’ x 20’ Astec Incline Weigh Bridge: Portable, 30’’ x 50’ **Dryer:** Make: Astec Year: 8-85 Model: PDM742F 30" Slinger Feed Conveyor Trunnion Drive: (4) 25hp Motors Size: 7’ x 42’ Parallel Flow Drum (Converted To A Dryer) Shell Thickness: Average of .300 Elongated Knockout Box on Rear Duct From Drum To Baghouse Portable "Triple Axle" Hydraulic Erection Legs with Hydro Pump Kit Reject Conveyor 30" x 40' Burner Make: Hauck Burner Model: SJO-4360A-111-06-03-02 Burner Serial Number: 85-117-3 Fuel Source: Natural Gas PRN: 24925 Fan: 75hp **Baghouse:** Make: Astec Model: RBH67DB SN: 99064-3001 ACFM 64,000 Pulse Jet Stationary, Skidded Motors: (2) 125hp Motors Separate Cyclone Pre Cleaner From Elongated Knockout Box and Duct Work Single Auger In Baghouse Hopper Single Auger Discharge, (1) 24" x 40' Discharge Conveyor for Waste Material Most Doors Replaced with Stainless Steel Compressor: 20hp Rotary Compressor W/ Extra Air Storage Tanks **Dried Sand Elevator To Screens:** Bucket Size: 40’T Bucket Size: 18'' x 10'' Rubber Belt Small Holding Hopper to Screen Feed Chutes **Sand Screening:** (3) Three Screens: Make: Midwestern Year: 2023 Screen Size: 5’ x 10’ Screen Decks: 2 SN: 0123-5106 Model: MEV510-2 30’’ x 45’ Reject Horizontal Conveyor To a 30" x 70' Incline Non-Powered Stacking Conveyor 24’’ x 45’ Feed Conveyor from Screen to Bucket Elevator For Screened Sand **Astec Bucket Elevator Screened Sand:** Make: Astec 80’ Long 12'' x 7’ Buckets with Rubber Belts **Sand Storage:** Quantity: 6 Silos Type: Sand Silos Capacity: (5) 200 Ton and (1) 150 Ton Gravity Fed Pneumatic Ram Discharge 12’ x 13’ Base **Control House:** Top Box with 280 Degree View Size: 8’ x 20’ Type: Conex Box Manual Start/Stop – Burner/Baghouse/Load Out Controls Bucketed Starters, Relay Cabinet **Second Conex Box:** Located Under the Control House, Used for Quality Control Gibson Screen and Misc Other Items **Parts Box:** Miscellaneous Parts Bags, Motors, Rollers and Cans, etc. **Other:** Above Ground Wire in Cable Trays Newer Electrical Components Plant Appears Empty 2023 Screening System ## CALL FOR PRICING

Location:

Condition:

USED
