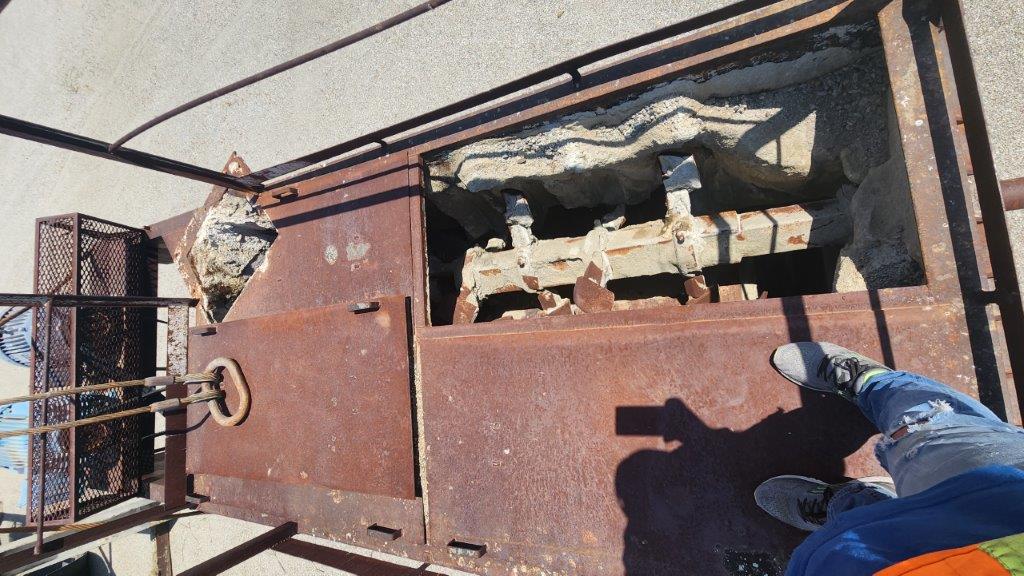

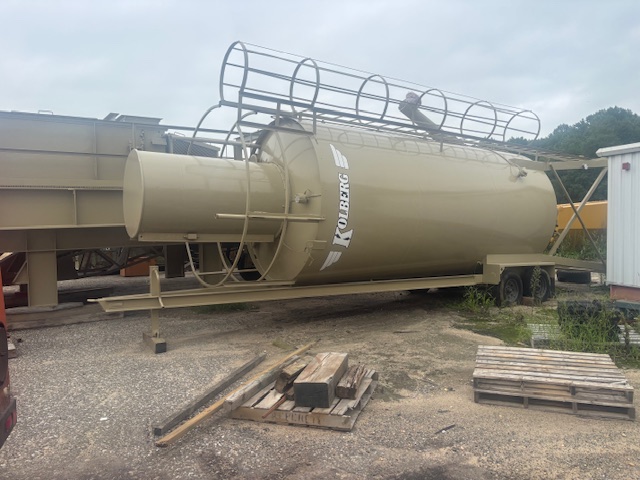

**Make:** Pugmill Systems **Tonnage:** 750tph **Other Info**: * Twin shaft pugmill * 36" PUGMILL LOADING CONVEYOR. * 36" SURGE HOPPER LOADING CONVEYOR * SURGE HOPPER * 75 TON SILO WITH BINVENT BH * 2 - FEEDER HOPPERS * BATCH HOUSE **Condition Notes** Plant will require a new belt scale and cement scale to be complete Conveyors will need new belts installed

200-300Tph twin shaft Pugmill tarmax SR# 1824-1401 Dodge txt8 reducer 2-50hp motor has top doors 19'x 89'' shipping 69''x 14' box skid mounted 75% on Pugmill Tips oil heated

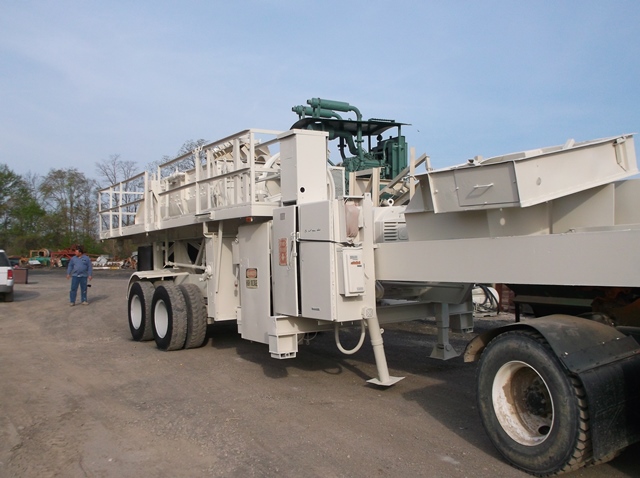

1 each - Portable Pugmill Mixing Plant complete as follows: 200 - 250tph Capacity 12 yard feed hopper with 1/4" plate and 60 degree sloped sides, adjustable discharge gate, 36" feeder conveyor, 15 HP (TEFC 230/460 3 phase 60Hz) motor, belt scraper, electric vibrator, variable frequency drive. Pugmill with twin shafts, Dodge shaft mount reducers, twin 30 HP (TEFC 230/460 3 phase 60Hz) electric motors, hi-chrome paddle tips, 1/4" wear plate curved bottom, spray bars, inlet chute, mixing chamber cover, belt guard, timing gears & gear housing, hydraulic drop out bottom. Belt Scale for coordinating oil system. Asphalt oil pump with variable speed drive, strainer, meter, spray bar, gear pump, 10 HP motor. Water Pump & Meter Operator Control Station including controls for all motors. Note: All electric motor starters, disconnects, NEMA 3R enclosure, controls, conduit and wiring are included. PLC for automatic proportioning and recipe control. 5th Wheel Trailer with tandem axle, air brakes, lights, front and rear trailer jacks. Condition Notes: Practically new condition. Was purchased for a job that ended up falling through. Unit was only run with a small amount of material to calibrate the scale.

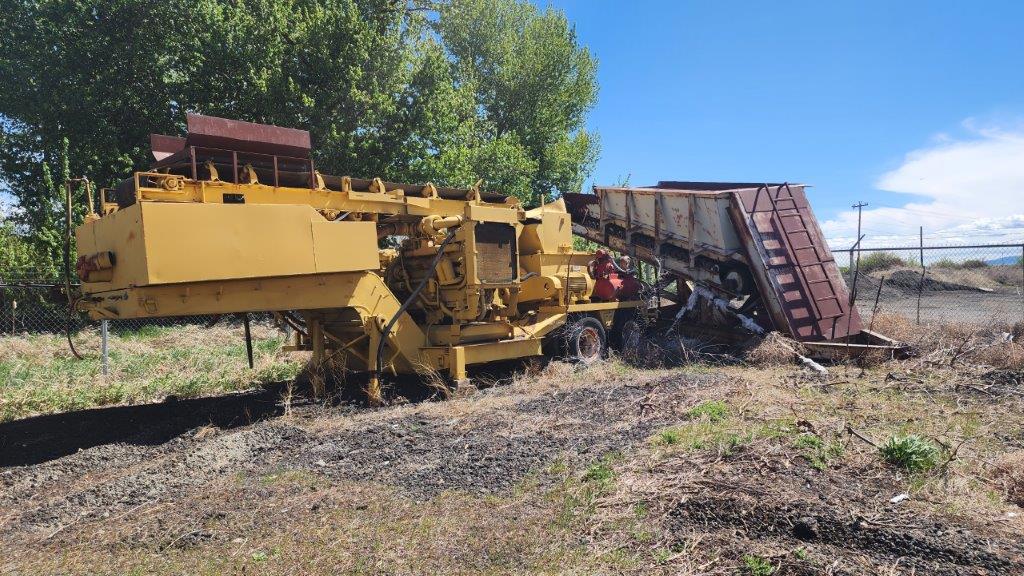

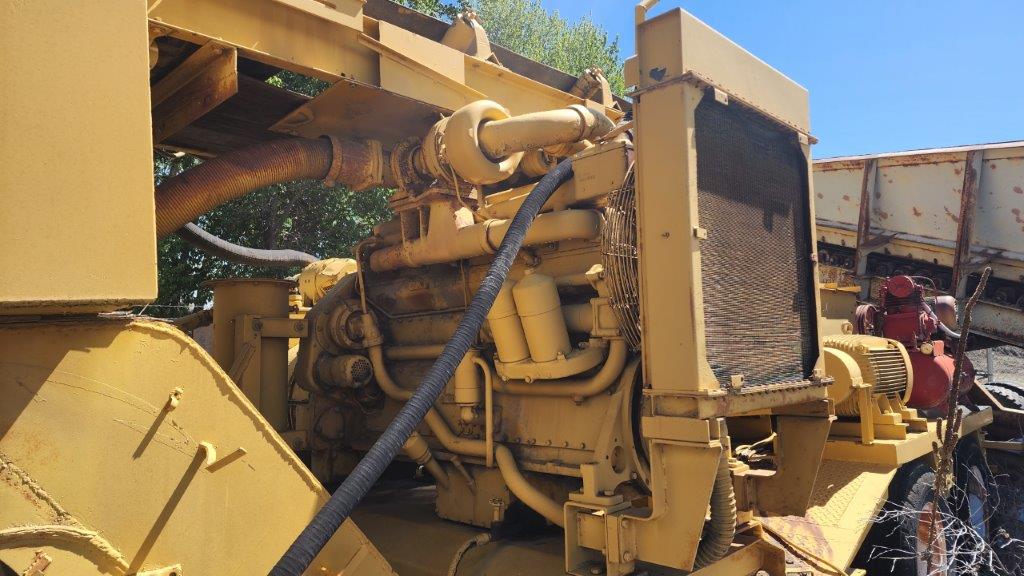

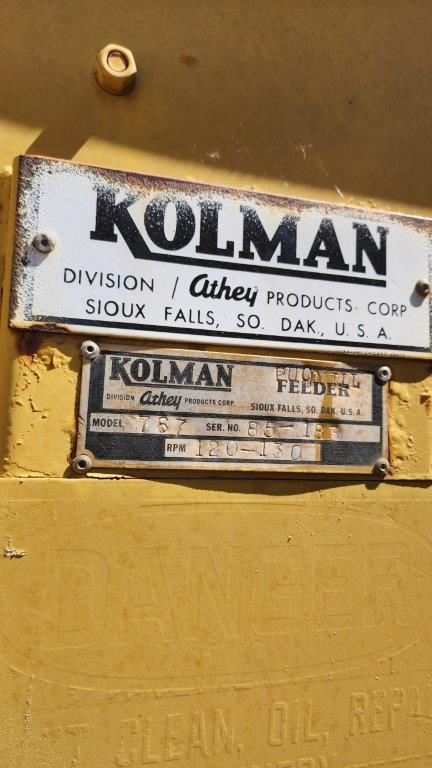

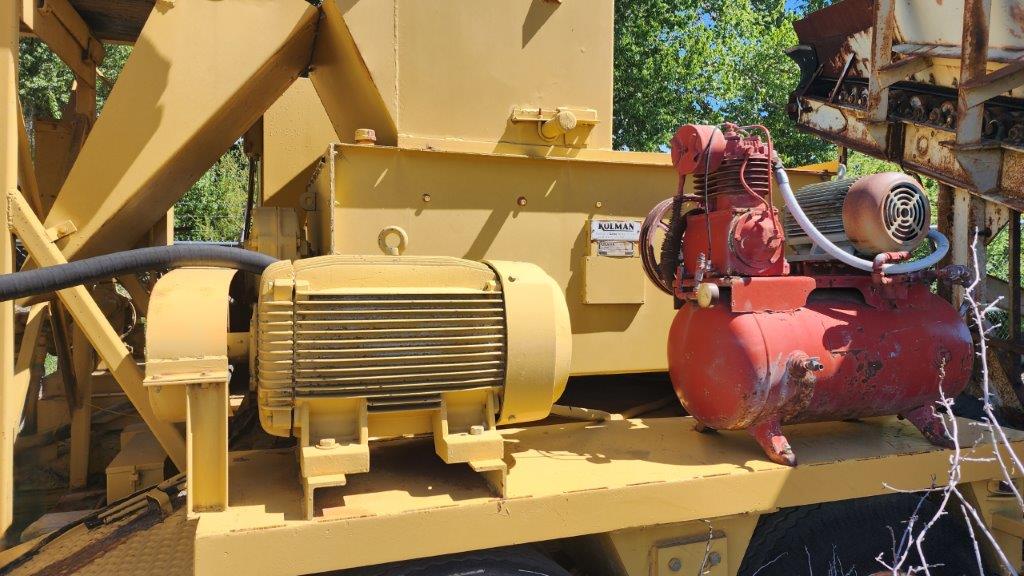

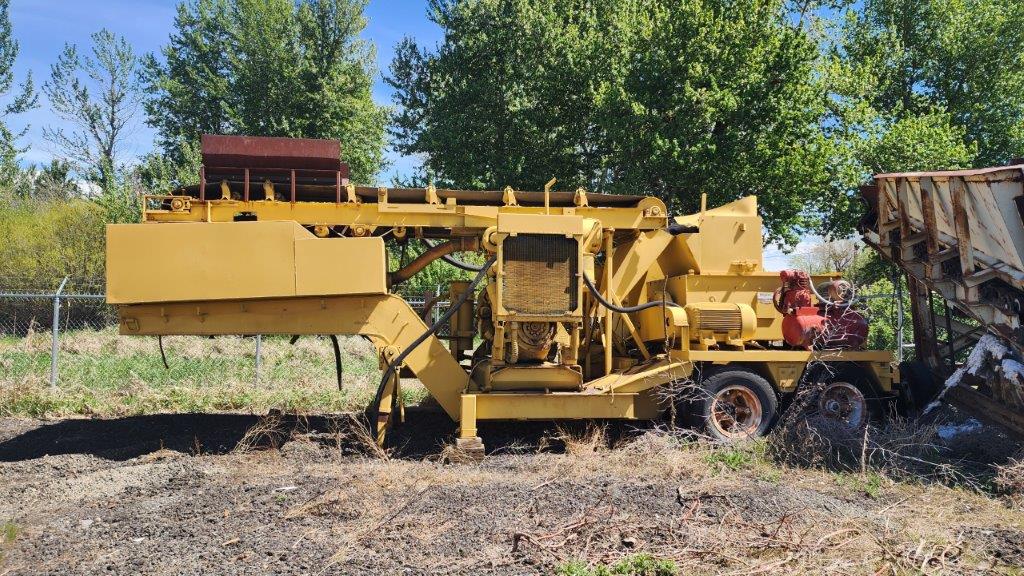

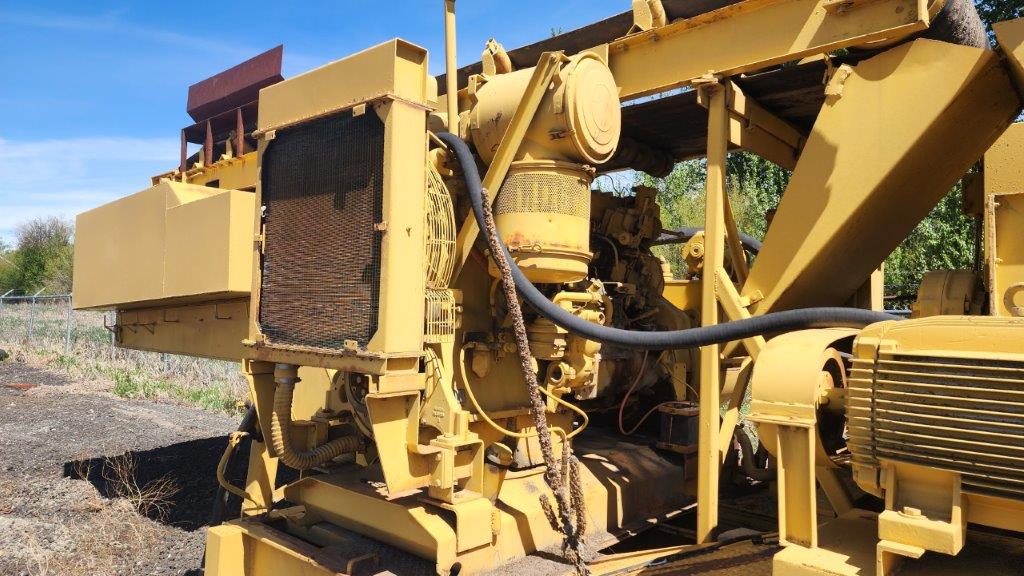

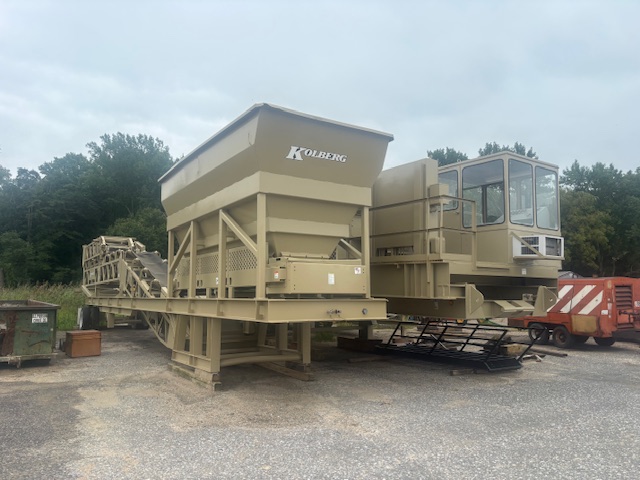

**Make:** Kolberg **Portability:** Portable (Tandem Axle, Fifth Wheel) **Model:** 767 **Output:** 300tph **SN#** 85-183 **Year:** 1983 **Other info:** * Twin Shaft Pugmill * (4' x 7') 60 hp motor with Dodge TDT 7 Reducer) * Caterpillar Generator * (Motor D353C) 250kw Gen Head "200 KVA" * 36" x 12' Feed belt to Pugmill * Starters and Controls inside Nema Enclosure. * On board tank with Pump system and compressor Single Bin with 36" x 20' incline feeder to plant (Single Axle and Penn Hitch) Road readiness needs to be checked

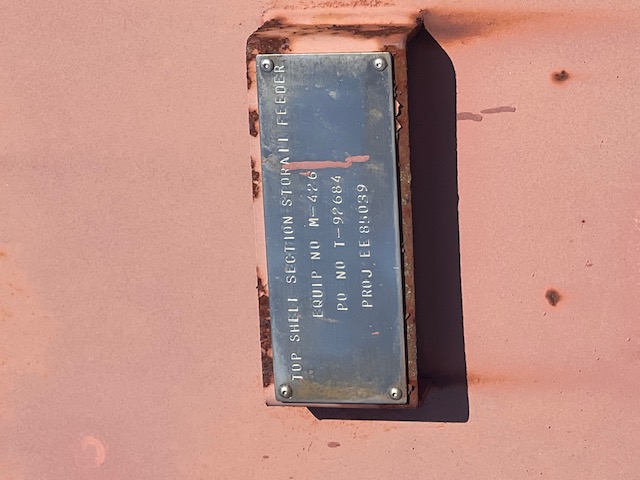

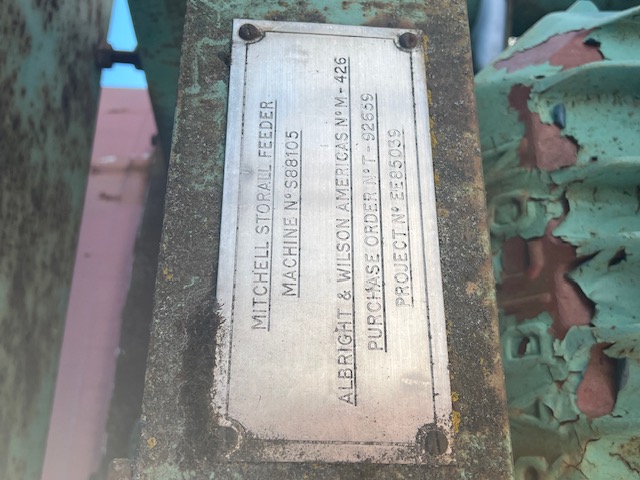

1 feeder mixer used in phosphate briketting plant. The floor turn and the screw mixed for 10 cubic meter. Motors are volt 460. (top Shell Section) Equip# M-426 PO# T-92684 Project# EE85039 Machine# 83105 Purchased# 92659 Project# EE85035

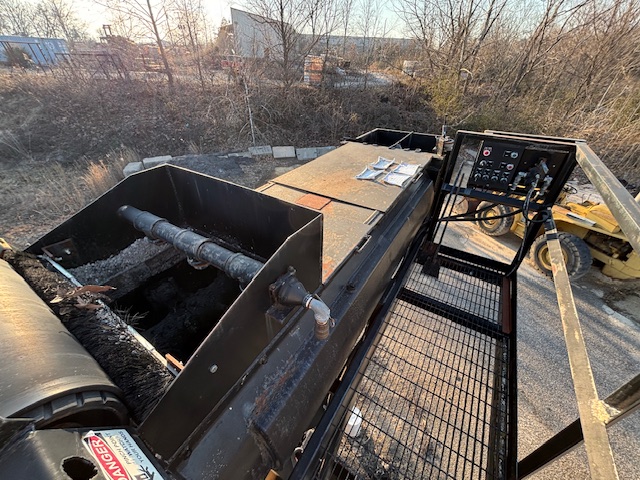

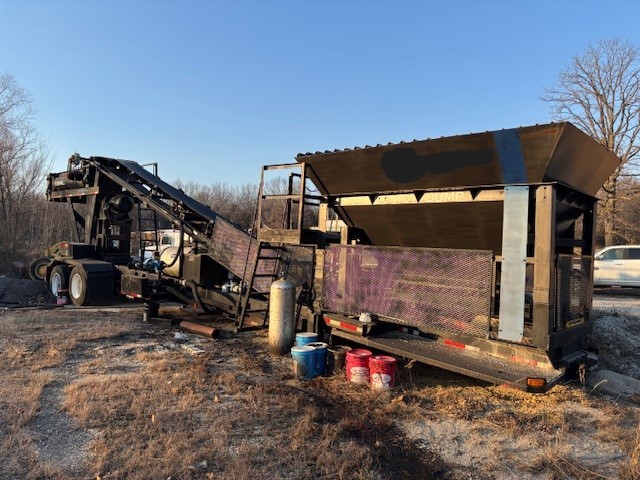

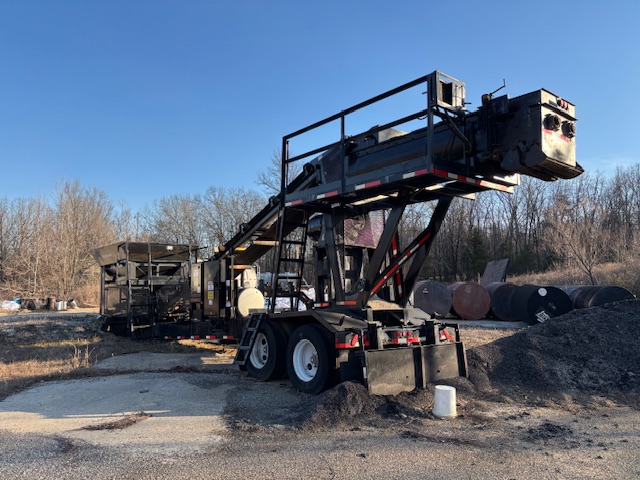

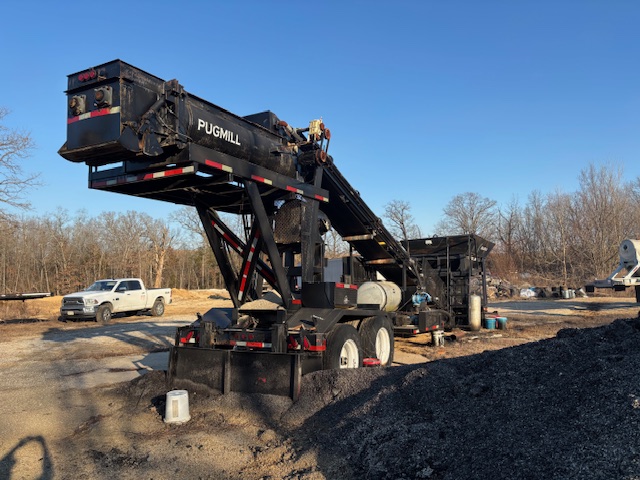

## Portable BG Pugmill/Cold Mix Plant – 40-100 TPH Built in 2018 and ran approx. 3,000 tons **Pugmill:** * Twin-shaft * 15" x 10' each shaft * 30 HP drive system * Inner Box Size: 32" x 10' x 2' deep **Bin & Feeder:** * 8' x 12' bin with Grizzly * 18" x 10' feeder * 5 HP motor **Conveyor**: * 24" x 30' * 5 HP motor **Controls**: * System controls with 3 main points of operation **Leveling**: * Hydraulic jacks **Pumps:** * 2 Viking pumps – one metering pump, one pump pushing pump **Axles & Tires:** * 2 axles / 11R22.5 **Additional Features:** * Splash gate on the back of the unit * Running on 3-phase 480V land power * Spot for a 60-70 KW generator (GENERATOR NOT INCLUDED) * 120-gallon diesel tank is attached and included **Requirements:** AC/emulsion tanker needed onsite while making cold mix, owner brings in as needed, not included in sale. Owner runs plant as needed and buyer can see unit run at time of inspection. ## Also Listed Under Cold Mix Plants, Inventory #: CM2718

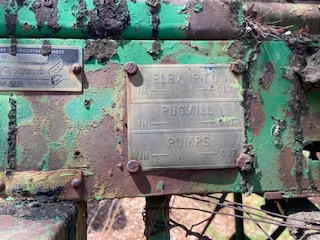

Pugmill Make: Barber Green Model: KB70X133 No Motor Portable Frame Make: Barber Greene Tire Size: 13.00/20 10' x 35' Frame Platform SN: CN10X236

**Size**: 5' x 16' **Dual shaft** **Other**: * 2 Dodge reducers with 20HP motors * On platform skid * Waterlines * Duct work included

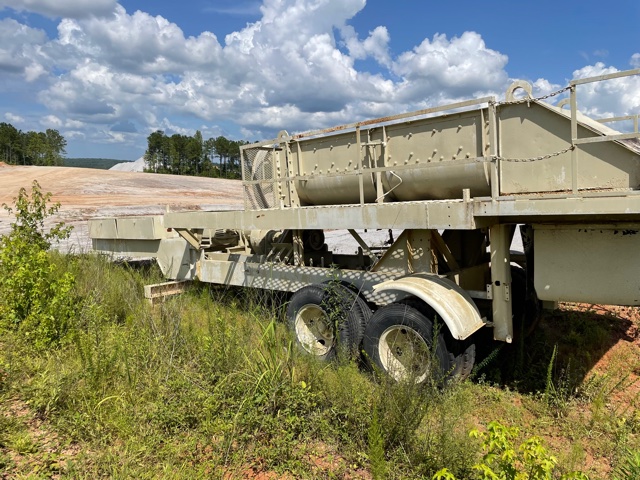

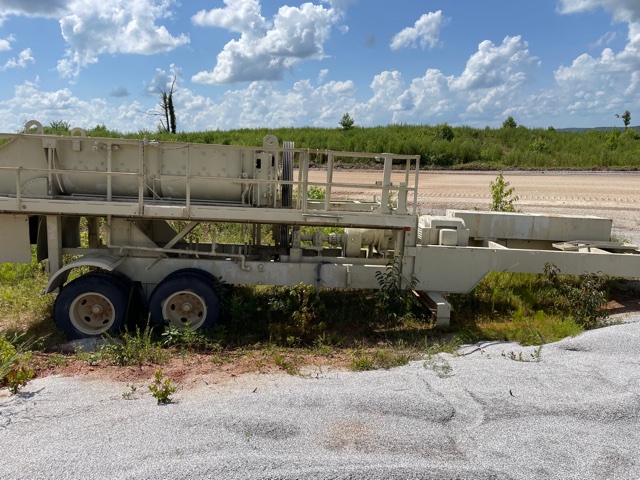

Make: H&B Twin 24 x 10 Shaft Paddles electric motor Mounted on a portable tandem axle chassis Fifth wheel pin to transportation NO CONTROLS **Road readiness needs to be checked, Recommended to transport on a lowboy or replace all tires prior to moving.**

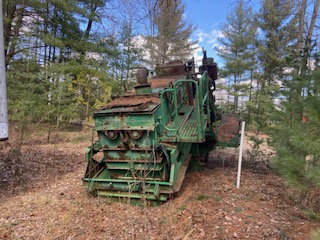

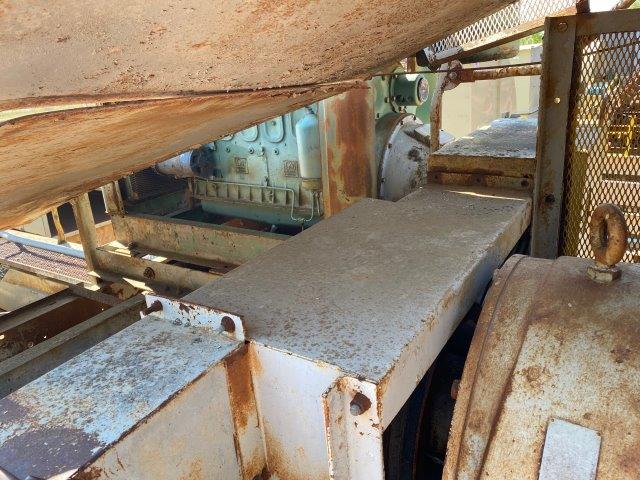

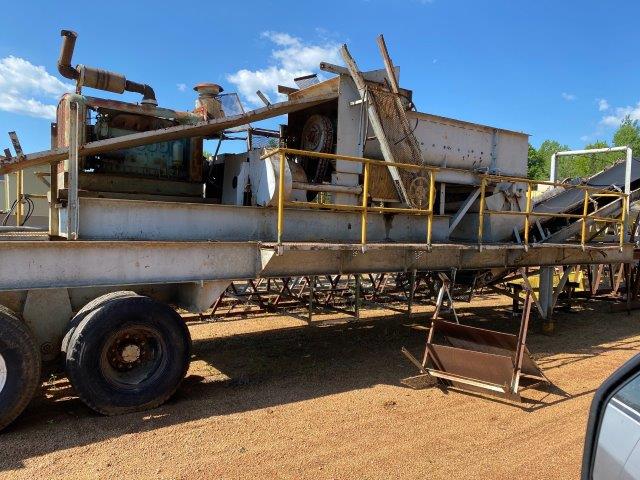

Cedarapids Twin Shaft Pugmill, turns freely On Board Power (Diesel Engine), Detroit 671, condition unknown Tandem Axle for Portability, roadreadiness needs to be checked or loaded on a trailer The pugmill does not come with any conveyors or bins, it is just the pugmill.

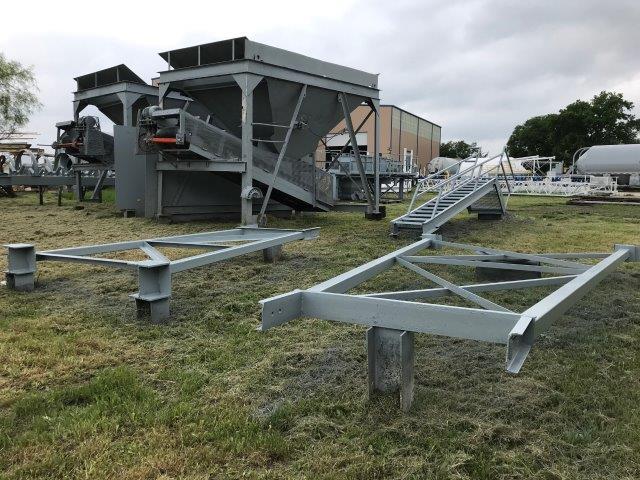

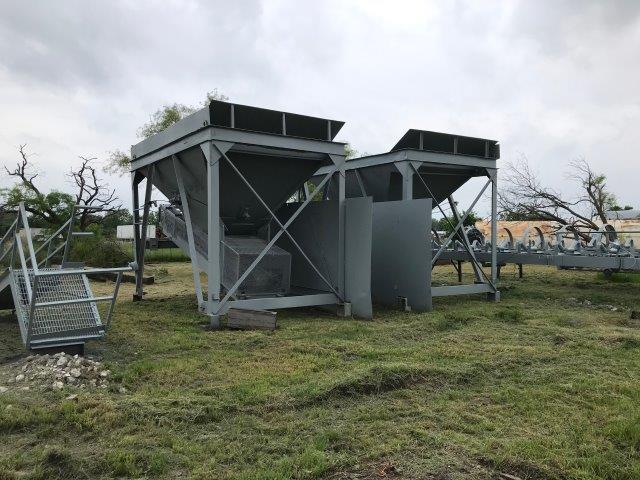

1 each - 2 Bin Portable (1 Load) Blending and Mixing Plant, complete as follows: **Max 500TPH depending on mix design** 1 each - 2 Bin Portable Blending and Mixing Plant, ONE LOAD MODEL complete as follows: a. Hopper #1 is 7’-6” wide x 14’ long with 12 cubic yard storage capacity constructed from 1/4" thick steel plate with reinforcing at the hopper top and mid-section; self-relieving tapered hopper bottom opening to minimize bridging; skirtboards with 3/4” x 6” adjustable rubber flashing; adjustable discharge gate with crank handle to control material flow from hopper. b. Hopper #2 is 7’-6” wide x 12’-9” long with 10.5 cubic yard storage capacity constructed from 1/4" thick steel plate with reinforcing at the hopper top and mid-section; self-relieving tapered hopper bottom opening to minimize bridging; skirtboards with 3/4” x 6” adjustable rubber flashing; adjustable discharge gate with crank handle to control material flow from hopper. c. Each belt feeder is 30” wide with fixed speed 7.5 h.p. electric motor, Nord helical bevel gearbox; 12” diameter rubber lagged head pulley mounted on Dodge 2-15/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” SCM pillow block bearings; screw take-up assemblies; tail terminal guard and side nip guards; CEMA “C” flat belt idlers with 5” diameter rolls mounted on close centers; CEMA “C” return idlers with 5” diameter rolls; 3 ply vulcanized endless conveyor belting; Flexco Rockline belt scraper installed. Belt speed setup for 90 fpm. d. Collecting conveyor is 36” wide x 40’ long with fixed speed 15 h.p. electric motor, Nord helical bevel gearbox; 14” diameter rubber lagged head pulley mounted on Dodge 2-7/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” SCM pillow block bearings; screw take-up assemblies; tail terminal guard; head pulley nip guards; CEMA “C” 35 degree troughing idlers with 5” diameter rolls; CEMA “C” return idlers with 5” diameter rolls; 3 ply conveyor belting with 3/16” x 1/16” rubber covers; Flexco 140 mechanical belt splice; Flexco Rockline belt scraper installed. Includes a Belt-Way model 200 belt scale installed. e. **Pugmill Systems model 750BT pugmill with twin shafts, **twin 50 h.p. electric motor drives with timing gears, Hi-chrome paddle tips that are reversible for wear, curved trough with AR liners, feed hopper, mixing chamber cover, spray bar and valve for liquid additive. f. Portable trailer constructed of heavy duty wide flange beams which are braced for optimum rigidity; tandem axle chassis with dual 11 x 22.5 tires, air brakes, king pin, rear lighting, mud flaps and blocking pads; 2’ wide walkway on both sides of the pugmill with 42” tall handrails, 4” kick plate, mid rail, access ladders; manual jack legs at king pin. g. One rust inhibitor prime coat and one finish coat gray paint for all equipment; one finish coat safety yellow paint for all guarding. h. Electric motor control panel with starters for all above electric motors and variable speed drives for the belt feeders; electrical wiring to all on plant electric motors. Includes an extra starter for one 20 h.p. off plant electric motor. **NOTE: The photos has an Eagle pugmill but unit will have Pugmill Systems pugmill.**

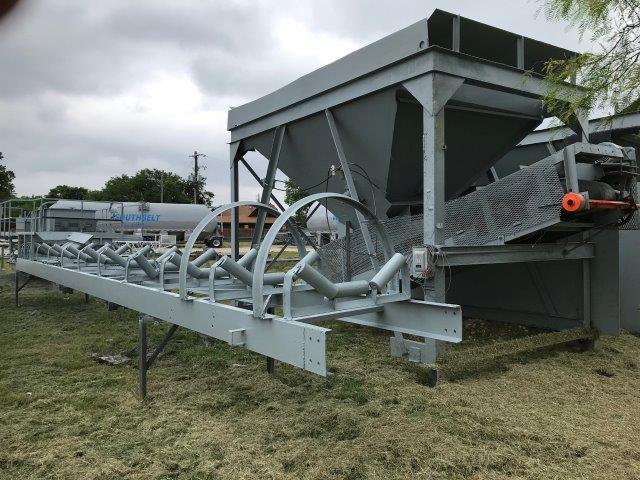

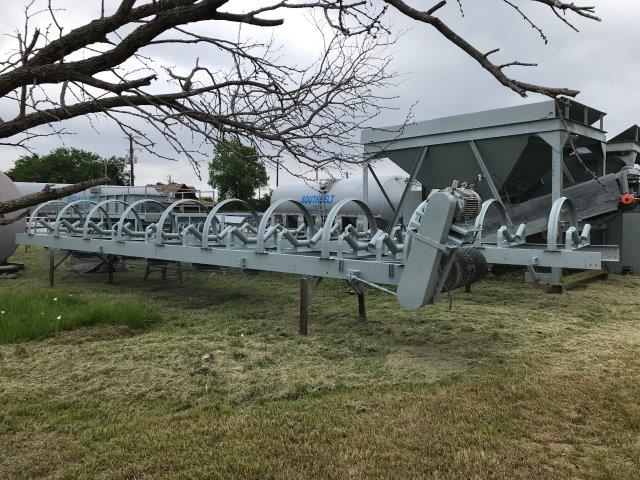

Please see info the new portable 2 bin blending hopper and portable pugmill plant. These plants are designed to work together. 1 each - Portable 2 Bin Blending Hopper, complete as follows: a.  Each hopper is 9’-6” wide x 14’ long with 20 tons storage capacity constructed from 1/4” thick steel plate with rectangle tube reinforcing at the hopper top and angle iron reinforcing at the hopper mid-section and bottom section; self-relieving tapered hopper bottom opening to minimize bridging; full length skirtboards with Hercules 3/4" x 6" adjustable rubber flashing to prevent leakage between hopper bottom and belt feeder; adjustable discharge gate with hand crank to control material flow from each hopper. b. Each belt feeder is 30” wide x 8’ long with Nord 5 h.p. gearmotor drive; 12” diameter rubber lagged head pulley mounted on Dodge 2-7/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” SCM pillow block bearings; screw take-up assemblies; ICC CEMA “C” flat belt idlers with 5” diameter rolls mounted on close centers; 3 ply vulcanized endless conveyor belting. Belt speed setup for 90 fpm. c. Collecting conveyor is 36” wide with Nord 10 h.p. gearmotor drive; 12” diameter rubber lagged head pulley mounted on Dodge 2-3/16” SCM pillow block bearings; 12” diameter self-cleaning tail pulley mounted on Dodge 2-3/16” pillow block bearings; screw take-up assemblies; head pulley nip guards; ICC CEMA “C” 35 degree troughing idlers with 5” diameter rolls; ICC CEMA “C” return idlers with 5” diameter rolls; 2 ply conveyor belting with 3/16” x 1/16” rubber covers; Flexco 140 mechanical belt splice; 9’-6” long conveyor extension beyond the hoppers which folds for transport. d. Portable trailer constructed of heavy duty wide flange beams which are braced for optimum rigidity; wide flange vertical beams and angle iron cross members tie all hoppers and trailer together; single axle chassis with dual 11 x 22.5 tires, air brakes, king pin, rear lighting, mud flaps and blocking pads. Includes one set of hand crank landing legs at the king pin. e. One rust inhibitor prime coat and one finish coat gray paint for all equipment; one finish coat safety yellow paint for all guarding. f. Electric motor control panel with main disconnect, AC Tech SMV variable speed drives for the belt feeders, branch circuit protection, fixed speed starter for the collecting conveyor, all mounted on a skid support structure bolted to the trailer frame and wired into the electric motors. All motors and electrical controls are 3 phase/460 volts/60 hertz. Excludes bulkheads, liners, belt scrapers, grizzlies, bin extensions, bin vibrators, air cannons, flow switches, safety stop switch with pull cords, belt scales, return idler guards, PLC, permits, freight to jobsite, jobsite preparation or equipment installation. 1 each - Portable Pugmill Plant, complete as follows: a. 36" wide x 33’ long pugmill feed conveyor with 15 h.p. electric motor, Dodge TXT4 shaft mount speed reducer with internal backstop, v-belt drive and drive guard; 14" diameter rubber lagged head pulley; 12" diameter self-cleaning tail pulley; screw take-up assemblies; tail terminal guard; CEMA "C" troughing and return idlers with 5" diameter rolls; 3 ply conveyor belting; Flexco Rockline belt scraper installed. b. Twin shaft pugmill mixer with dual 50 Hp electric motor drives, timing gears, liquid additive spray bar, access covers on pugmill, reversible hi-chrome paddle tips, contour AR liners.   c. Portable trailer with single axle chassis and dual 11 x 22.5 tires, air brakes, king pin, rear lighting, mud flaps and blocking pads; pugmill discharge chute; walkway with handrails on both sides of pugmill with access ladders. d. One rust inhibitor prime coat and one finish coat gray paint for all equipment. Excludes safety stop switch with pull cords, belt scale, return idler guards, asphalt pump, water pump, meter, PLC, permits, freight to jobsite, jobsite preparation or equipment installation. We supply our standard guarding.  We do not warrant that they will meet all MSHA, OSHA or all local codes.  It is the responsibility of the end user to have them checked by a local inspector.  Any changes to comply with local codes will be at the expense of the end user.

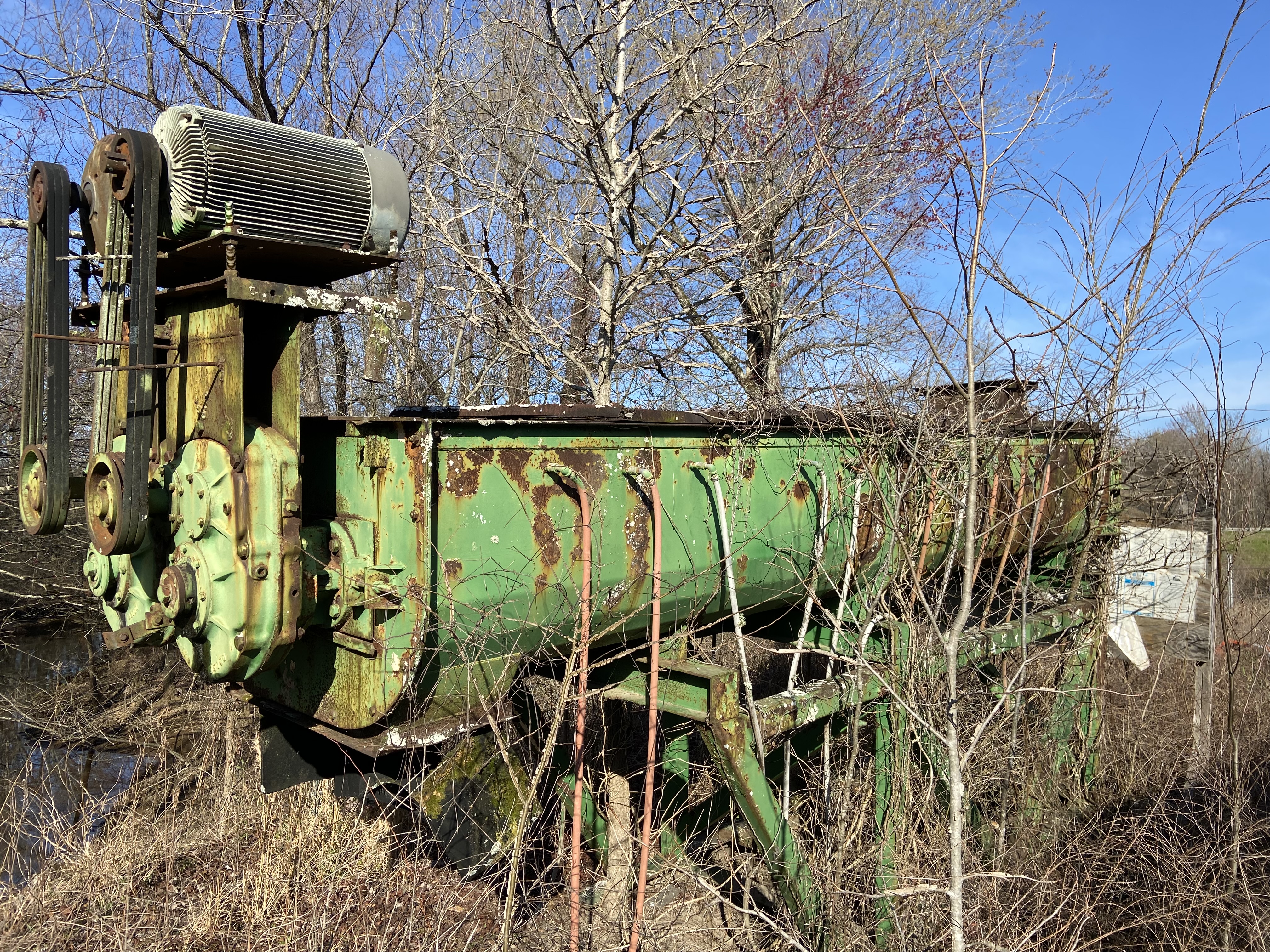

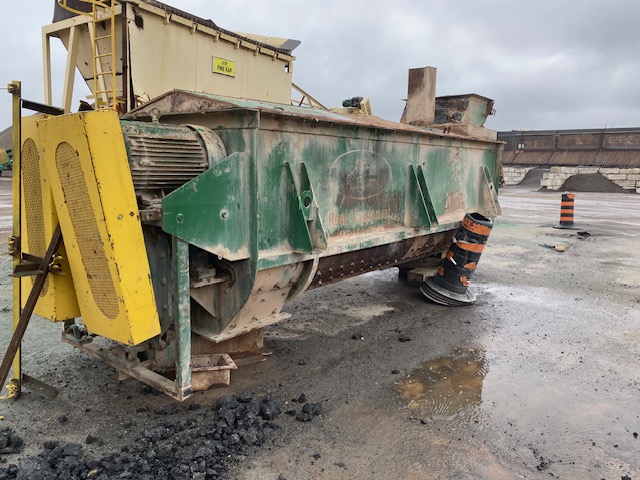

Single Shaft 300 TPH Post Mixer "Pugmill" Model: N/A Motor: 60 hp Ultimate-E1 Motor with Dodge (Maxum) Reducer Drive Type: Belt driven Single shaft Mounting: On stand Reducer ID #: 299184 GM / Size: DC-9 Auger Dimensions: 32" x 10' Jacketed (Oil Heated) Shipping Dimensions: 6' x 16' Condition: Good

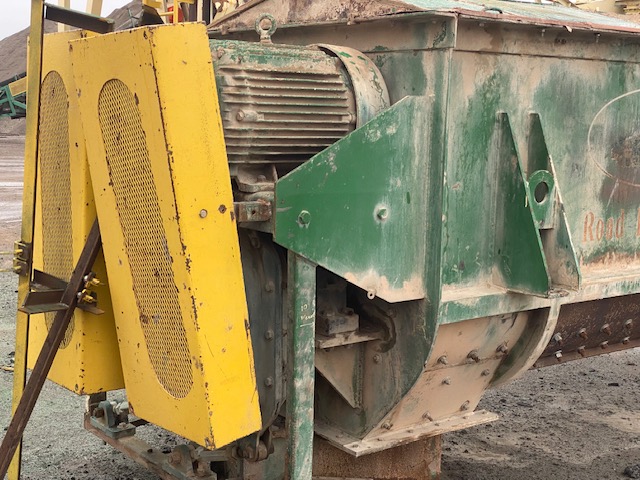

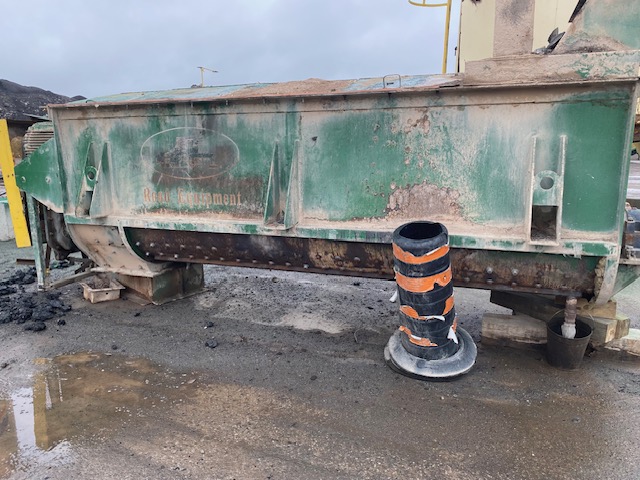

Make: Road Equipment (Astec copy) Size: 14' L Twin shaft pugmill 400tph Believe 2-50 hp motors MAKE REASONABLE OFFER

1 each - Portable Pugmill Plant, complete as follows: a. 36" wide x 33’ long pugmill feed conveyor with 15 h.p. electric motor, Dodge TXT4 shaft mount speed reducer with internal backstop, v-belt drive and drive guard; 14" diameter rubber lagged head pulley; 12" diameter self-cleaning tail pulley; screw take-up assemblies; tail terminal guard; CEMA "C" troughing and return idlers with 5" diameter rolls; 3 ply conveyor belting; Flexco Rockline belt scraper installed. b. Twin shaft pugmill mixer model with dual 50 Hp electric motor drives, timing gears, liquid additive spray bar, access covers on pugmill, reversible hi-chrome paddle tips, contour AR liners. c. Portable trailer with single axle chassis and dual 11 x 22.5 tires, air brakes, king pin, rear lighting, mud flaps and blocking pads; pugmill discharge chute; walkway with handrails on both sides of pugmill with access ladders. d. One rust inhibitor prime coat and one finish coat gray paint for all equipment. e. Electric motor control panel with fixed speed starters for all above electric motors pre-wired to each electric motor. Excludes safety stop switch with pull cords, belt scale, return idler guards, asphalt pump, water pump, meter, PLC, permits, freight to jobsite, jobsite preparation or equipment installation. We supply our standard guarding.  We do not warrant that they will meet all MSHA, OSHA or all local codes.  It is the responsibility of the end user to have them checked by a local inspector.  Any changes to comply with local codes will be at the expense of the end user.
