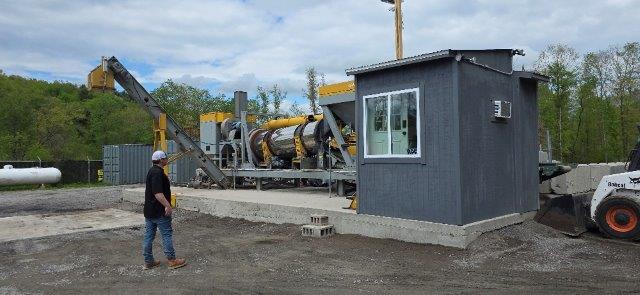

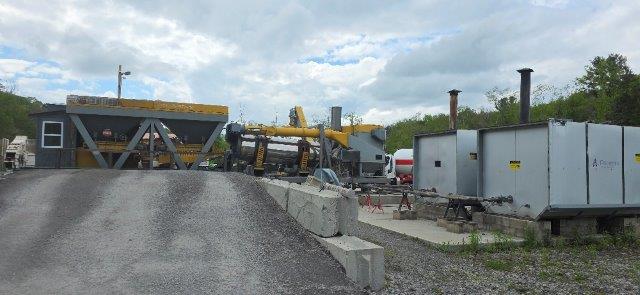

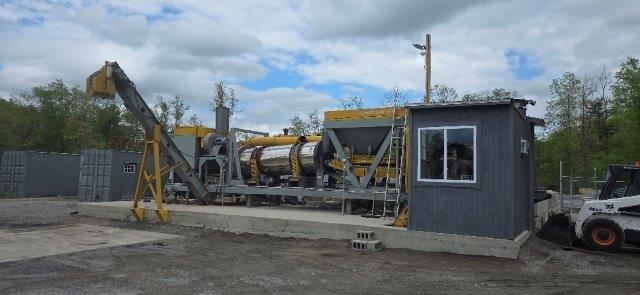

Make: Margui
Model: 15/30
Year: 2019
Drum Size: 4' x 15'

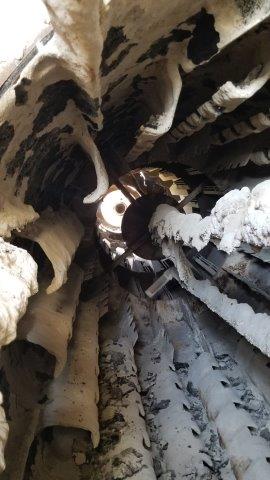

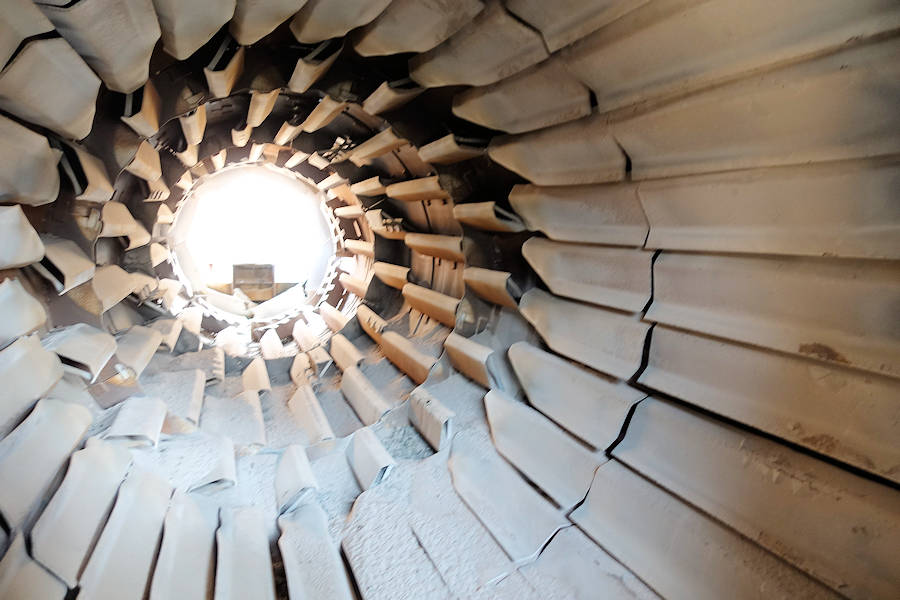

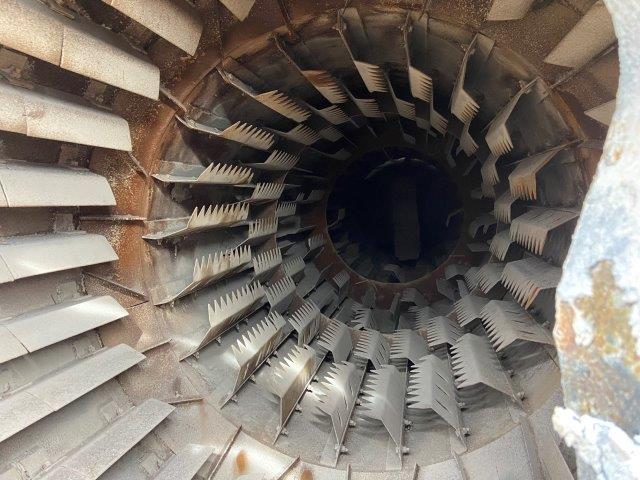

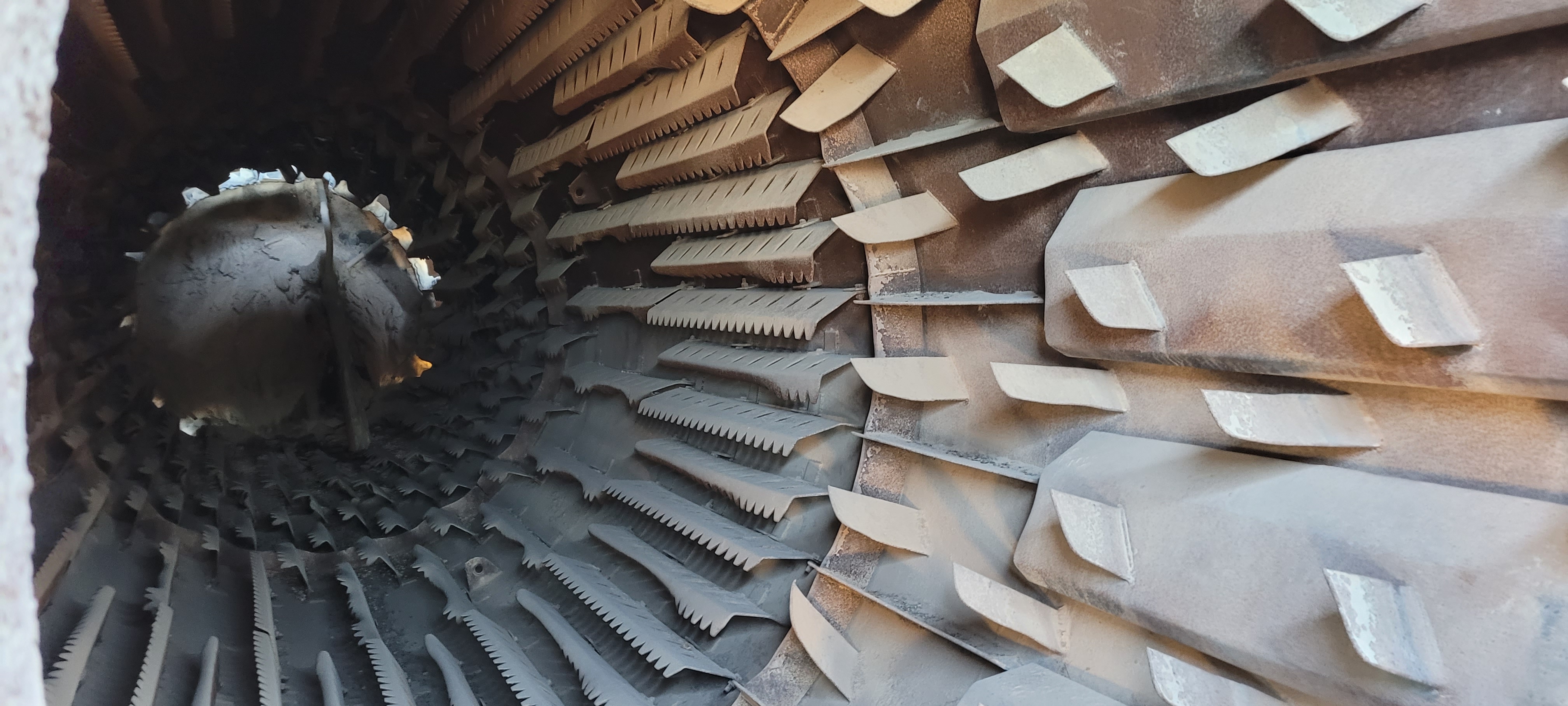

Flights: Alternating flight design provides for a high efficiency material veil, reducing operating costs.
Driving System: Trunnion Driven
Trunnions: (4) Four adjustable trunnions with spherical roller bearings. Trunnions are hardened to a 40-50 Rockwell.
Motor: Shaft mounted gear reducers 40hp x 1800 RPM motors.
Burner Make: Webster
Burner Volts: 220
Burner Fuel Source: Propane
Misc: Dryer has insulation and stainless steel skin. The shell is manufactured from 1/4'' alloy steel. Tires constructed from A36 alloy steel. Tire support pads are placed between the drum tire and shell.
Condition Notes: Great condition.
Current Status: Still connected and can be seen running for inspections.
Twin-shaft jacketed external post mixer (discharges directly into slat conveyor) with reject conveyor

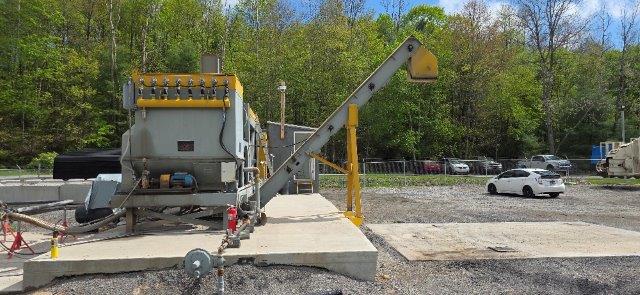

Make: Margui Model: 15/30 Year: 2019 Type: Pulse-Jet Bag Size: 160mm diameter x 1800mm long Bag Count: 56 Nomex filter bags Total Cloth Area: 50m² Access: Top Removal Bags (Recent Bag Replacement) Fan HP: 30hp Fan Type: Centrifugal Fan Compressor(s): (1) Skid mounted air compressor with air chamber. (1) 25hp Rotary air compressor is included, but not currently being utilized in the current setup. (1) Screw compressor to dust recovery (from baghouse to mixer) is included and currently operating plant. Condition Notes: Great condition. Current Status: Still connected and can be seen running for inspections.
Make: Margui Model: 15/30 Year: 2019 Number of Bins: 2 Bin Size: 3.5 m³ Variable Speed Feeders: 18'' Skirted variable speed feeders. Vibrators: (1) Bin has vibrator. Motors: 3hp Direct drive motors. Condition Notes: Great condition. Current Status: Still connected and can be seen running for inspections.

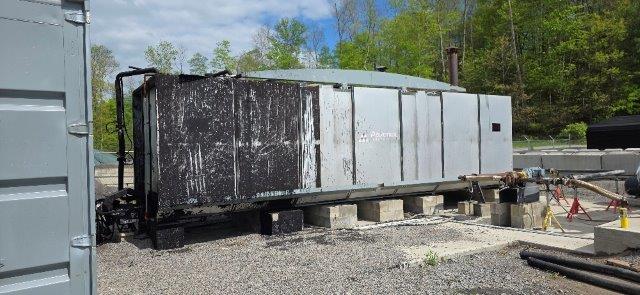

AC Tank 1: Make: Margui Model: 15/30 Year: 2019 Type: AC Tank Capacity (Gallons): Approx 8,000 Gallons Portability: Skid Mounted Compartments: Single Heating Source: Direct Fired Orientation: Horizontal Plumbing: Included Metering Skid: Included Pump: Unloading Pump Included Condition Notes: Great Condition Current Status: Still connected and being used in plant's current set up.
AC Tank 2: Make: Margui Model: 15/30 Year: 2019 Type: AC Tank Capacity (Gallons): Approx 6,000 Gallons Portability: Skid Mounted Compartments: Single Heating Source: Direct Fired with Scavenger Coils Agitation: Single Shaft Mixer Included (Never Used) Orientation: Horizontal Plumbing: Included Condition Notes: Great Condition, has some material inside. Is not currently hooked up to a heating source. Current Status: Disconnected and not being utilized in the plant's current set up.

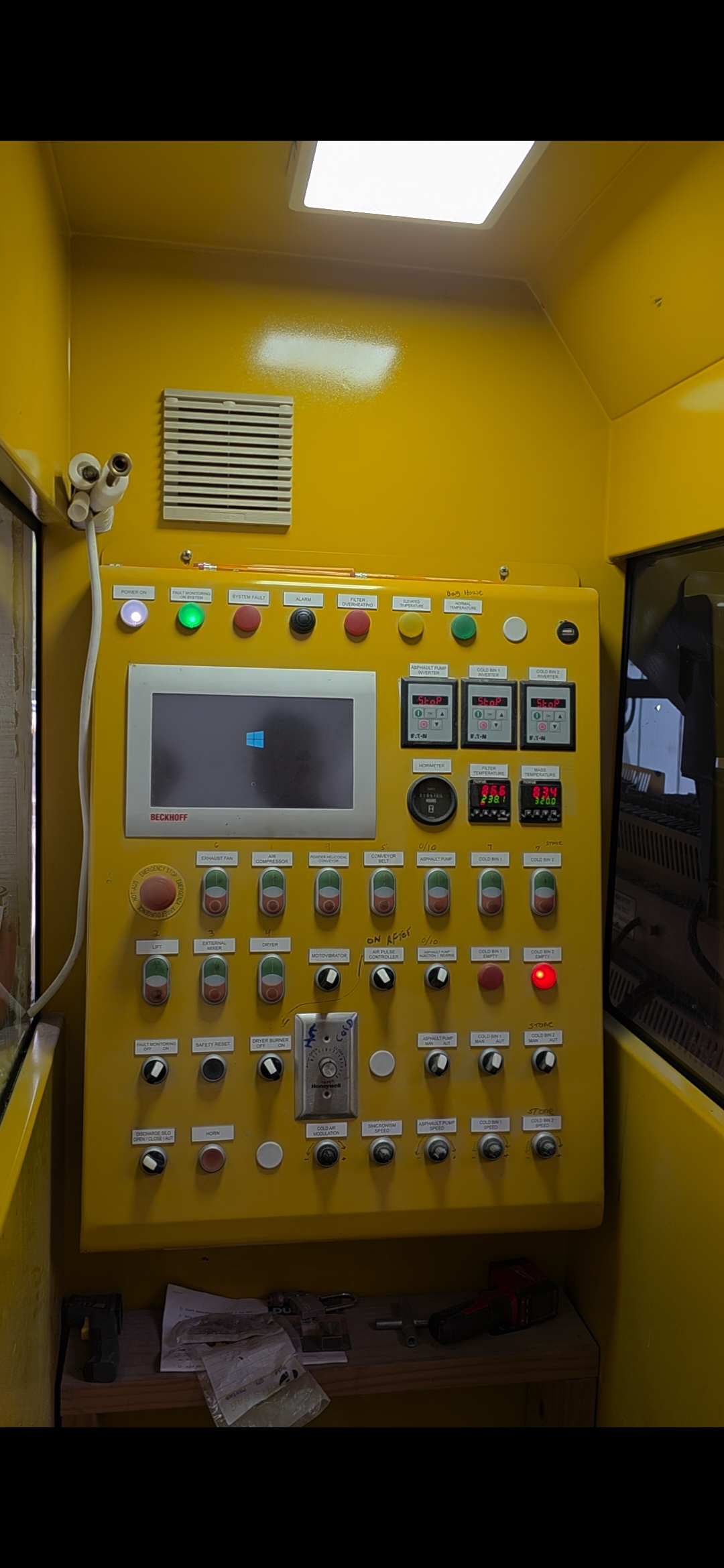

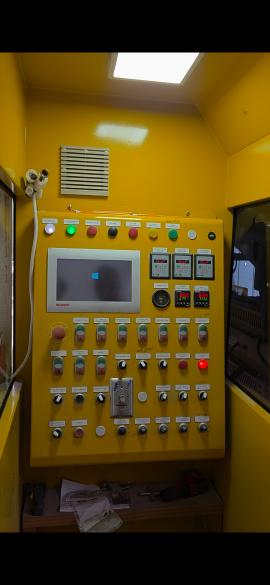

Make: Margui Model: 15/30 Year: 2019 Number of Rooms: Single Room Structure: Control house itself is original to the Margui plant. An additional moveable wood structure has been built around the control house. Controls: PLC touch screen computer controls. Brand: Beckhoff. Condition Notes: Great Condition. Current Status: Still connected and can be seen running for inspection.

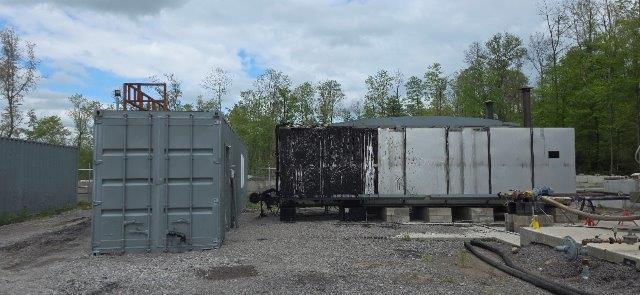

Size: 40ft Type: Shipping Container Included Items: Includes a 220 panel that powers the A/C tank burner and thermal oil pump. This system was converted to eliminate the need for running the generator overnight. Features an insulated and heated tool room and full office/apartment. The container also functions as a spray-down station for trucks, complete with steel steps, catwalk, and railing.
KVA: 90 Fuel Source: Diesel Use: Back-up Generator Hours: 100
Type: Fuel Tank Size: 500 Gallon Additional Notes: Fuel tank is used for generator.
Conex Box: Additional Conex Box Containing Spare Parts Gob Hopper and Slat: Asphalt slat conveyor with small gob hopper.
This plant produces 25–30 TPH with the current setup. Existing mix designs are stored in the control system. Lab testing has been completed, and results are included. Turn-key plant with $50,000 in upgrades! The plant has been converted to run on propane. Note: Propane tanks shown in photos are not included in the sale. Included in the sale are two days of training. Buyer is responsible for travel, lodging, and meals for the trainer. Plant setup is not included.
Additional Generator (Not Included with Plant Sale) Make: John Deere Type: Genset KW: 120 Condition: Great Condition Current Status: Still Connected CALL FOR PRICING
Silo and Bucket Elevator (Not Included with Plant Sale): Silo Make: Barber Greene Silo Size: 50 Ton Bucket Elevator Make: Barber Greene Bucket Elevator Size: 150TPH CALL FOR PRICING
Scales (Not Included with Plant Sale): Condition: NEW, NEVER USED CALL FOR PRICING
Drum: (All On Single Frame) Model: ADM SN#: DM690-05 26’ x 5’ Drum (No Recycle Collar) Drum thickness/ .228/.283/.296/.285/.275/.298/.304/.313/.311/.314/ (4) 10HP Drives 22’’x 12" (Slinger Belt) Feed Conveyor With 3HP Drive Package
Burner: Model: Hauck PRN# 29240 SN# SJ4200G-112-01-03-1-00 Fuel: Oil Blower 40hp Motor SR# TBA35-40-0-1 #2004294
Wet Scrubber SN# 18-721409-3-2 /6528 /270 RTF Updated Fan: 75 HP Foldable Exhaust Stack Tandem Axles
Cold Feed System: (At Different Location approx. 100 miles away) Make: ADM 3 Bin 12’ x 8’ Bins Model# 46748 SR# CFB690-05 (3) 3HP A.C. Drives 24’’x 7’ Variable Speed Feeders 24'’ x 45’ Collecting Conveyor (With Foldable Stinger) With 7HP A.C.Drive Package (With Allen Bradley Controller) 1 bin has bin vibrator Control Panel (With Allen Bradley Controllers) Portable 1 axle
Silo Package: 100 Ton Silo With Anti Segregation Batcher Model# CMI P1205 SR# 125 Approx Shipping Dims: 12’W x 50’L Portable 1 axle tire size 10.00/15
Slat Conveyor: 32’’x 50’ Double Chain Slat (Good Slats) Reject Chute 75hp Drive Package Single Axle
AC System:( AC IS AT ANOTHER LOCATION IN MO) Gencor Tank Model: 10 DTM SR# K00811-224 Approx Size: 10,000gl Skid Mounted Coiled Tank A.C. Metering Skid

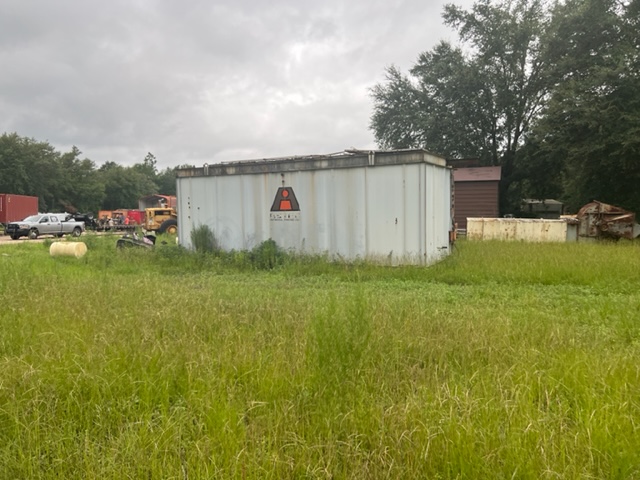

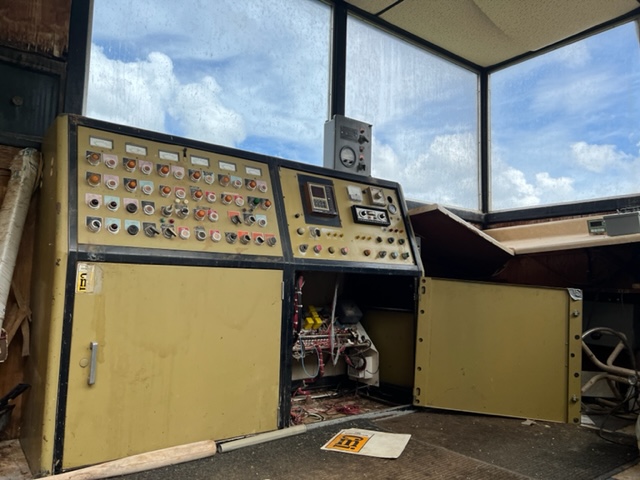

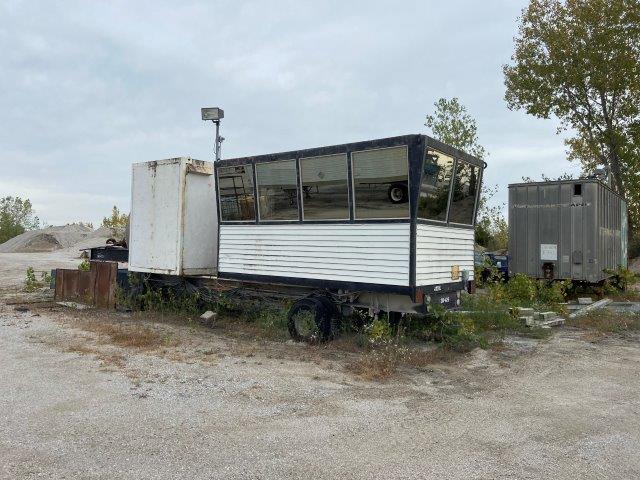

Control House:
8’x 20’ Control House
280 Degree

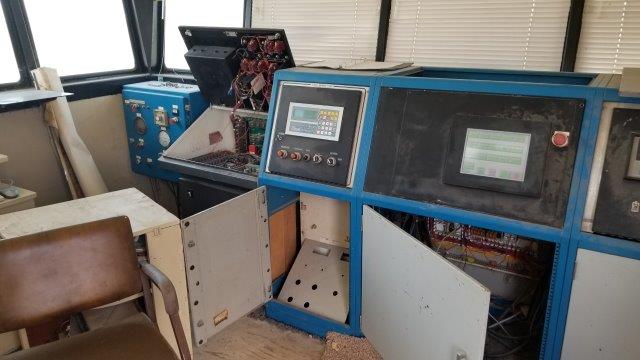

Has ADM Controls (With Manual Start Stop Package)
1 level
Portable 1 axle
Ball Hitch
Plant production rate: 300TPH
Portable 8’ x 45’ Drum Mixer With Haulk Burner
Portable 52,000CFM Baghouse With Single Shaft Coater
Stationary Incline Weigh Bridge Conveyor
Portable 15,000 Gallon AC Tank With Heatec Hot Oil Heater
Stationary Dust Silo With Binvent
Stationary Skid Mounted Full Tank Single Wall
Stationary Control House With NO Wire Or Controls
NOTES: The AC, Dust Silo Have Left Over Materal Inside. Also The Control House Has NO Wire, Controls, Startes, Or WIndows, Considerd Just A Shell.
Portable 1989 Astec Double Barrel Partial Drum Plant, 350tph 1989 Astec 8’ Double Barrell Drum w/ new Hauck SJ580 burner Baghouse Astec portable 50,000ACFM Control House on stands (CMI style) w/ new EZ Blend Controls- 1st class installation MCC w/ new VFD/s and complete plant switchgear Counterflow some dust augers Some ductwork included ABOVE EQUIPMENT HAS NO WIRE
Drum: Portable Parallel Flow rated at 300tph ran at 200-225tph 7'x 44' MS 300-54-83-TA Rap Collar Knockout Box Triple Axle (Missing 1 Set of Tires and Rims) (2) 50hp Motors, One looks newer than other Dodge Drives
Burner: Gencor AF-60 Model: AF742 11-6-86 Set up on Oil

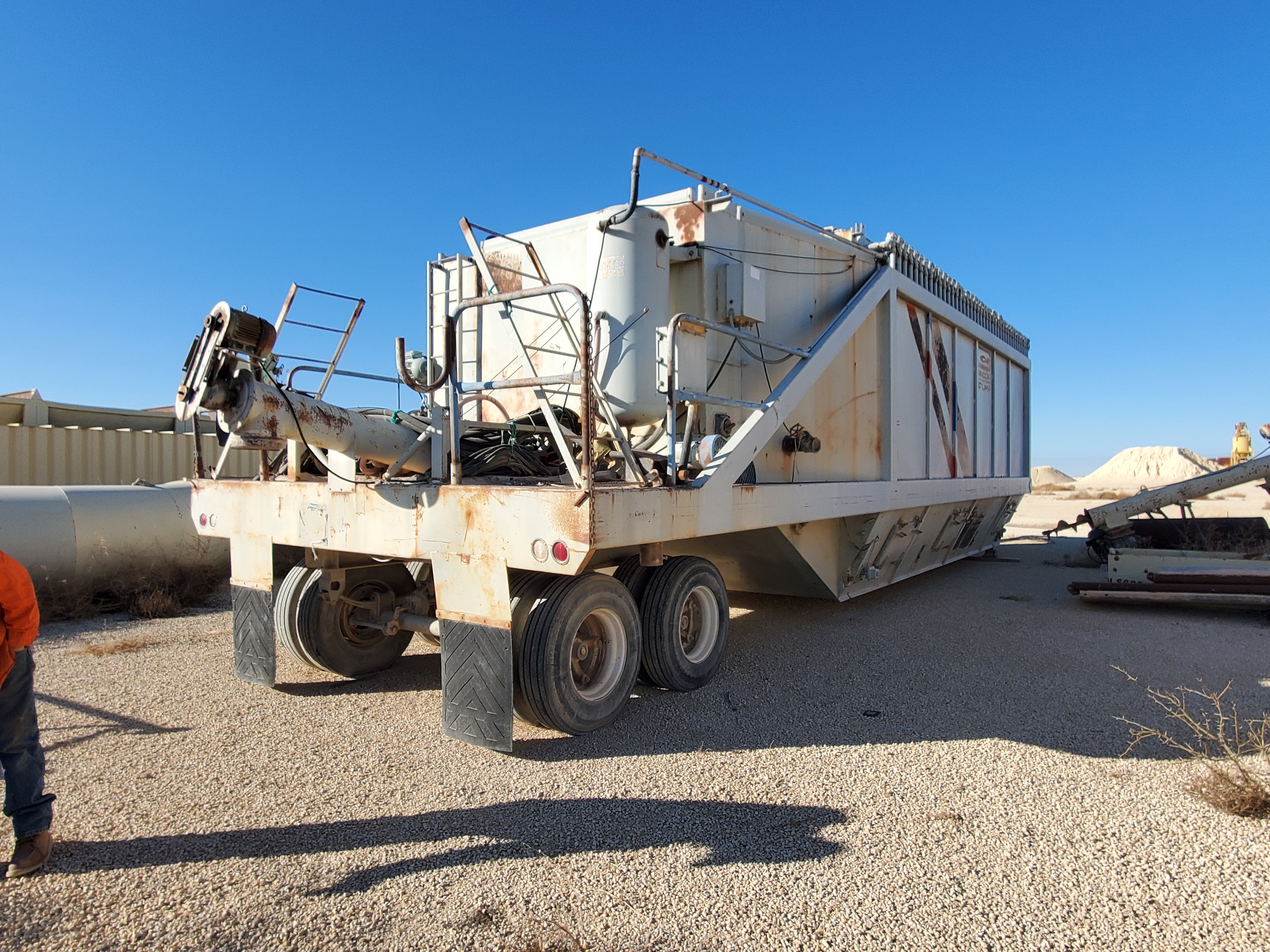

Baghouse: Portable Barber-Greene Model# CE 240 SN# 168 43,000 ACFM @ 6.1 7,200 SQFT of Cloth (400 6' x 8' Bags) Newer Fan With Twin 100HP Motors Tripple Auger Discharge SullAir Rotory Screw Compressor MC In Nema Enclosure Mounted on Rear Tandem Axle

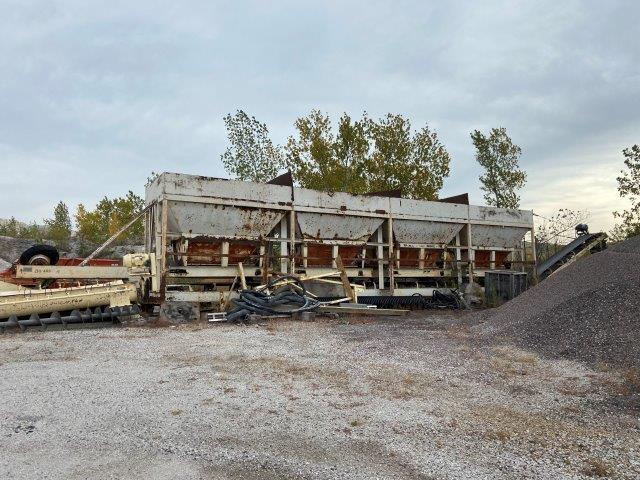

Cold Feed Bins: Portable 5 Bin 10’x14’ Bins Variable Speed Feeders 24’’ x 10’ Feeders 3hp DC Motors NO Flow And Tacks Sensors Bin Dividers 20’ Foldable Stinger Tandem Axles Missing (4) Rims and Tires

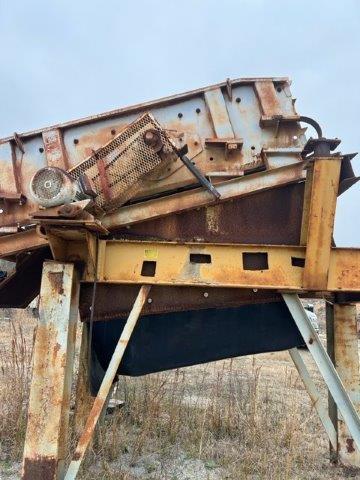

Portable Screen Deck: Portable Kolberg 5’ x 10’ Single Deck Model 10-6010 Sn# 2693-6010-83-1 30’’ x 60’ Weigh Bridge Conveyor Single Axle with Rims and Tires
Control House: Portable 2 Room 280 Degree Front Room Digi-Blend Controls Rear Room Bucketed Starters Quick Disconnects with NEMA Cables Single Axle
Silo: Portable - Axle is off unit but is on site, king pin is still attached 100 Ton Weigh Batcher Internal Reject Chute
Slat Conveyor: Portable Approx 300 Ton Tandem Axle Oil Heated Floor 24’’ x 66’ Single Chain 300tph
AC Tank: 20,000 Gallon Stationary Direct Fired Split Tank Metering Skid Circulating Pump
Fuel Tank: 12,000 Gallon Fuel Tank Riveted Portable Single Axle

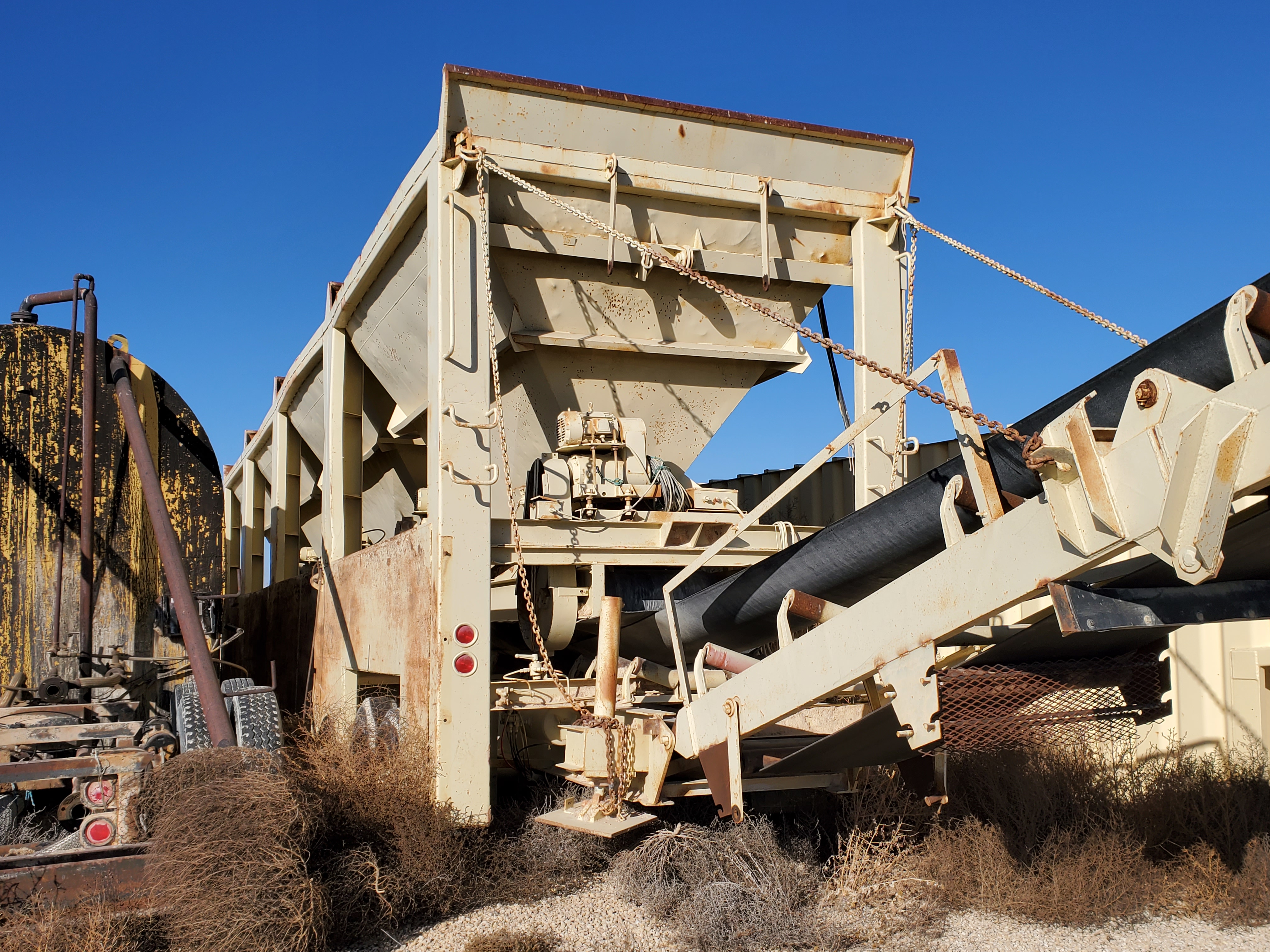

Rap Kit: Portable Single Axle Bin with Grizzley Single 14’ x 8’ Bin 5hp DC Motors 30’’ x 17’ Feeder Single Axle

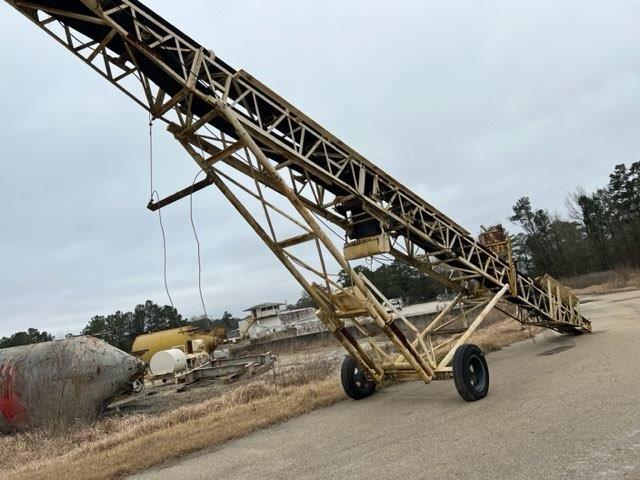

Portable Single Axle Incline Conveyor 30’’ x 30’ Single Axle
Scalping Screen 4’ x 8’ Rap Gator Incline Weigh Bridge Conveyor 30’’ x 50’ Single Axle
CMI PVM 2500
SUMMARY: This plant is a CMI model PVM 2500 SN# 104,Is rated at 350-450 TPH.
The plant is complete (MINUS WIRE). THE PLANT WAS PRODUCING 300 TPH WITH THE 55,000 ACFM BAGHOUSE WITH A LARGER BAGHOUSE PRODUCTION COULD REACH 400-450 TPH.
4 BIN COLD FEED SYSTEM: (Model # PC 432) There are four portable 10’ X 14’ bins with bin dividers for extra capacity. The 30” feeders are 12’ long and are driven by 5 hp AC Lincoln TEFC motors. The 30” collector conveyor powered by a 15 hp motor and folds up for transportation. It feeds onto the 4’ X 12’ Simco single deck screen. Aggregates then feed onto a CMI 30” wide 47’ long, heavy channel frame belt scale conveyor that includes the wind guard and gravity take up. Tandem Axle Configuration.
RECYCLE PACKAGE: (NONE)
PARALLEL FLOW DRUM: The (2005 CMI model PVM-2500), 9'.6' x 42’ long recycle drum is cradle chain driven by a 100 hp motor and a Dodge TXT-10 gearbox. Both ends of the dryer are expanded for better combustion and mixing. The drum sits on a 24” wide flange beam frame manual legs to grade and steel timber footings. A slinger conveyor that is reversible for calibration introduces materials. The Hauck Starjet is model SJL4580 burning #2 diesel or recycled oil. It is powered by a 100 hp TEFC motor. THIS UNIT ONLY HAS A TANDEM AXLE ON IT, NEEDS THIRD AXLE PUT ON.**
POLLUTION CONTROL: (Gencor 54,000 ACFM SN# BH94-7369-92-2A ) The portable Gencor Pulse-Jet baghouse. There is a inlet and outlet duct work with backward inclined fan, Single 200 hp motor, damper and stack are included. Screw auger conveys the dust to a summing auger. The dust is then blown back into the drum with a Gardner Denver pneumatic blower driven by a 25 hp motor. A Sullair 40 HP Screw Compressor delivers air to the on board AIr Storage Tank. There is tandem axle portability.
LIQUID ASPHALT STORAGE: There is one portable A.C Tank The A.C. Tank is a (Chattanooga) single compartment 20,000-gallon indirect fired tank with fuel tank built in the goose neck to fuel the hot oil heater. There is a 3" Unloading Pump mounted on the goose neck. All insulated plumbing is included with the plant on the tank to the MISSING heater. There is a 3" metering skid included. There is tandem axle portability with landing pads (NO HEATER) A nominal 10,000-gallon fuel tank sitting on a flat bed trailer with all plumbing in included for recycled oil the pre heater is is included.

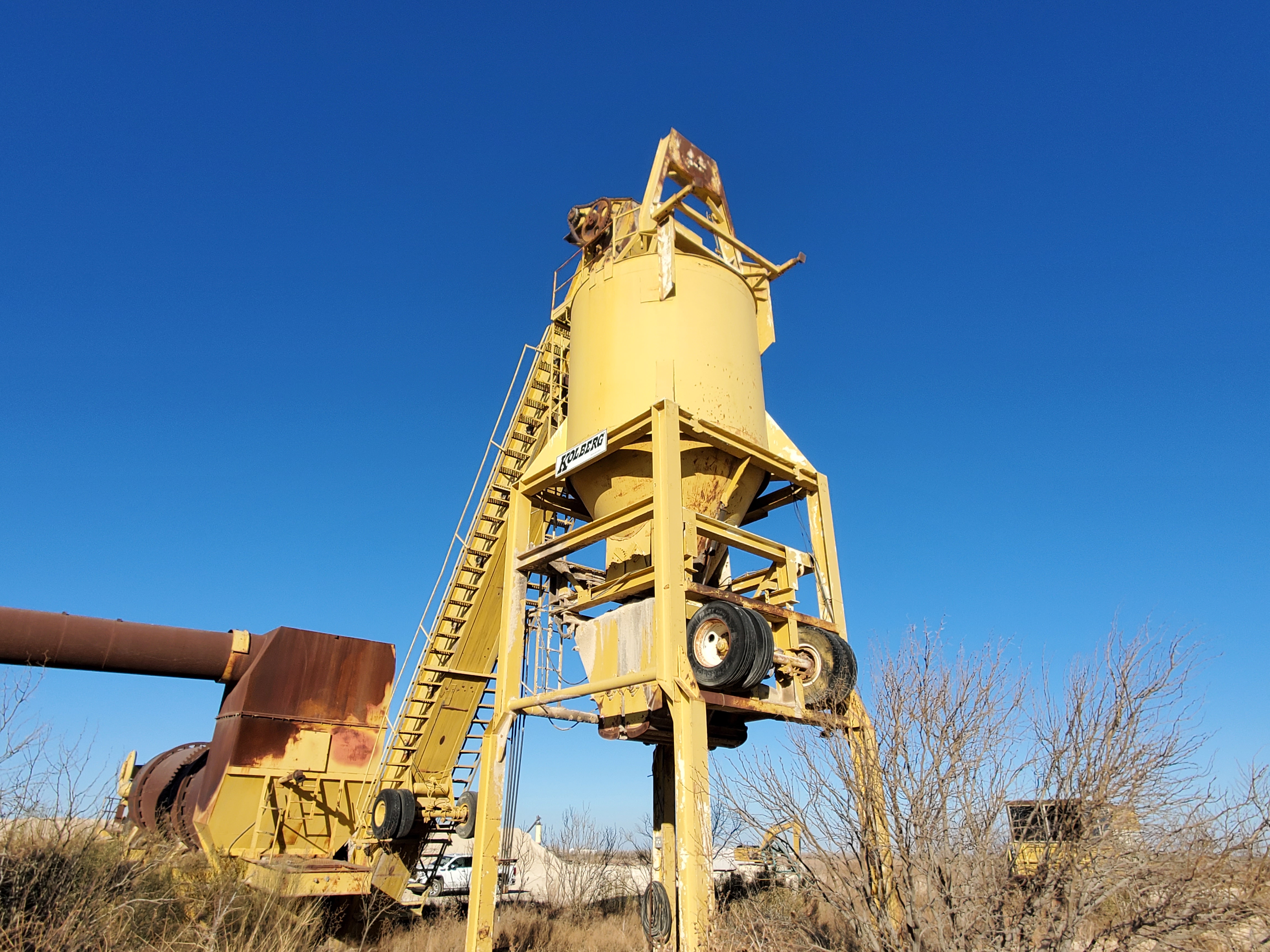

SILO SYSTEM: The CMI SE 165, SN 121) is portable, 65-ton cable-erect surge silo system with reverse wiegh. The 36” x 36” drag slat conveyor is 400+ tph. The twin four inch pitch roller chains use 34” x 7.5” x ¾” slats driven by a 50 hp motor move the materials. There are sliding bearings on the sidewalls that allow the slats to move up and over any floor obstructions. The anti-segregation batcher is mounted on the end of the slat conveyor. The hopper holds a nominal 60-ton capacity. There are heavy steel liners in the cone area. Hydraulic legs push the silo into the erected position. Steel timber footings are provided. An air tank is mounted on the gooseneck.

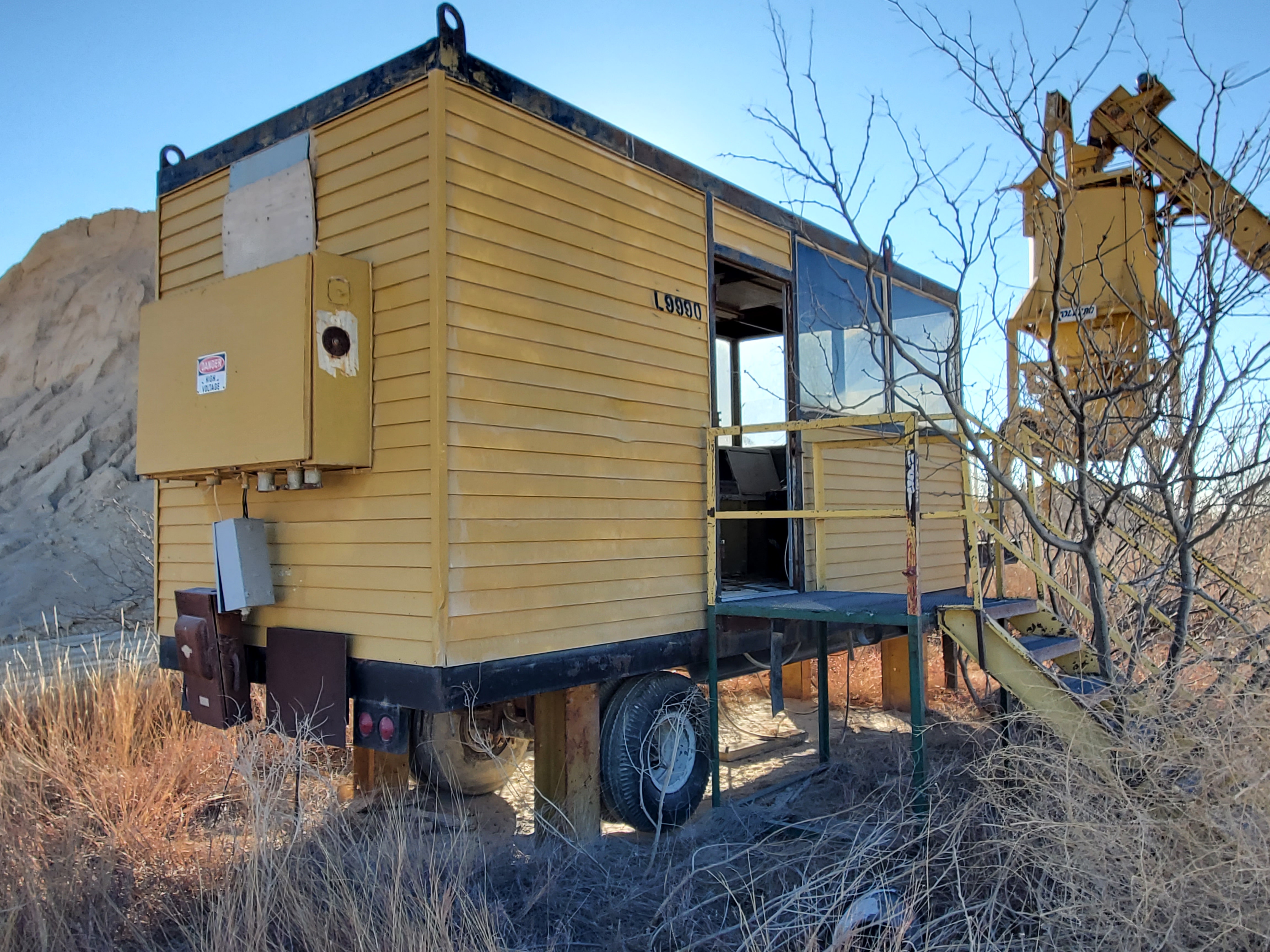

CONTROL HOUSE: The portable, nominal 10’ X 15’ single level, all steel control house has double pane tinted windows.EZ Blend controls manage the plant. This unit is mounted to a trailer with energy center.

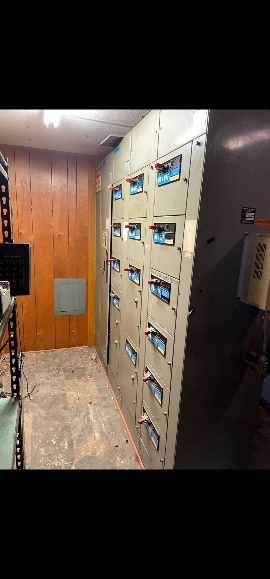

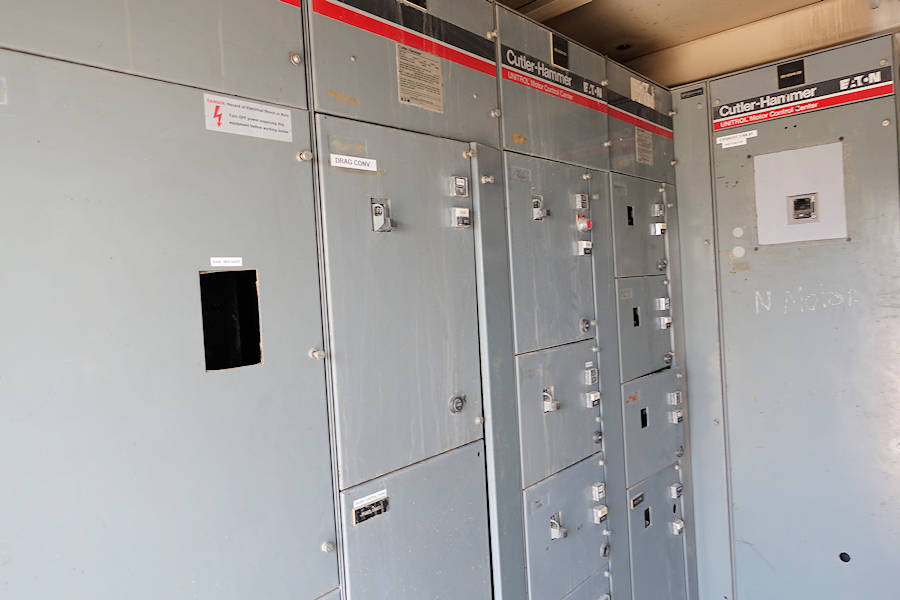

ENERGY CENTER: (PEC C#H) **The individually bucketed Cutler-Hammer motor controls are in a separable building starters for the plant.
The MCC is then located on a stand-alone on CH frame.
(There is also a stand-alone 100 kw night time Generator)
This plant will need repair. The Drum is missing a Axle, The plant will need some new wire. Also a Burner Blower and a Hot Oil Heater.
Gencor Model 200 Skidded Ultradrum Ultra II-70 Oil/Gas Burner Four (4) 20 HP Drives 15 HP Blue Smoke Capture System Remote-Controlled Calibration Feed Chute with Vibrator 4' x 10' Double Deck Aggregate Vibrating Screen with Total Remote Bypass, 10 HP Drive 24'' x 60' Skidded Scale Conveyor, 10 HP Drive Gencor Model CFS-85 42,059 CFM Skidded Baghouse 495 Elliptical 7'2'' Bags 8,549 Sq. Ft. of Cloth 4.92:1 Air-to-Cloth Ratio Model 402-BCS Exhaust Fan with 150 HP Drive Primary Collector Mounted Over Drum
Condition Notes: PARTIAL PLANT. Built in 1999, went into service in 2000. Low tonnage run through it. On ground. PARTIAL PLANT. Built in 1999, went into service in 2000. Low tonnage run through it. On ground. Some photos included are from when the complete plant was standing. Not all components shown in the background of the photos are included with the partial plant, please reference description.
Manufactured in 1985 (Drum re-built in 2019) New Controls in 2019
ASTEC 300 TPH portable drum mix plant with the following components:
NOTES: Plant was purchased in 2019 There were a good amount of spare and new parts included in the purchase, including a new chain for the drag. From 2019 to 2021 the plant was assembled and prepared to run. The new (2018) Stansteel control system was also installed in 2019. Plant last run and produced asphalt in December 2023 when it was replaced by a new ADM plant. Plant was fully operational until project was completed in 2023. Trunnions and drum tires were installed new in 2023.
No AC Tanks and No Silos Currently down on the ground, staged for loadout.
Semi Portable Cedarapids 8828 (Non Recycle Plant)
Cedarapids Drum: Model 8828, SN 335903 Portable 7'.3" x 28' Virgin Drum "No Recycle Collar" , Flights in Good Condition, Shell in Good Condition AVERAGE Thickness .400. The tires and trunnions look good. The 1999 AF-60 Burner is set up to run oil (Diesel). The unit is on a Tri Axle Frame with Hydro Levelers Astec Pulse-Jet Baghouse: Pulse-Jet Stationary Baghouse with 864, 5" x 10' Bags equals 11,303 SQFT of cloth at 5.1 is 57,645 Acfm with a 200 hp motor on the fan. There is a soft start next to operate the fan. Single Auger Discharge and Pneumatic Dust Blower to Deliver Dust To The Drum. 50 Hp Screw Compressor Cold Feed: Five (5) Bin Stationary Coldfeed System. 9' x 11' Bins with 24" x 8' (NEW) A.C. Motors and Dodge Reducers. A 24" Side Walkway Around the Top of the Bins with a Ladder for Access. A 24' x 20' Channel Conveyor Feeds the Scalping Screen. Screening: A Pro Quip Model 281 SD Single Deck 3' x 8' Screen with a 30" x 60' Incline Lattice Weigh Bridge Conveyor Feeds the Drum. A.C. System: 2 Skidded A.C. Tanks 20,000 Ea (One Is Hooked Up, One is Not) are Coiled and Heated by a CEI 1000A Oil Fired Hot Oil Heater, A 3" Metering Skid included with a Electric Pre Heater for The Burner. A 10,000 Vertical Fuel Tank for the Diesel Storage. ASPHALT STORAGE: Bituma-Stor Portable Silo Package (Model 100T-138-227-78-TA) A 300 TPH Portable Heated Drag with a Single Chain 24" Slats. Duel Side Walk Ways and a Tandem Axle Carrier. One Portable (Missing Axle) 100 Ton Insulated and Skinned Reject Silo is Provided For Mix Storage. A 10' x 80' Pittless Scale is For Material Weigh Out. A 15 hp compressor is provided for silo load out. Control Systems: A 360 Single Level Stationary Control House. The Controls are SYSTEMS with Manual LCD Back Ups, Gencor Gen III Burner Controls and NEW A.C. INVERTERS for the Cold Feed System. The Control House is Elevated with the MCC Underneath in a Building.
The plant is complete with updated above ground wiring (Some Wire has been stolen).
(Mostly) Portable 150tph-175tph Drum Plant YEAR 1980
CMI DRUM PF 7’x 32’ GEAR DRIVE 50 HP MOTOR, 4-TRUNNIONS, RAP COLLAR, REJECT CHUTE, TRIPLE AXLE, SHELL NEEDS RELINING IN THE FRONT AND FLIGHTS ARE IN POOR CONDITION STAR-JET SJO 450 COMBO OIL / GAS BURNER WITH MAXION GAS TRAIN. SET UP TO RUN ON DIESEL
NO COLD FEED BINS
CMI INCLINE CHARGING CONVEYOR 30”X 60’ FEED CONVEYOR AND RAMSEY WEIGH BELT (SINGLE AXLE)
CMI DRAG SLAT CONVEYOR: (MODEL PD 106) 18"x 65’ (SINGLE AXLE) (FLOOR AND SLAT IN VERY GOOD CONDITION) CMI 100 TON SILO AND BATCHER (SINGLE AXLE) LOW PROFILE 70"

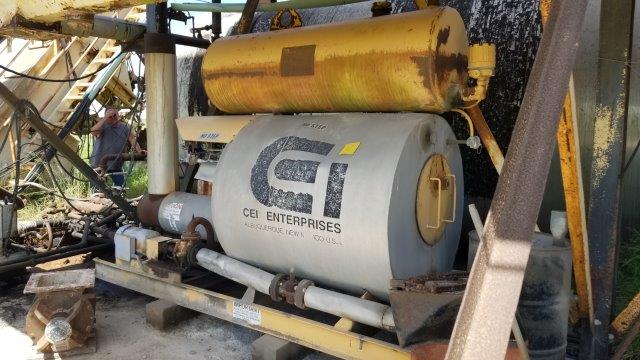

A.C. SYSTEM: 30,000 GAL SPLIT 20-10 COILED A.C. TANK WITH CEI 1500 HOT OIL HEATER (OIL/GAS) SET UP ON DIESEL WITH FUEL PUMP AND UNLOADING PUMP. (TANDEM AXLE)
DUST SILO: 400 BBL DUST SILO WITH 12" ROTARY AIR LOCK AND BLOWER KIT (NEVER HOOKED UP TO THE PLANT ALL THE PARTS LOOK TO BE INCLUDED) (SINGLE AXLE)
RECYCLE KIT: SINGLE BIN 8' X 14' (APRON CONVEYOR " MISSING SOME SLATS) 30" X 60' LATICES CONVEYOR WITH WEIGH BRIDGE (MISSING BELT) "STATIONARY" (NEVER HOOKED UP)
CMI DUEL ROOM CONTROL HOUSE: 280 DEGREE, PLUG IN NEMA CABLE, AIR -HEAT, SYSTEM COMPUTER CONTROLS, MANUAL START STOP STATION ASTEC STATIONARY BAG HOUSE: PULSE-JET BAGHOUSE, APPROX 45,000 ACFM WITH TOP REMOVAL BAGS, BACKWARDS INCLINE 150 HP FAN. SINGLE AUGER DISCHARGE. THIS PLANT WAS SHUT DOWN TWO YEARS AGO (OWNER DIED) FULL PORTABILITY ON EVERYTHING EXCEPT "RAP KIT, AND BAGHOUSE" THE DRUM WILL NEED SOME ATTENTION TO THE SHELL ON THE COMBUSTION SIDE AND WILL NEED SOME FLIGHT WORK, THE SLAT IS LIKE NEW " THE BAGHOUSE WAS NEVER HOOKED UP ON THE PLANT NEW OWNER BOUGHT FOR PLANT BUT NEVER USED" THIS PLANT IS NOW DOWN ON THE GROUND READY FOR SHIPMENT TO NEW LOCATION LOCATED IN SOUTH EAST GA.

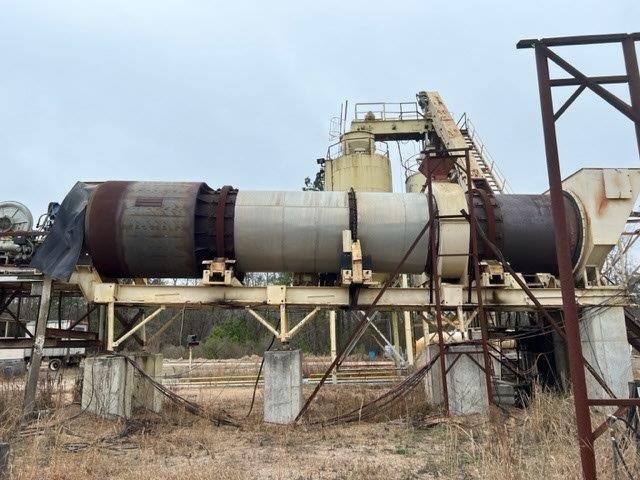

Drum: Make: CMI Parallel Flow Stationary 125hp Size: 8' x 42' Burner Gencor Astro Flame Dual Fuel 75hp Fan Fuel Preheater Almix

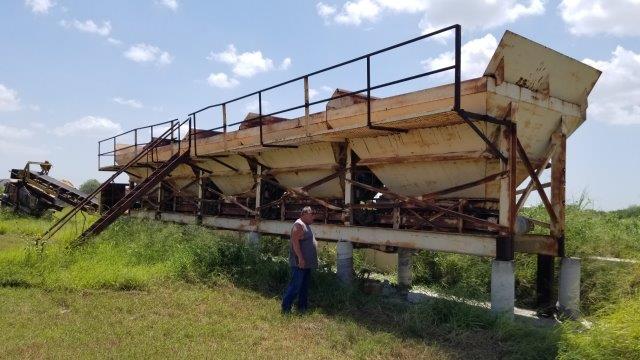

Cold Feed Bins: 3 bin cold feed 5hp AC Stationary Approx 9'W x 11'L x 7'Deep, 18'' Throats
Pugmill: Stationary 40hp 2 Shaft 4' x 7'
AC Tanks: 3 Tanks UNDERGROUND TANKS Direct Fired AC Pump on Pump 10hp Tach Feedback
Baghouse: Approx 40,000acfm Ratio: 5.5:1 7,121 sq foot of cloth Rows of Bags: 36 Bags in Row: 14 Bag Size: 6'' x 9'L Stationary Pulse-Jet 200hp Vane feeder 1.5hp 12"x12" Dust Blower - Gardner Denver 30hp Baghouse Compressor - Sullair 25hp Compressor 2 Ingersoll Rand 40hp
Silos:
Silo with Weigh Hopper
Stationary
Approx 100 Tons
Batcher
24'' x 72' Slat
Bituma Stor I-Beam Construction
75hp

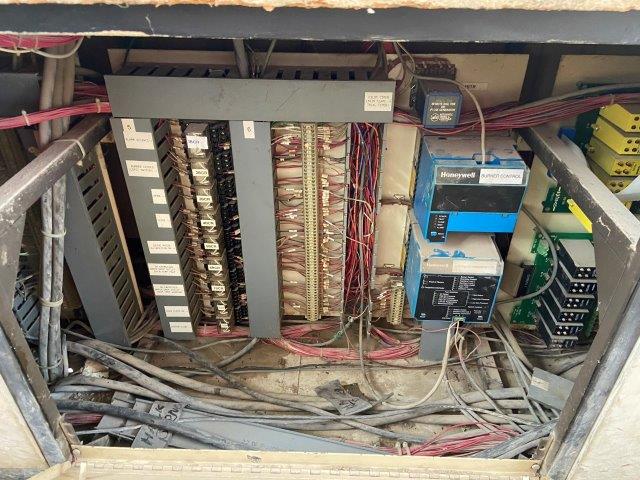

Control House and Controls: Control House - Block Building MCC - GE 8000 Al-Mix blending computer
Misc: Agg Scale 10hp Slinger 5hp

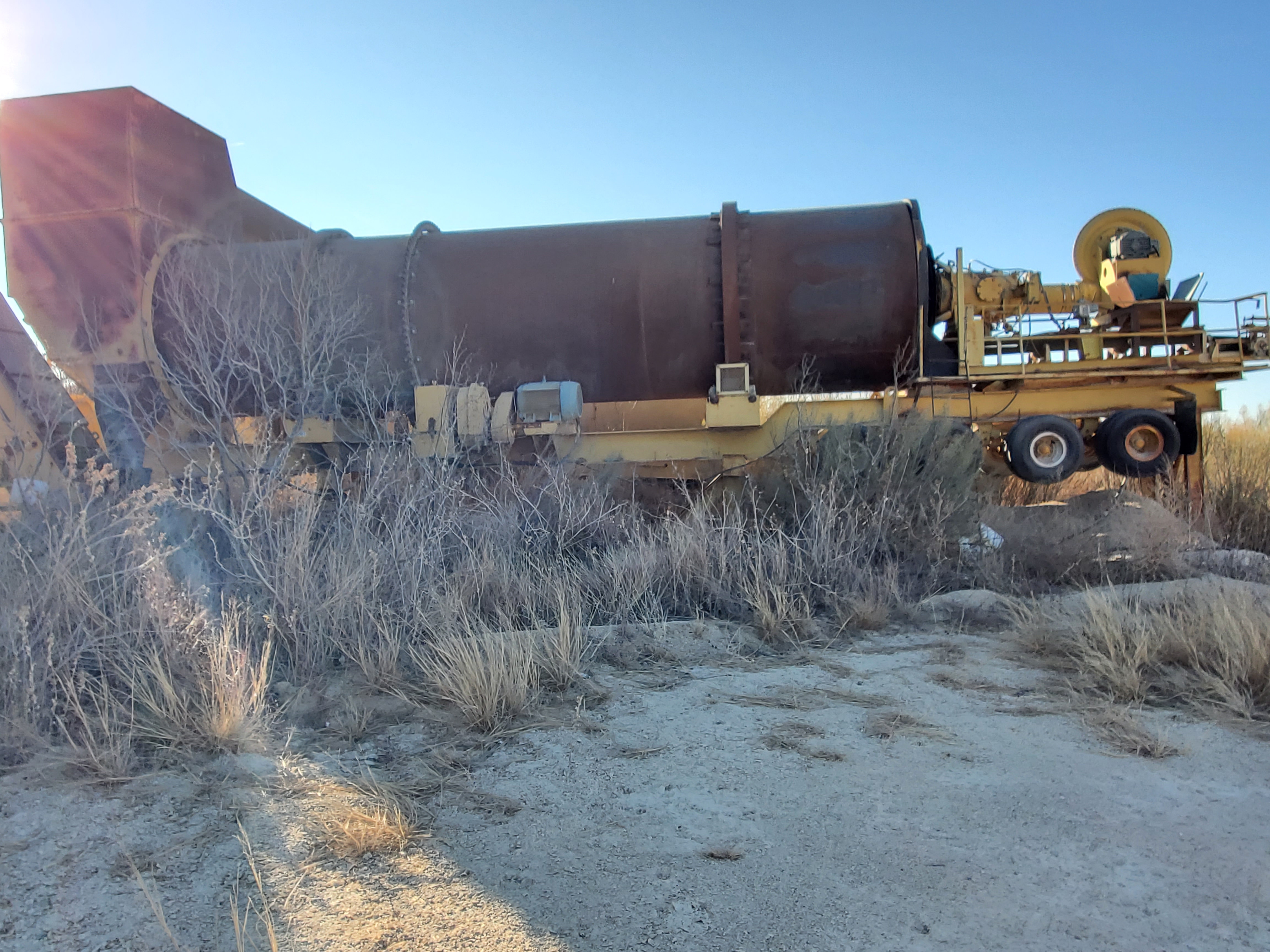

Drum: • CMI wishbone Drum • 3 Axle Portable • 7’ x 32’ Drum • Dodge TXT 8 30hp Drive • Newer Hauck SJO 360 Burner • Slinger Belt • 4’ x 8’ Single Deck Screen • Skid with Cable • 24’’ x 50’ Incline Lattice Weigh Bridge Conveyor, 1 axle . Thickness- .325/.353/.333/.306/.375/.236/.233/
Rap System: • CMI • PP 2-1200 • SN 187 • Portable, 1 Axle • Single bin • 8’ x 14’ Incline bin with Grizzley • Air Cannon • 60’ Incline Weigh Bridge Conveyor • 10’ Foldable Stinger • Nema Power Box with Cable • No Crusher or Screen • In Nice Condition Overall

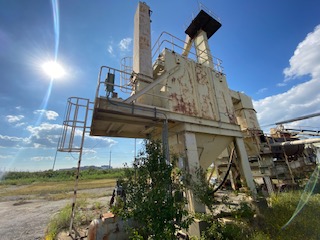

Baghouse: • Stansteel • SN 10-873 • 150HP Motor on Fan • Portable, 2 Axle (Tires Look Decent) • Doors Look Good • Cable Included • 40hp Quincy Screw Conveyor • 13’2’’T x 12’W x 63’L
Control House: • PEC UZ 03483 • Computer Controls • Updated Manual Controls • 280 Degree • Energy Center on Read • Missing Various Starters

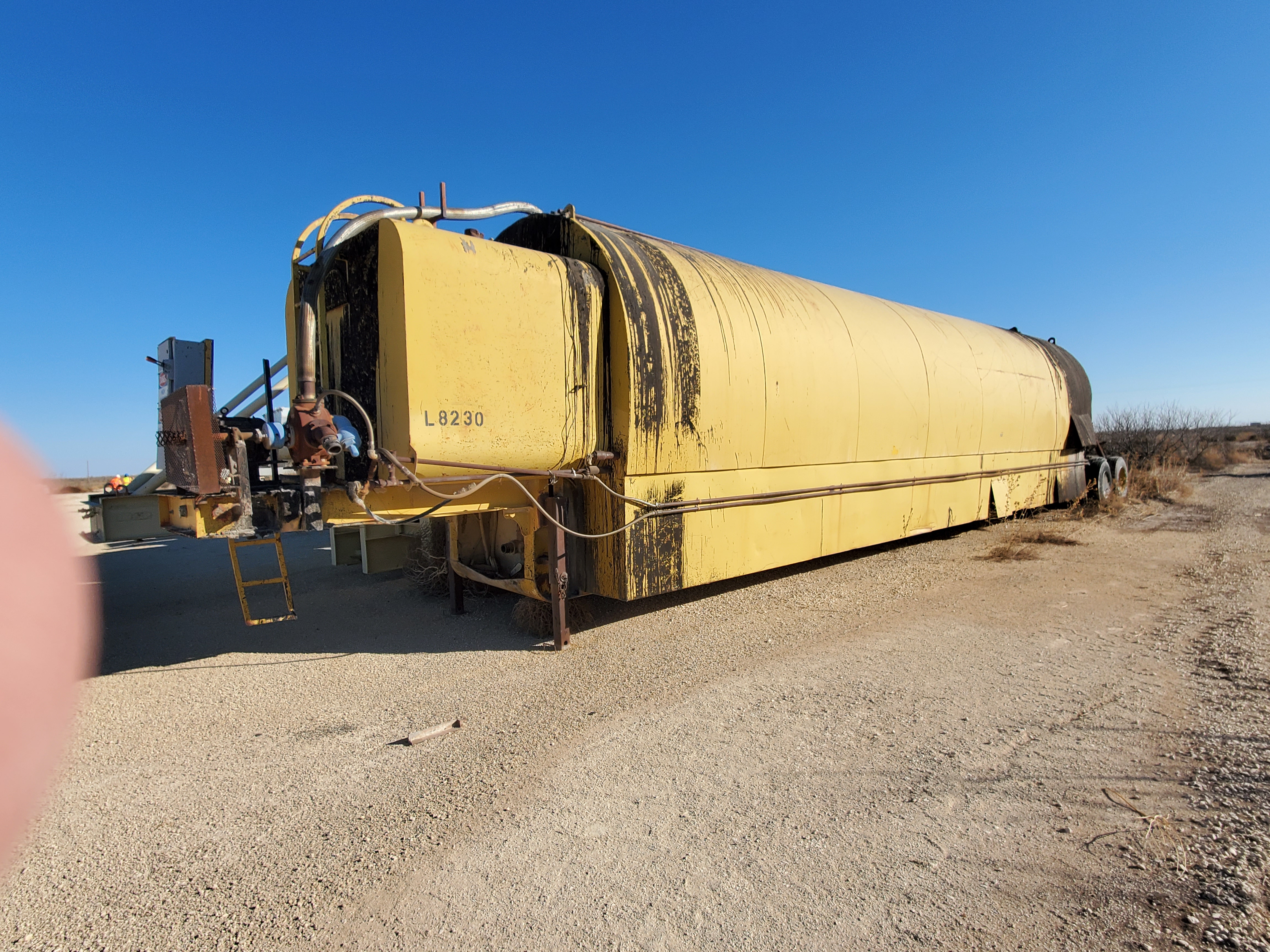

AC Tank • Portable Coiled • 2 axle • Empty • Metering skid on rear • E-580-1521-AC-0 • 20,000 Gallon Tank • Unloading pump on front • Whirl power blower burner • Oil fired • Front skin issues NO HEATER OR PREHEATER INCLUDED
Cold Feed Bins • Portable • 2 axle • Has Cable • CMI PF425 • SN 191 • 3hp DC Drives (Newer Motors) • 30’’ collecting belt and 20’ stinger • 8’ x 13’ Bins • 24’’ x 10’ Feeders • Bin Dividers • Relined • Missing a few rims/tires
SEB: • CMI • SE6535W • SN116 • Slat is Off Unit (Still Onsite, On Trailer) • 2 Axle • Missing All Cable for Erection • Has Air Tank, No Compressor • Lots of Grease on the Rear Axles • Inside Bin Looks Decent • Slat conveyor, 32’’ Double Chain Slats • Slats Look Decent • Reject Chute
Lime Silo: • 500BBL • 2 Axle • Binvent • Weigh Pod with Air Lock • Has 7 Holes. Has holes cut into it to remove lime, needs to be patched.
PLANT IS ON THE GROUND AND READY FOR LOADOUT, SILOS IN PHOTO DO NOT GO WITH SALE.
Conveyor: Portable Single Axle Incline Conveyor 24' x Approx 60' Belt Weighbridge

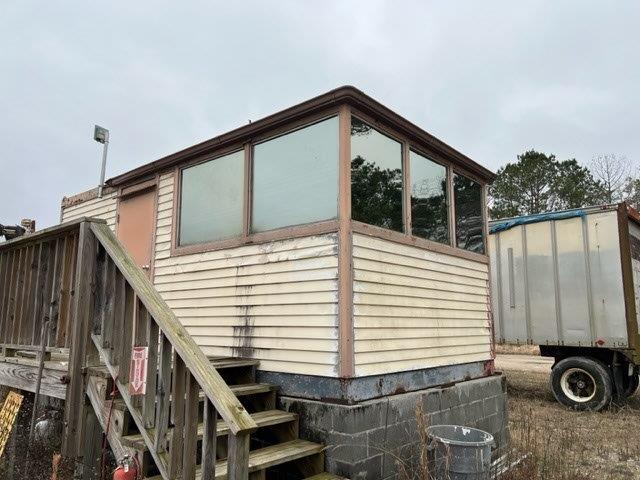

Control House: Stationary, Skid 10'.6'' x 18' Approx Systems Computer Controls Old Style Motor Control Center, Non-Bucketed Starters

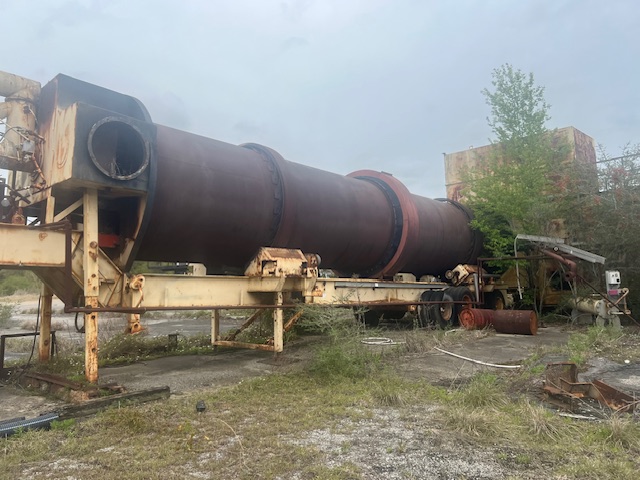

Drum: CMI PDM 732 SN: 136 Hauck Burner with Fan Wrap Collar 100hp Fan Portable, but Not Rims or Tires Patch on Combustion Zone

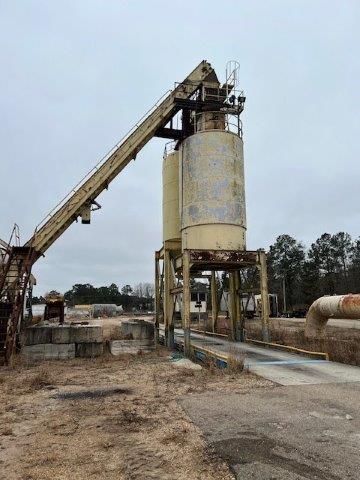

Silos: (1) Approx 100 Ton Silos (1) 85 Ton Silo Batchers Reject Chute 25hp Motor Heated Gates Traverse Up Top Stationary 11' x 75' Pittless Scales 3 Sections 200tph Slat Conveyor
Baghouse: Dustex SN: 80615 With 100hp Fan 5 Pieces of Ductwork Partially Portable 2 Axle 2 Compressors 2 Section (1 Section is Portable, Other is Not) 3 Augers
AC Tank: 25,000 Gallon Split Tank 10/15 SN: 25STT240 Portable Minor Skin Issues 2 Axle Has Lifting Eyes Metering Skid Coiled

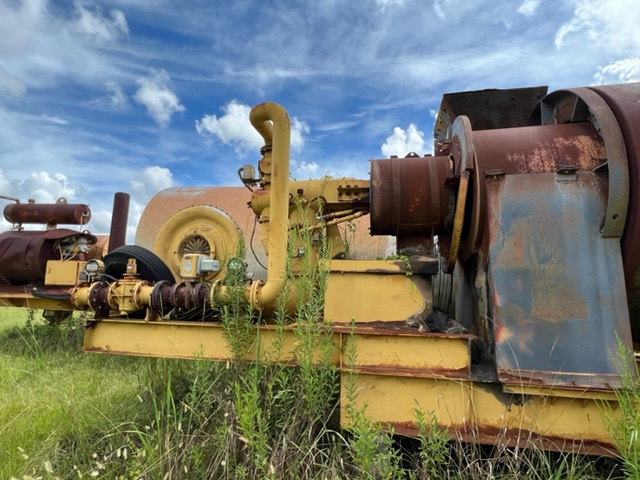

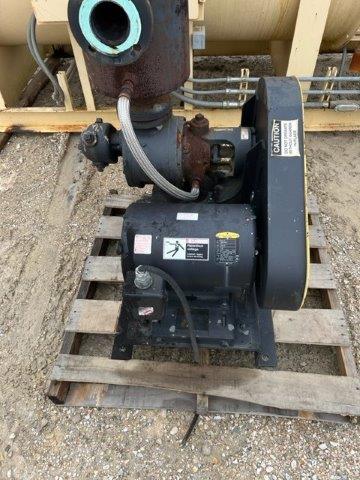

Unloading Pump: 3'' 15hp Unloading Pump

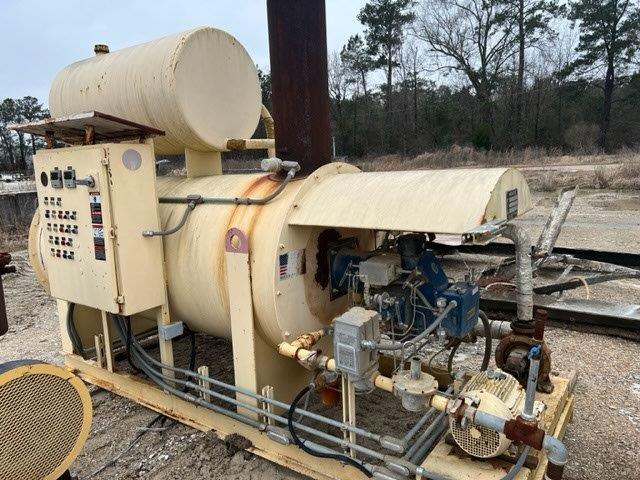

Heater: Heatec HC-120 Hot Oil Heater

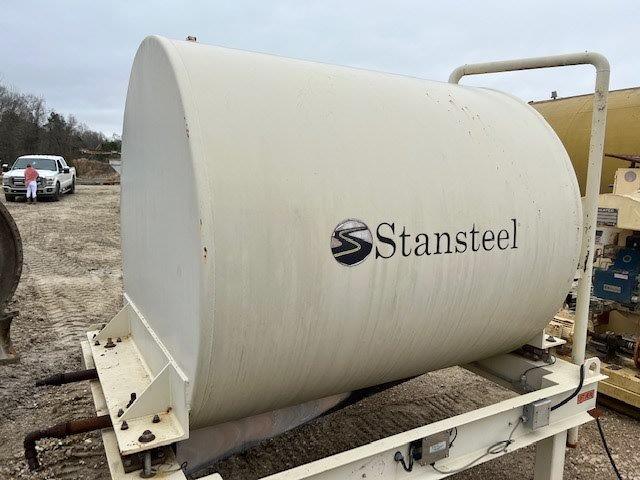

Calibration Tank: Stansteel Calibration Tank
Dust Silo: Todd Manufacturing SN: 080-3150 Weigh Pod Was Portable - Missing Axles Model #SA208-325P
Lab Equipment: Gilson Testing Screen - 10059, Model: TS1 Troxler On Wheels - Gyratory Compactor 5850, 2016 # Gilson Silent Sifter SS-21 Theralyne Oven Other Misc Lab Equipment Conveyors and Screen Deck:
Single Deck Screen - Skid Mounted -4' x 10' Incline Conveyor - Single Axle - Single Screen of Loadout Bottom 3 Misc Conveyors • White Conveyor (21'') • Bigger One (36'') • Smaller Yellow (24'') • NO WEIGH BRIDGE
Output: 80-120tph Stationary Parallel Flow
Drum:
Burner:
Cold Feed:
Conveyors:
Dust Control:
Asphalt Storage:
Liquid Asphalt Storage:
Control House:
Make: Barber Greene Output: 300tph Parallel Flow Stationary
Cold Feed:
Conveyor System:
Drum:
Rap System:
Baghouse:
Surge Storage Bins:
Tanks:
Controls:
Other:
CMI PARTIAL DRUM PLANT 325 TPH
CMI PORTABLE DRUM: 10'x 38' Parallel Flow Drum Straight Bore Drum (NO RAP COLLAR). Belly Cain Driven Dodge Reducer with 100hp motor. Slinger Belt Material Entry. Hauck 750 Burner. This unit sits on a Triple Axle Portable Frame.
CMI PORTABLE WET SCRUBBER: 65,000 ACFM Wet Scrubber with Twin 125 HP Motors On The Fan. Connecting Duct Work To The Drum And Fan Stack Included.
KOLBERG PORTABLE ASPHALT STORAGE SYSTEM: Kolberg 65' Double Chain Slat System. Slat Has Duel Walkways To The Drive Package, The Floor Is Non Heated. Slats Head And Tail Sprockets Look To Be In Very Good Condition. A Single Axle Kolberg 50 Ton Storage Silo With A Accumulative Weigh Batcher. The Insulated Silo Has A Built In Material Reject System. Hi and Low Bindicators on the Silo. Silo Sits on a Single Axle Configuration.
CMI PORTABLE CONTROL HOUSE: 280 Degree 8' x 20' Control House With Side Mounted HEAT AND AIR. Control House is Mounted on a Single Axle 5th Wheel Chaise.
Astec Portable Coater Type Drum and Mated Baghouse 250tph Partial Plant
PF Drum: Drum 8’x 45’ trunnion driven (4) 30hp motors (Reducers Missing "Dodge TDT 825") Recycle collar No Burner (Originally was fitted with Gencor AF-75) Slinger inlet 24’’ Hydraulic erect Triple Axle Configuration

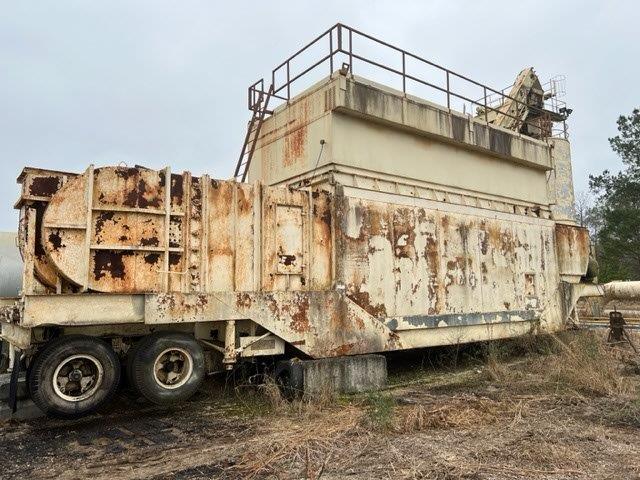

Baghouse: Mated Baghouse estimated 50,000cfm @6.1 896 4 1/2' x 8' Bags Exhaust Fan Series 40C Size 49 (Requires a 200 Hp Motor) 3 (Three) 9" Discharge Screws (5 HP Drives) 60 hp Single Shaft Coater Pugmill installed in Baghouse with new shaft arms and tips not installed Tube sheet worn, no baghouse doors, no bags or cages Exhaust fan needs replaced MC Center Mounted on Back of Unit. Hydraulic Erect Triple Axle Configuration
SEB: 65 Ton Surge Bin 24" Single Chain Drag with Reject Chute Cable Erect System Control House Mounted on Frame Triple Axle Configuration
